Adding Aftermarket Actuators

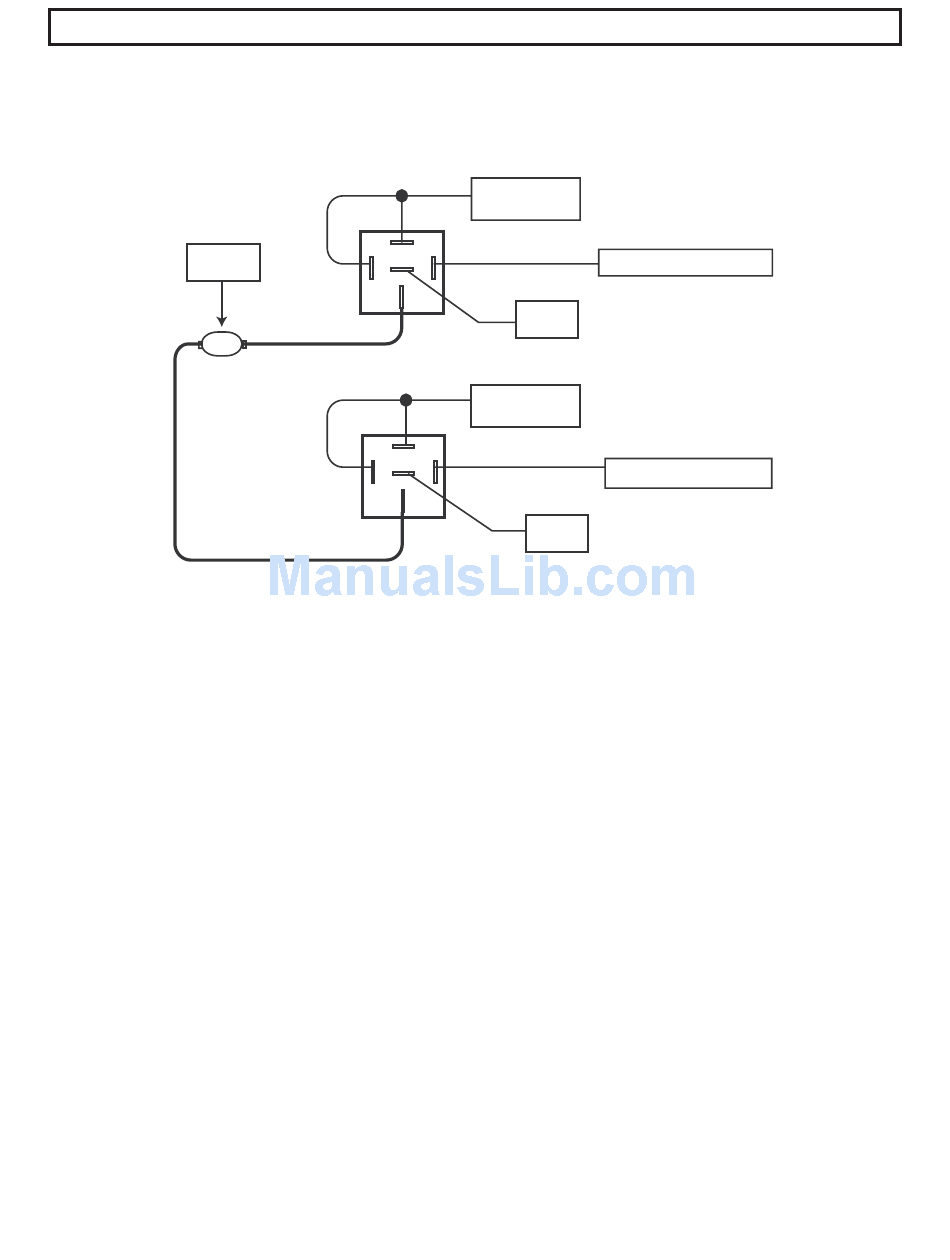

After installing aftermarket actuators, (not supplied). Connect the GREEN and
BLUE wires shown in the diagram below using (2) SPDT relays (not supplied).
Door Lock
Actuator
M
18
Fused +12 Volt
Battery Source
87
87a
85
86
30
Fused +12 Volt
Battery Source
87
87a
85
86
30
GREEN (-) Lock Output
Chassis
Ground
BLUE (-) Unlock Output
Chassis
Ground
ca6153 revA
