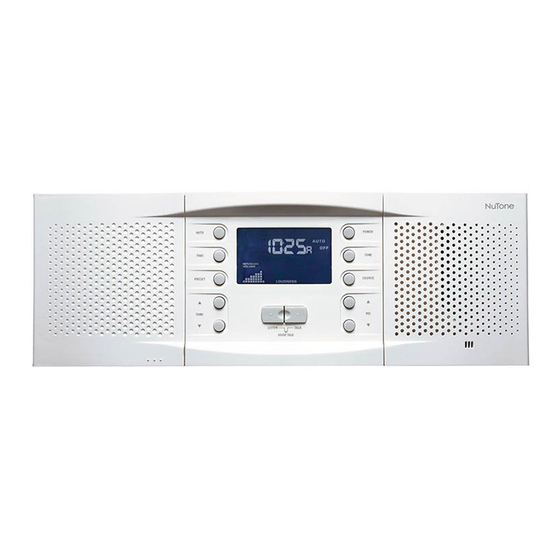

NuTone NM100WH Instructions Manual

NuTone NM100WH Instructions Manual

Nm100 series
Hide thumbs Also See for NM100WH:

Advertisement

Nm100 series
system iNstallatioN
read aNd save tHese iNstructioNs
cautioN
to reduce tHe risk of fire, electric sHock, or
iNjury to persoNs, observe tHe folloWiNg:
1. Read all instructions carefully before installing or using the
NM100 System.
2. The NM100 must be installed by a qualified dealer or installer,
and must conform to all local building and electrical codes.
3. For continued protection against risk of fire replace the fuse
in the power switch module only with the same type 3 Amp,
250 Volt fuse.
4. Adhere to all warnings on the NM100 and in these instructions.
Follow all operating and installation instructions.
WarNiNg
tHese iNstallatioN iNstructioNs are for use by
qualified persoNNel oNly. to reduce tHe risk of
electric sHock, do Not perform aNy serviciNg
otHer tHaN tHat coNtaiNed iN tHe operatiNg
iNstructioNs uNless you are qualified to do so.
• Do not attempt to service the NM100 yourself as opening
or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service
personnel.
The lightning flash with arrowhead symbol within an
equilateral triangle is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude to
constitute a risk of shock to persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the
literature accompanying the product.
• Locate the system away from heat sources such as radiators,
heat registers, stoves, or other heat producing products.
• Do not locate the NM100 master or remote stations in an
outside wall.
• Do not expose the NM100 to moisture. Doing so can create
fire or shock hazards and void the warranty.
• Do not place the NM100 master or remote stations in any
wall cavity with any other electrical wiring in the cavity.
• I nstall the NM100 system after application of the wall covering
material.
• Do not expose the outdoor remote station speakers to
significant water contact. The outdoor remote speakers are
weatherproof but not waterproof. Continuous direct water
exposure will cause system problems.
• Do not connect a remote or door station wire if you are
unsure of its terminating point. Connecting a door station to
a remote station may result in system damage.
• Do ensure that all rough-in instructions have been followed
before power is applied to the NM100 system.
• Do not splice cables. Splices are unreliable and defeat the
signal isolation properties of the cable.
• Do not attach devices unauthorized for use with this system.
Authorized devices include:
Audio components connected via a line level input
NC300 6-disc player
• If extra cables have been run for future speaker additions,
care must be taken to ensure these cables are not connected
to the NM100 master unit. Un-terminated cables (no station)
connected to the NM100 master may cause electrical
feedback that will damage the master station.
• Do not over-tighten the screws for the remote stations or
master as the plastic face panels may crack or strip out.
• Use only NuTone certified replacement parts and have
them installed by a NuTone dealer or installer. Unauthorized
substitutions can result in fire, electric shock, or other
hazards.
• Upon completion of any service or product repair, have
the dealer or installer conduct a safety check to ensure the
system is in proper operating condition.
• Use only a damp cloth to clean the NM100 master and remote
stations. Do not use liquid cleaners or aerosol cleaners.
cautioN: WiriNg
• A qualified electrician must run a 120V AC line to the NM100
retrofit transformers.
• Individual wire runs should not exceed more than 350 FEET
of wire from any single remote station to the NM100 master
or 1000 total feet for the entire system.
• Label all wiring runs. Connecting the wires to the NM100
master, remote station or door stations incorrectly may result
in system damage.
• Run a single cable from the master unit location to each
remote station and door station in a "home run" fashion. Do
not loop cable from one remote station to another.
• Do not staple cables. Staples cause shorts.
• Do not splice cables. Splices are unreliable and defeat the
signal isolation properties of the cables.
• Do not run electrical wires through the rough-ins. If you
encounter 120VAC wires running through a rough-in during
a retrofit you must have a qualified electrician rerun those
wires around the rough-in.
100
model Nm
WH
Page

Advertisement

loading
Need help?

Need help?

Do you have a question about the NM100WH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for NuTone NM100WH

  • Page 1 • Do not over-tighten the screws for the remote stations or master as the plastic face panels may crack or strip out. tHese iNstallatioN iNstructioNs are for use by • Use only NuTone certified replacement parts and have qualified persoNNel oNly. to reduce tHe risk of them installed by a NuTone dealer or installer. Unauthorized electric sHock, do Not perform aNy serviciNg...
  • Page 2: Installation

    It is critical that you determine the complexity of each retrofit the NM100 master unit. This will cause acoustic feedback. installation prior to developing the job estimate. It is hard to predict all the unique situations you will encounter in the field. • Do make sure all rough-ins are level and oriented as shown For this reason NuTone recommends you visit each retrofit in these instructions. site prior to developing a job estimate and ordering equipment. During this onsite visit it is recommended that you complete the iNstallatioN items listed below: • Determine the model number and manufacturer of the...
  • Page 3 If the existing system was not working prior to replacement, check each wire run between the remote stations and master for shorts and wiring integrity. If one of these remote station to master wire runs has a short, re-run that wire prior to installing the NM100. When replacing NuTone 3 wire cable runs, use NuTone IWA3 cable. When replacing NuTone or M&S 4 wire cable runs, use NuTone NW4S cable. Note: if you encounter 120VAC running through the existing rough-in, have a qualified electrician reroute the 120VAC around the rough-in.
  • Page 4 Black Black Intercom to use only NRS103WH remote stations in a 3-wire installation Control and NRS104WH remote stations in a 4-wire installation. All 6- Orange Ground wire installations use the NRS200WH remote stations. Please refer to appendix A for a diagram of which NuTone and M&S Green Green Yellow Speaker systems map to the 3, 4 or 6-wire (requires NM200 master) Output/Monitor configurations. Refer to the following two charts for the NM100 Mic Input wiring diagram: Connect the remote station to the existing wiring using the diagrams above. Place the remote station through the...
  • Page 5 Do not remove the existing outdoor remote station rough-in. The NuTone retrofit system is designed to fit into the existing enclosure. It is important to note that the outdoor remote stations are weather resistant not water proof. These stations should not be located in an area that is in direct line of water from sprinklers, rain or other devices such as power washers. Please use the NF300PWH frame in outdoor and high sun areas. The NF300PWH plastic is designed to withstand sun and resist fading. If a patio requires a surface mount application, use the...
  • Page 6 model Nm Page  iNstalliNg tHe Nm100 If the NM100 system has more than 9 remote stations, some remote selector switches will control two remote stations. The NM100 ships configured for a 3-wire retrofit system. If you Connect each Green wire (except patio/outdoor remote Green) are replacing a 4-wire system you must change the jumper setup to a single green terminal on the master. Each numbered Green on the NM100 master. The jumper change must be completed terminal corresponds to a remote station selector switch. Note: before any cables are connected. To change the jumpers just No more than 2 Green wires can be connected to any Green pull them off the existing connections shown in the next figure.
  • Page 7: Door Release Options

    These can also shield the antenna leads. The number and style of antenna leads will vary based on the intercom system being replaced. The NM100 system is designed to use the existing antenna. See next figure. Follow the steps below to attach a NuTone 300 Ohm twin lead antenna to the NM100. Run another single line of 18 gauge solid copper, twisted pair If the antenna has a plug on the end, cut the plug off approved low voltage cable from the NWH300 or NWH300C 1. Strip the 2 wire ends rough-in location to a gang box next to a 120VAC receptacle where the remote door/gate release power transformer will be 2. Connect the wire ends to terminal S1 and S2 on the antenna...
  • Page 8: Appendix A - Nutone Systems

    • NF200CWH – Replacing a master only system with an NM100 master and NC300 CD player (requires hole in wall to be made larger) • NF300RWH – Used on all indoor remote station replacements • NF300PWH – Used on all outdoor or high sun area flush mount remote station replacements • NRKS200PWH – Used on all outdoor surface mount remote station replacements • NF300DWH – Used on older NuTone door station replacements, not required for M&S replacements...
  • Page 9 Nm Page  appeNdix b - m&s The following NuTone systems map to either the IM-3303 or IM-4406 systems: systems *If existing system is loop or partially loop wired, it can only be converted to the IM5000 system. If the existing system is completely home run wired, the system can be converted to an NM200 system.
  • Page 10 model Nm Page 0...
