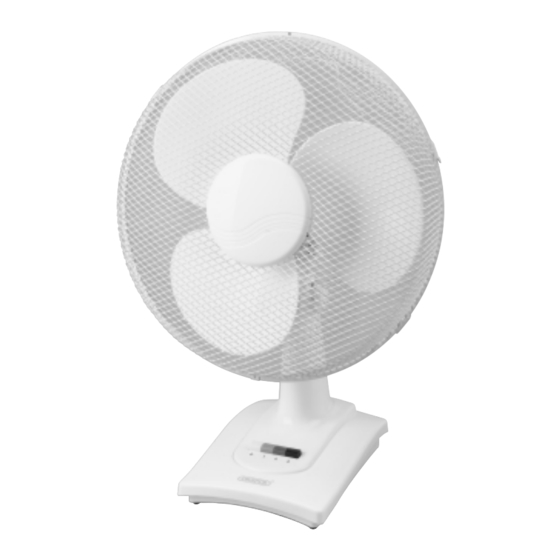

- Page 1 16" DESK FAN STOCK No.62396 PART No.FAN3 • INSTRUCTIONS • IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE SAFE AND EFFECTIVE USE OF THIS TOOL. 12/2001...
-
Page 2: Declaration Of Conformity
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you produce a dated receipt or invoice to verify your proof of purchase within the 12 month period. - Page 3 IMPORTANT: Draper Tools Limited recommends that this fan not be modified or used for any application other than that for which it was designed. If you are unsure of its relative applications do not hesitate to contact us in writing and we will advise you.
-
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS ASSEMBLING THE BASE: 1. Remove the screw from the base of the fan. 2. Align the locking lug of the button housing with the base. 3. Tighten the screw from the base to secure the button housing and base together. ASSEMBLING THE PROTECTIVE BLADE GRILLES:... -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS 1. To stop the fan head from oscillating, pull the clutch knob up. 2. To make the fan head oscillate, push the clutch knob down. 3. The airflow can be adjusted upward or downward by loosening the tilt adjustment knob and adjusting the vertical angle as desired. - Page 6 NOTES - 5 -...
- Page 7 NOTES - 6 -...
- Page 8 ©Published by Draper Tools Ltd. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
