IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
SAFE AND EFFECTIVE USE OF THIS PRODUCT.
INSTRUCTIONS
These instructions accompanying the product are the original instructions. This document is part of the product, keep
it for the life of the product passing it on to any subsequent holder of the product. Read all these instructions before
assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been designed,
and contains all the necessary information to ensure its correct and safe use. By following all the general safety
instructions contained in this manual, it will ensure both product and operator safety, together with longer life of the
product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper Tools
policy of continuous improvement determines the right to make modifications without prior warning.

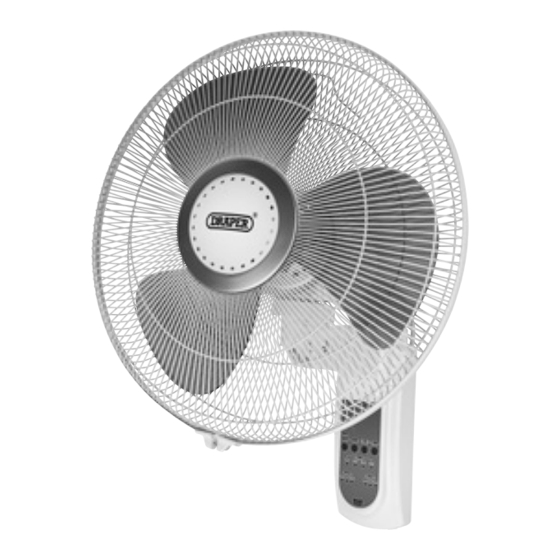

16" Remote
Controlled
Wall Mounted Fan
74842 - FAN7B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Draper Remote Controlled Wall Mounted Fan
Summary of Contents for Draper Remote Controlled Wall Mounted Fan
- Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.
-
Page 2: Title Page
Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact. -
Page 3: Table Of Contents
CONTENTS 2.1 CONTENTS Page content Page TITLE PAGE INTRODUCTION ....................2 REVISION HISTORY................... 2 UNDERSTANDING THIS MANUAL ..............2 COPYRIGHT NOTICE ..................2 CONTENTS CONTENTS ......................3 GUARANTEE GUARANTEE ..................... 4 INTRODUCTION SCOPE ....................... 5 SPECIFICATION ....................5 HANDLING & STORAGE ................... 5 HEALTH &... -
Page 4: Guarantee
This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period. -
Page 5: Introduction
INTRODUCTION 4.1 SCOPE Wall mounted fan for circulating air, ideal for use in and around the home, office or workshop. 4.2 SPECIFICATION Stock No..........................74842 Part No..........................FAN7B Rated voltage ........................ 220-240V Rated frequency........................50Hz Rated input..........................55W Diameter Ø ..........................16" Speed Settings ........................... -
Page 6: Health & Safety Information
HEALTH & SAFETY INFORMATION 5.1 GENERAL SAFETY INSTRUCTIONS WARNING: Please read the following instructions carefully, failure to do so could lead to serious personal injury. INSTRUCTIONS: Drpaer Tools Limited recommends that this fan is not to be modified or used for any application other than that for which it was designed. -
Page 7: Technical Description
TECHNICAL DESCRIPTION 6.1 IDENTIFICATION (Fan body controls) (Remote control) Mode setting Swing button Speed On/off button Timer... -
Page 8: Unpacking & Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the tool. -
Page 9: Preparing The Fan
PREPARING THE FAN 8.1 ASSEMBLING THE PROTECTIVE BLADE GRILLES Front guard Rear guard nut Fan securing nut Rear guard Securing clip Motor shaft Fan blade Motor unit Unscrew the fan securing nut clockwise Fan securing nut (NOTE: fan securing nut has a reverse thread!) Tighten Tighten and the plastic rear guard nut... -
Page 10: Mounting To A Wall
PREPARING THE FAN 8.2 MOUNTING ON THE WALL The fan must be correctly installed before use. Caution: to prevent the fan from falling off, do not install it on walls that are unable to correctly support the weight and load of the fan unit. If in any doubt seek advice from an appropriately qualified person. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS 9.1 REMOTE CONTROL OPERATION. FIG. 7 ON/OFF KEY The key is for switching on the fan. The fan will be started at a low speed. Press this key again and the fan will be switched off. ◷TIMER KEY When this key is touched repeatedly or kept in pressed state, the fan timer will be set for continuous operation during increased steps of 0.5 hour to 7.5 hour in 15 steps. -
Page 12: Use Of Remote Control
OPERATING INSTRUCTIONS USE OF REMOTE CONTROL. Point the remote a the body of the fan and press the required buttons to operate. The remote will work up to approximately 5 meters from the body and up to a 30 degree angle right and left of the fan body. -
Page 13: Maintenance
MAINTENANCE 10.1 MAINTENANCE 1. Always unplug the fan from the power supply before cleaning. 2. All plastic components should be cleaned with a damp cloth. DO NOT spray with water/cleaning agents or immerse the fan unit in water. 3. WARNING: Ensure that any water and/or cleaning detergent DOES NOT enter the motor housing or switch mechanism. -
Page 14: Explanation Of Symbols
11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS WEEE Do not dispose of Waste Electrical & Electronic Equipment in with domestic rubbish Class II construction (Double insulated). -
Page 15: Disposal
12. DISPOSAL 12.1 DISPOSAL - At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •... - Page 16 NOTES...
- Page 17 NOTES...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 - Sales Desk: (023) 8049 4333 - General Enquiries: (023) 8026 6355 - Service/Warranty Repair Agent For aftersales servicing or warranty repairs, please contact the Draper Tools Helpline for details of an agent in your local area. YOUR DRAPER STOCKIST RDMC1116...
