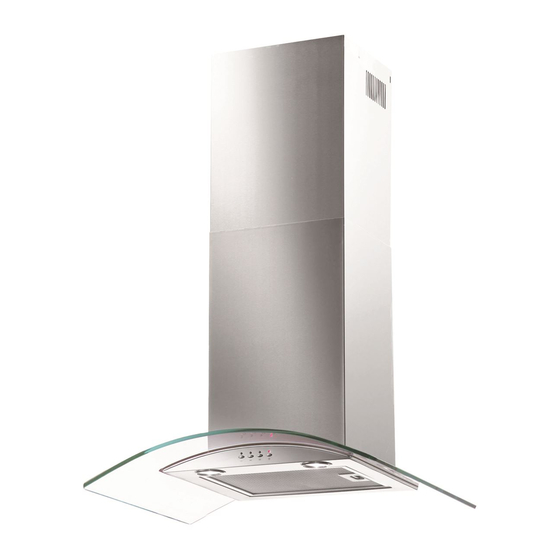

Baumatic BT7.3GL Instruction Manual
70 cm glass chimney hood
Hide thumbs
Also See for BT7.3GL:
- Instruction manual (28 pages) ,
- Instruction manual (26 pages) ,
- Instruction manual (32 pages)
Related Manuals for Baumatic BT7.3GL
Summary of Contents for Baumatic BT7.3GL
- Page 1 BT7.3GL/BT7.3BGL 70 cm Glass chimney hood waeady Get user manuals: See SafeManuals.com...
- Page 2 User Manual for your Baumatic BT7.3GL/BT7.3BGL Cooker Hood 70 cm Glass chimney hood NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Page Environmental note IMPORTANT SAFETY INFORMATION 5 – 7 Specifications of your cooker hood Using your Baumatic cooker hood 8 - 9 Cleaning your Baumatic cooker hood The grease filter Maintenance Removing and cleaning the grease filter Changing a light bulb... -
Page 4: Environmental Note
ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Technical Department. - Page 6 o The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTER! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
- Page 7 o Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed. o Note that the cooker hood removes odours from your kitchen, not steam. o Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including cleaning and...
-
Page 8: Specifications Of Your Cooker Hood
Specifications of your cooker hood Congratulations on purchasing a Baumatic Cooker Hood! DIMENSIONS: Width (canopy): 700 mm Depth (canopy): 500 mm Height (with chimney) 583 mm – 1083 mm DIMENSIONS OF CHIMNEY SECTION: 308 mm x 275 mm Your stainless steel Cooker Hood is fitted with:... - Page 9 To use your cooker hood o Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic’s installation instructions. o Find the control panel, which is located at the front right of the canopy.
-
Page 10: Cleaning Your Baumatic Cooker Hood
Cleaning your Baumatic cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE. Cleaning o Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth. -
Page 11: Maintenance
Maintenance Removing and cleaning the grease filter o First remove the grease filter by pulling down on the handle, and then pull it upwards away from the main body of the cooker hood. o Soak the grease filter in hot water and washing up liquid for about an hour. -
Page 12: Changing A Light Bulb
Changing a light bulb IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. o Remove the grease filter (as described on page 11). o Prior to touching the light bulbs ensure that they have cooled down. -
Page 13: Fitting The Carbon Filters
Fitting the carbon filter If the appliance is going to be used in recirculation mode then it is necessary to fit carbon filters. This will help to absorb unpleasant odours caused by cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY. -
Page 14: Installation
Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filter. -
Page 15: Before Beginning Installation
o As the colours of the wires in the appliance’s mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows: o The blue wire must be connected to the terminal marked “N” (neutral), or coloured black. -
Page 16: Installing Your Cooker Hood
o Rawl plugs are provided to secure the hood to most types of walls and ceilings. However a qualified technician must verify the suitability of the materials, in accordance with the type of wall and ceiling. The wall and ceiling must be strong enough to take the weight of the hood. - Page 17 2) Position the hood against the wall that you are intending to install it on and mark the position of the support holes that are to be drilled (as shown in the figure below). 2a) The support screw holes are indicated by figure A in this drawing and the anchoring screw holes are indicated by figure B.
- Page 18 4) Insert rawl plugs into all of the holes that you have drilled. 5) Fasten the support screws halfway in, leaving them 10 mm out of the wall. 6) Hang the hood onto the support screws. 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood.
-
Page 19: Connecting To External Ducting
Connecting to external ducting 8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to a discharge outlet that is suitable for cooking vapours. - Page 20 Lift chimney section D upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurements of both sides of chimney section D on the wall with a pencil and then remove chimney section D. 1) Take the fixing bracket (E) and place it between the two pencil marks that you made in step 9.
- Page 21 12) Using an 8 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert rawl plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall. o Refit chimney section C to the hood and fix it onto the hood using the two screws that are supplied.
-
Page 22: Completing The Installation
Completing the installation If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. See the “Fitting the carbon filters” section on page 13. The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood. -
Page 23: Troubleshooting
Troubleshooting IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Baumatic Service Department, please refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly. - Page 24 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance when it is delivered.
-
Page 25: Contact Details
Republic of Ireland 01- 6266 798 Czech Republic Baumatic CR SPOL. S.R.O. 46215, Librec United Kingdom The Czech Republic Baumatic Ltd., Baumatic Buildings, +4204 8357 7200 6 Bennet Road, Reading, Berkshire www.baumatic.cz RG2 0QX United Kingdom Germany Baumatic GMBH Sales Telephone... - Page 26 Get user manuals: See SafeManuals.com...
- Page 27 Get user manuals: See SafeManuals.com...
- Page 28 28 28 Get user manuals: See SafeManuals.com...
