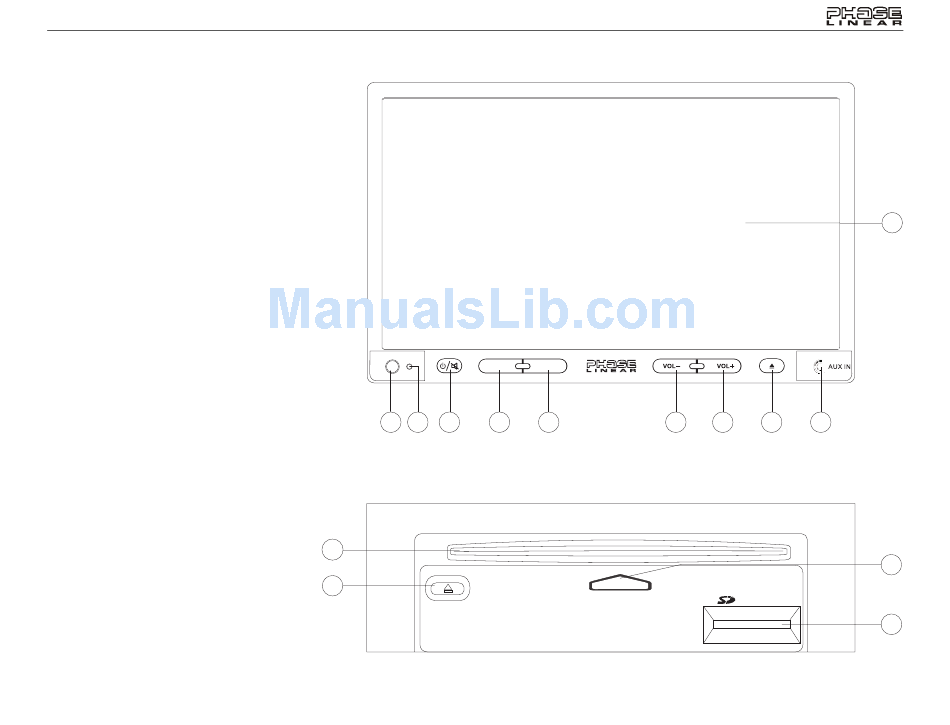

CONTROLS AND INDICATORS

1. POWER/MUTE
Press to turn the unit on. Press and hold to turn the unit off.
When on, press to silence the receiver. Press again to
resume the previous volume level.
2. SRC
Press to select playing mode (SD, AV IN, DISC, Tuner).
3. VOL–
Press to adjust the volume lower.
4. VOL+
Press to adjust the volume higher.
5. OPEN/EJECT
Press to activate the automatic mechanical system and move
the TFT monitor down to reveal the CD and SD Card slots.
Press again to close the TFT.
Press and hold to view the on-screen tilt controls.
6. DIM
Press repeatedly to dim the TFT screen or return to the
brightness setting specified in the Setup menu.
7. A/V AUX IN
8. IR Remote Control Receiver
9. RESET
Press to reset system settings to factory default.
10. TFT Display
11. Disc Slot
12. Disc Slot Indicator
13. EJECT Disc
14. SD Card Slot
