UV8020
CAUTION! Be careful not to damage the car wiring.
5. Complete wiring as illustrated in the wiring diagram on
page 3. Once the wiring is complete, reconnect the
battery negative terminal. If there is no ACC available,
connect the ACC lead to the power supply with a switch.

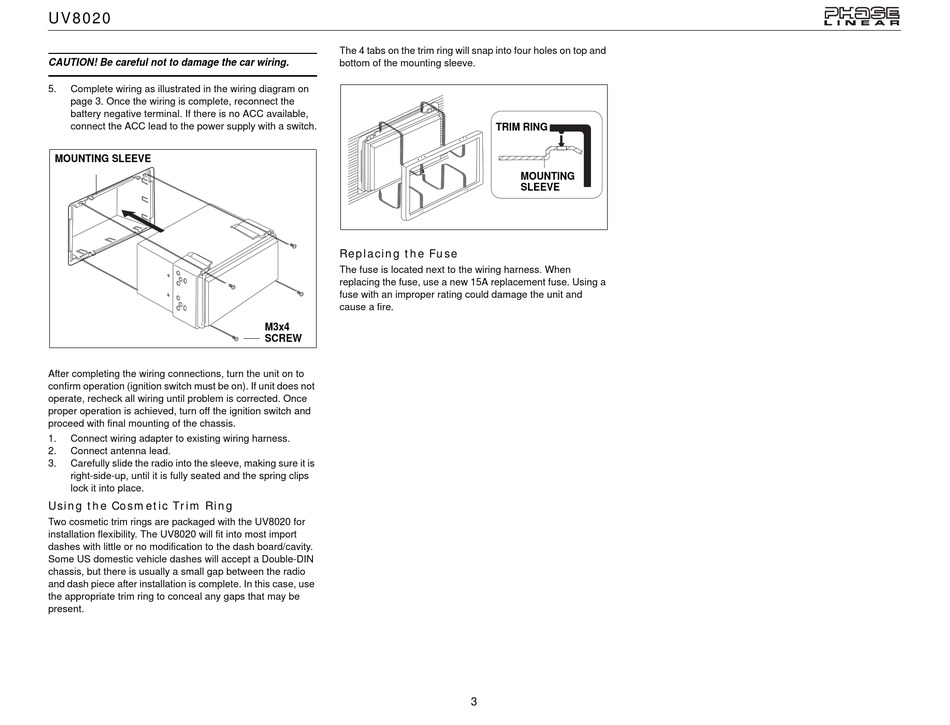

MOUNTING SLEEVE

After completing the wiring connections, turn the unit on to
confirm operation (ignition switch must be on). If unit does not
operate, recheck all wiring until problem is corrected. Once
proper operation is achieved, turn off the ignition switch and
proceed with final mounting of the chassis.
1. Connect wiring adapter to existing wiring harness.
2. Connect antenna lead.
3. Carefully slide the radio into the sleeve, making sure it is
right-side-up, until it is fully seated and the spring clips
lock it into place.

Using the Cosmetic Trim Ring

Two cosmetic trim rings are packaged with the UV8020 for
installation flexibility. The UV8020 will fit into most import
dashes with little or no modification to the dash board/cavity.
Some US domestic vehicle dashes will accept a Double-DIN
chassis, but there is usually a small gap between the radio
and dash piece after installation is complete. In this case, use
the appropriate trim ring to conceal any gaps that may be
present.
The 4 tabs on the trim ring will snap into four holes on top and
bottom of the mounting sleeve.

Replacing the Fuse

The fuse is located next to the wiring harness. When
replacing the fuse, use a new 15A replacement fuse. Using a
fuse with an improper rating could damage the unit and
cause a fire.
M3x4
SCREW
TRIM RING
OPTIONAL
MOUNTING
TRIM RING
SLEEVE
