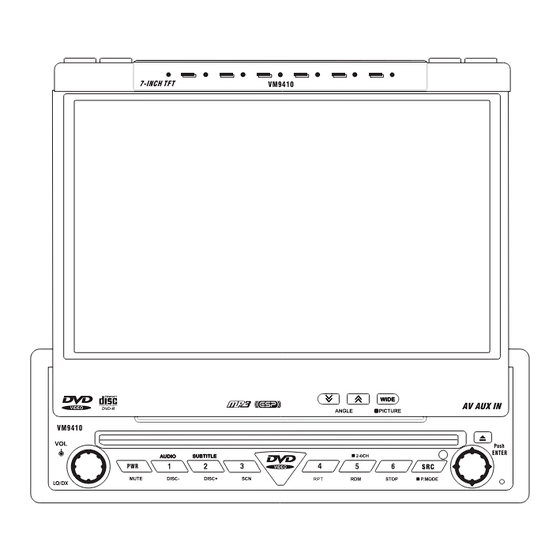

- Page 1 VM9410 Owner’s Manual 7-INCH TFT VM9410 AV AUX IN OPEN DVD-R VM9410 Push ENTER 2-6CH LO/DX...
-
Page 2: Table Of Contents
CONTENTS Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen VM9410 Mobile Multimedia AM/FM/DVD Receiver for maximum enjoyment. -
Page 3: Preparation
VM9410 PREPARATION Congratulations on your purchase of the Jensen VM9410 Mobile Multimedia AM/FM/DVD Receiver. It’s a good idea to read all of the instructions before beginning the installation. We recommend having your Jensen VM9410 installed by a reputable installation shop. -
Page 4: Installation
INSTALLATION Pre-installation Press the metal levers on both sides to remove the half- sleeve from the radio. Remove the transport screws. PREPARE RADIO 7-I NCH 7-I NCH AS/ PS VM 951 Push DIS P OPE N Push MO DE ENT ER Install the half-sleeve. - Page 5 VM9410 WIRING DIAGRAM External Power Amplifier Antenna Jack Antenna Car Phone FRO NT L+ FRO NT L- FRO NT R+ FRO NT R- REAR R+ REAR R- REAR L+ REAR L- CD Changer IP-BUS Cable / BLACK GREY CENTER BLUE SUB.W SURROUND REAR R...
-
Page 6: Controls And Indicators
CONTROLS AND INDICATORS Button Operation 1. OPEN Press the OPEN button (1) to activate the automatic mechanical system and move the TFT monitor into viewing position. 2. WIDE/PICTURE Press the WIDE/PICTURE button (2) to adjust the display aspect of the picture to one of three settings: Wide, Full or Normal. -
Page 7: Controls And Indicators
VM9410 CONTROLS AND INDICATORS 10. 3/SCN DVD Mode: Press once to start scan playback. TUNER Mode: Press once to play preset radio station channel 3. Press and hold to store the current radio station in preset channel 3. 11. 4/REP DVD Mode: Press once to start repeat playback. -
Page 8: Controls And Indicators
CONTROLS AND INDICATORS LCD Display/Indicators 1. Disc Indicator Illuminated when disc is loaded 2. DVD Playback Indicators (SCN/RPT/RDM/ALL) The following DVD playback indicators become Illuminated when the corresponding function is active: • SCN: scan playback • RPT: repeat playback • RDM: random playback •... -
Page 9: Front Zone Remote Control
VM9410 FRONT ZONE REMOTE CONTROL Table 1: Front Zone Remote Control Functions Button Name Ref # MENU Enters the main menu Turns on PBC when of the disc playing VCD TITLE Enters the title menu of Plays first ten seconds the disc of each chapter/title MUTE... - Page 10 Table 1: Front Zone Remote Control Functions Button Name Ref # Slow playback/slow Slow playback/slow rewind playback rewind playback ZOOM Zooms in/out on an Zooms in/out on an image image Displays set-up param- Displays set-up param- eters eters OPEN/ Opens/Closes the TFT Opens/Closes the TFT CLOSE monitor...
-
Page 11: Rear Zone Remote Control
VM9410 REAR ZONE REMOTE CONTROL Table 2: Rear Zone Remote Control Functions Button Name Ref # MENU Enters the main menu of the disc TITLE Enters the title menu of the disc MUTE Toggles on/off audio output AUDIO Switches the audio language for disc playback REPT Setup to repeat playback of each chapter/title/disc R.SRC... -
Page 12: Using The Tft Monitor
USING THE TFT MONITOR Open/Close TFT Monitor Open TFT Monitor Press the OPEN button (1) on the front panel or press the ) button (25) of the front zone remote control to activate the mechanism that moves the display panel into the viewing position. -
Page 13: Operating Instructions
VM9410 OPERATING INSTRUCTIONS Power On / Off Press the /MUTE button (1) to turn the unit on. The buttons on the front of the unit light up and “WELCOME” appears briefly in the LCD panel (17), followed by the current mode status. -
Page 14: System Setup Menu
SYSTEM SETUP MENU In “System Setup” mode, “ASP CONFIG” and “GENERAL SETUP” are available for adjustment. Setup can be performed by pressing the dedicated button on the remote control or on the front panel. For system settings, press the SYS SETUP button (31) on the remote control to enter the “System Setup”... -
Page 15: Exiting The System Setup Menu
VM9410 ASP Config Adjusting a Feature Enter the option field for the feature you want to adjust by pressing the button (18) on the remote or by pressing the ENTER (joystick) button (20) on the unit. A submenu appears in a second row with the selected option highlighted in light blue. -
Page 16: Tuner Operation
TUNER OPERATION Tuner TFT Display Current Radio Band Indicator Radio Frequency Indicator Clock Stereo Broadcasting Indicator Strong Local Signal Broadcasting Indicator Preset Radio Stations Front Zone Playing Mode Rear Zone Playing Mode User Defined Equalizer Level 10. Loud Setting Indicator 11. -
Page 17: Dvd Player Operation
VM9410 DVD PLAYER OPERATION NOTE: When properly installed, DVD video cannot be displayed on the main TFT screen unless the parking break is applied. If you attempt to play a DVD while the vehicle is moving, the TFT screen displays “PARKING” with a blue background. -
Page 18: Goto Search
playback. Depending upon the channel selected and your speaker setup, the audio output varies according to the following table. Table 9: Speaker Output Options Front Rear Center Sub- Speaker Setup Spkr Spkr Spkr Woofer 2CH mode Play 2CH audio in 6CH mode with Sur- round “Off”... -
Page 19: General Disc Information
VM9410 • Rear: AUX IN – “AUX IN” is the current playing source for the rear zone. “Surround” is the current playback audio encoding system. “DSP” indicates Digital Signal Processing. VCD Playback Information The following information is displayed at the top of the screen during VCD playback: •... -
Page 20: Dvd Setup Menu
DVD SETUP MENU In “DVD Setup” mode, “LANGUAGE”, “VIDEO”, “AUDIO”, “SURR SETUP”, and “RATING” (parental lock) are available for setup. This operation can be performed using the remote control or joystick controls. Accessing the DVD Setup Screen For system settings, press the DVD SETUP button (31) on the remote control to enter the “DVD Setup”... -
Page 21: Spk (Speaker) Config Menu
VM9410 Table 14: AUDIO Menu Features Setting Options Function REAR 15ms Adjust the time difference between the CTRL rear and front speakers to create a 12ms time delay between 3 and 15 millisec- onds, producing a more accurate audio effect. Return to previous menu SURROUND SETUP Menu SURROUND SETUP... -
Page 22: Cd Player/Changer Operation
CD PLAYER/CHANGER OPERATION Instructions for Insert/Eject, Play/Pause, Stopping Playback, Track Selection, Fast Forward/Fast Reverse, Scan, and Random Play are the same for DVD, CD, CD Changer and MP3 operation. Please see the DVD Player Operation section for information about these topics. NOTE: Upon inserting a disc with the TFT screen open, the disc and track title (if available), along with the track number and playing time appear on the screen. -
Page 23: Troubleshooting
VM9410 TROUBLESHOOTING Problem GENERAL Unit will not power on Radio Fuse blown Car battery fuse blown Illegal operation Remote control does not function Battery depleted Battery installed incorrectly No/low audio output Improper audio output connection Volume set too low Improper “MUTE” connection Speakers damaged Heavily biased volume balance Speaker wiring is in contact with metal part of car... -
Page 24: Error Messages
Problem Disc does not play back Disc is warped or scratched Disc is dirty or wet Laser pickup is dirty Incompatible disc is used Disc rating exceeds Parental Lock rating limit Disc region code is not compatible with unit Disc is inserted upside down Image blurred, distorted, or dark Disc is illegally copied PBC cannot be used during VCD playback... -
Page 25: Specifications
U.S.A: Audiovox Corporation, 150 Marcus Blvd., Hauppauge, NY 11788, 1-800-323-4815 CANADA: Call 1-800-323-4815 for location of warranty station serving your area. Audiovox Electronics Corporation 150 Marcus Boulevard Hauppauge, NY 11788 Technical Assistance: 1-800-323-4815 www.jensen.com © 2005 Audiovox v.022805...
