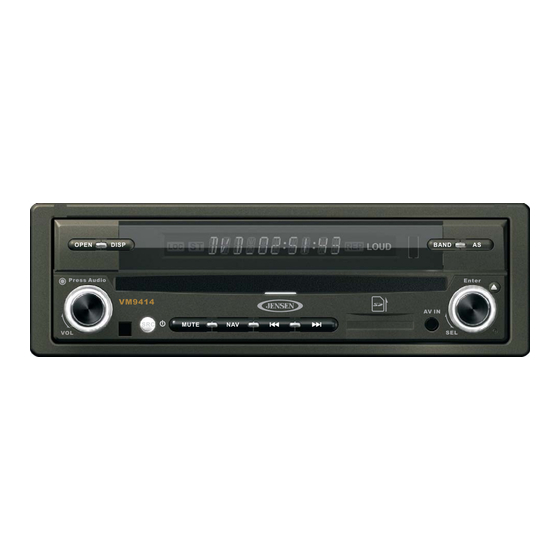

VM9414 Head Unit
Single DIN Sleeve
Wiring Harness
Parking Brake Sensor Extension Wire
Mounting Hardware
You will need these tools and supplies to install your VM9414:
•
Torx type, fl at-head and Philips screwdrivers
•
Wire cutters and strippers
•
Tools to remove existing radio (screwdriver, socket wrench set or other tools)
•
Electrical tape
•
Crimping tool
•
Volt meter/test light
•
Crimp connections
•
18 gauge wire for power connections
•
16 – 18 gauge speaker wire
WARNING! Never install this unit where operation and viewing could interfere with safe driving
conditions.
VM9414
What's in the Box
Tools and Supplies
1
Cosmetic Trim Ring
Remote Control with Battery
3.5mm to 3.5mm Media Adaptor Cable
Owners Manual

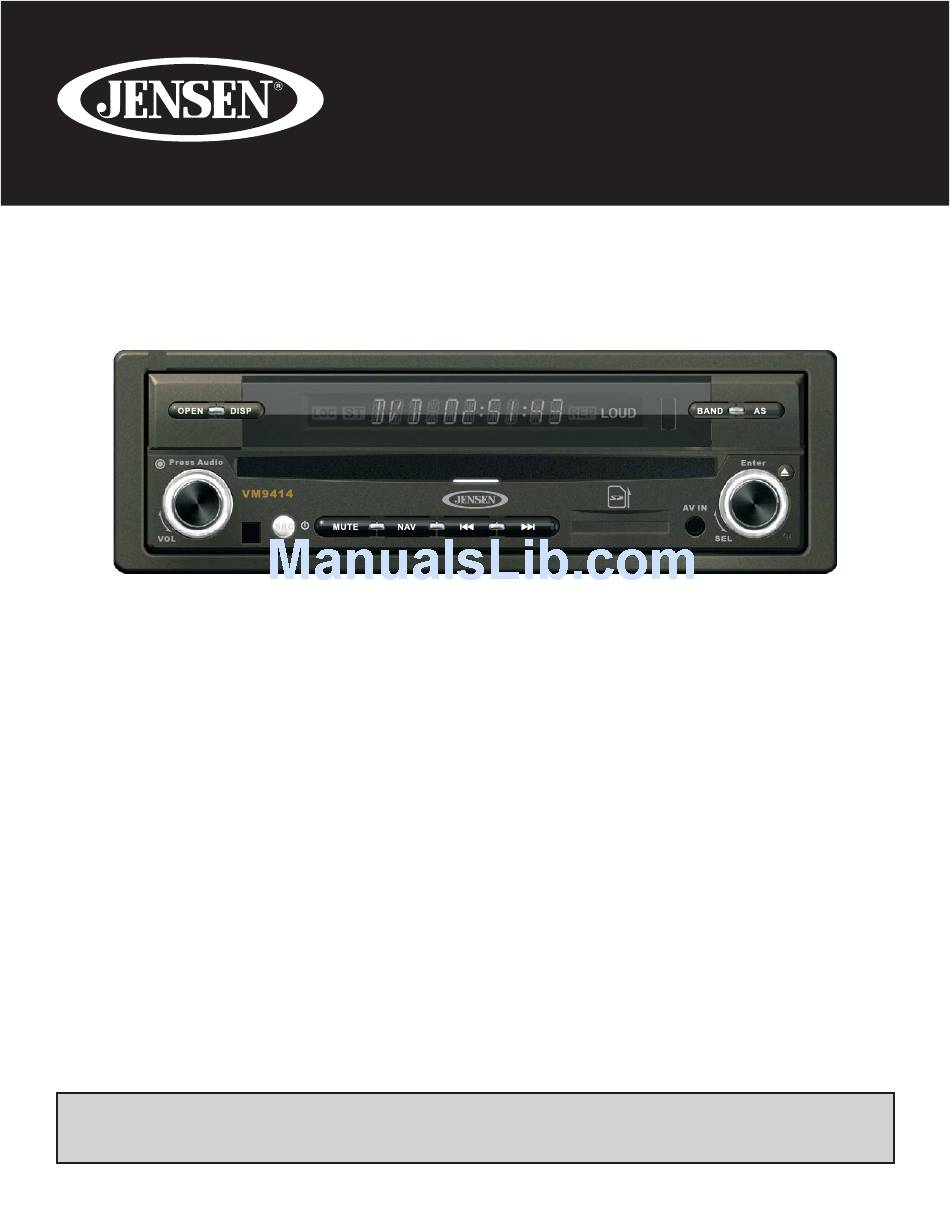

Installation Guide
Installation Guide
Advertisement
Related Manuals for Jensen VM9414
Summary of Contents for Jensen VM9414
-
Page 1: Tools And Supplies
VM9414 Head Unit Single DIN Sleeve Wiring Harness Parking Brake Sensor Extension Wire Mounting Hardware You will need these tools and supplies to install your VM9414: • Torx type, fl at-head and Philips screwdrivers • Wire cutters and strippers •... -
Page 2: Optional Equipment
To prevent a short circuit, be sure to turn off the ignition and remove the negative (-) battery cable prior to in- stallation. NOTE: If the VM9414 is to be installed in a car equipped with an on-board drive or navigation computer, do not disconnect the battery cable. If the cable is disconnected, the computer memory may be lost. Under these conditions, use extra caution during installation to avoid causing a short circuit. -
Page 3: Final Installation
NOTE: When replacing a fuse, be sure to use correct type and amperage to avoid damaging the radio. The VM9414 uses one 15 amp fuse, located in the black fi lter box in-line with the main wire harness. Final Installation After completing the wiring connections, turn the unit on to confi... -
Page 4: Wiring Diagram
USB and route the MediaLink USB to an accessible part of the dash area for easy connectivity. For occasional iPod use, keep an iPod cable in your glove box and use it to connect the iPod to the front USB connector. Need Help? For technical assis- tance, call the Jensen Antenna customer support line at 1-800-323-4815.
