XM 2500 SPOT
XM 2500 SPOT
User Manual Rel 1.0
GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XM 2500 Sport and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DTS XM 2500 Sport

Summary of Contents for DTS XM 2500 Sport

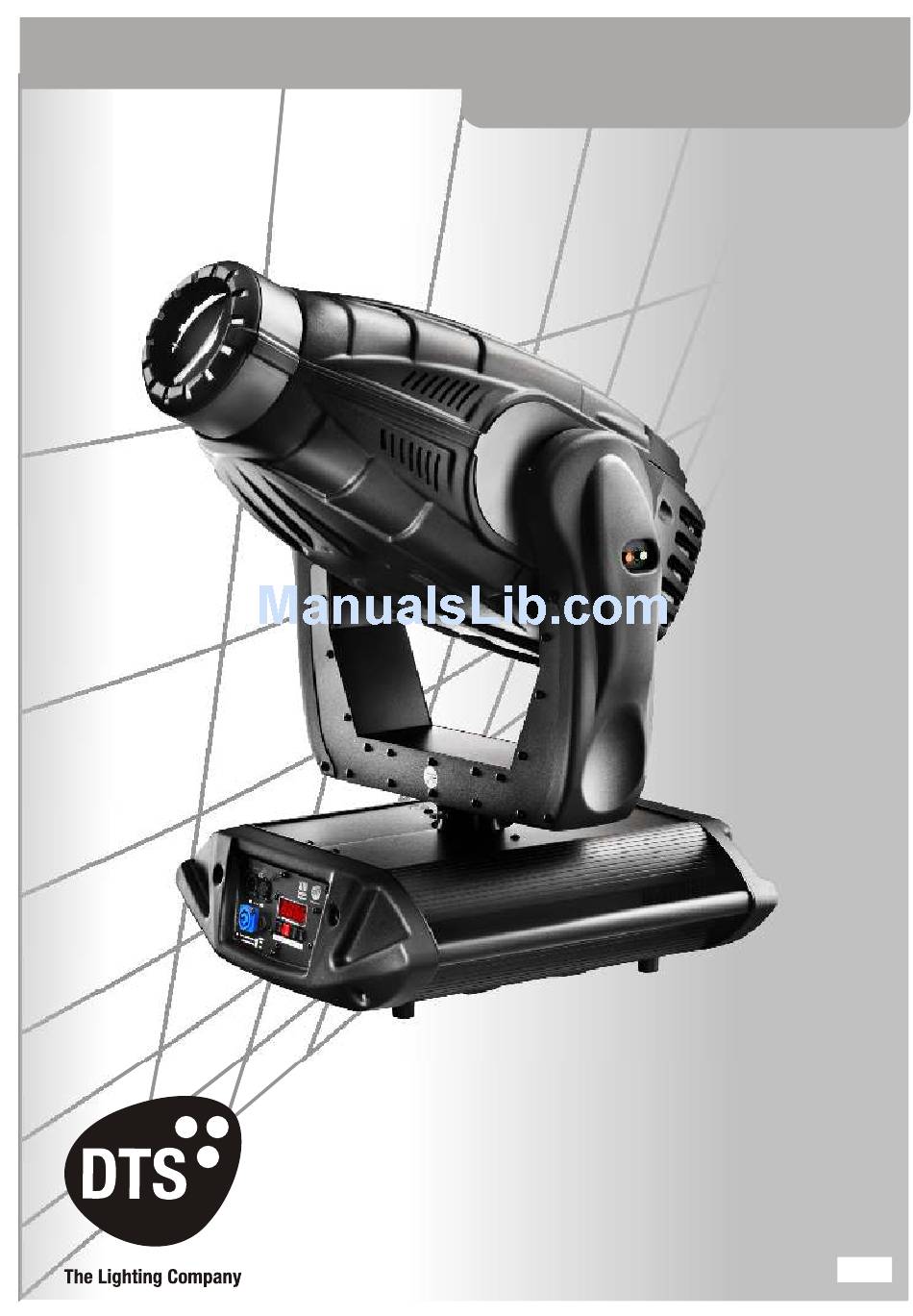

  • Page 1 XM 2500 SPOT XM 2500 SPOT User Manual Rel 1.0...
  • Page 2 DTS. DTS se reserva el derecho a aportar sin previo aviso cambios y modificaciones de carácter estético, funcional o de diseño a cada producto suyo. DTS no se asume responsabilidad de ningún tipo sobre la utilización o sobre la aplicación...

  • Page 3: Table Of Contents

    XM 2500 SPOT ARC 1200 INDEX: 1- TECHNICAL FEATURES 2- IMPORTANT SAFETY INFORMATION 2.1 Fire prevention 2.2 Prevention of electric shock 2.3 Protection against ultraviolet radiation 2.4 Safety 2.5 Level of protection against the penetration of solid and liquid matter 3- MOUNTING THE LAMPS 3.1 Lamp alignment 4- VOLTAGE AND FREQUENCY...

  • Page 4: Technical Features

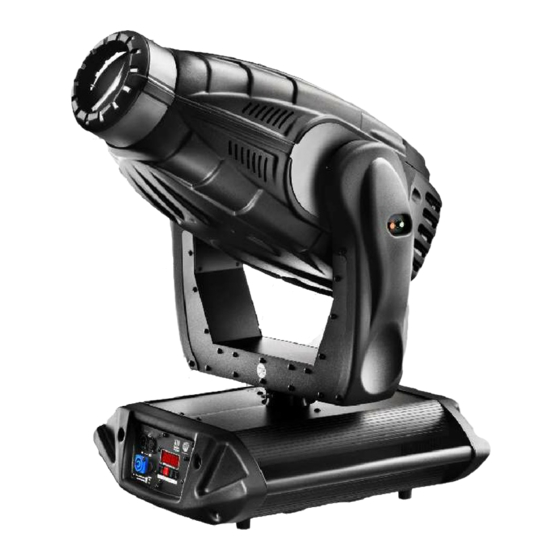

    XM 2500 SPOT ARC 1200 1- TECHNICAL FEATURES The XM 2500 Spot is fitted with a Philips MSR 1200/SA discharge lamp (GY22 lampholder base), with a colour temperature of 5,600 °K and a luminous flux of 96,000 Lumens. Duration is 750 hours, with replacement recommended before 1000 hours Other recommended lamps: Osram HTI 1200W/SE PP;...

  • Page 5: Important Safety Information

    XM 2500 SPOT ARC 1200 2- IMPORTANT SAFETY INFORMATION 2.1 Fire prevention: -XM2500 is fitted with a Philips 1200W MSR/SA lamp. -Other recommended lamps are: Osram HTI 1200W/SE PP; GE Lighting CSR1200W SA The use of any other alternative lamp is not recommended and will null and void the fixture's warranty. -Never locate the fixture on any flammable surface.

  • Page 6: Mounting The Lamps

    XM 2500 SPOT ARC 1200 3- MOUNTING THE LAMPS: Warning: Switch off the unit before replacing the lamp. Osram HTI 1200W/SE PP GE Lighting CSR1200W SA Philips MSR1200/SA Power 1200W Power 1200W Power 1200W Luminous flux 96,000 lm Luminous flux 105,000 lm Luminous flux 100,000 lm Colour temperature 5.600°K Colour temperature 5.400°K...

  • Page 7: Voltage And Frequency

    XM 2500 SPOT ARC 1200 4- Voltage and frequency The XM2500 E.B.(ELECTRONIC BALLAST) can operate at 190-245 VOLT 50 or 60 Hz. 5- Installation XM2500 may be either floor or ceiling mounted. For floor mounting installations, the XM2500 is supplied with four rubber mounting feet on the base.

  • Page 8: Mains Connection

    XM 2500 SPOT ARC 1200 Movement The projector has a maximum movement of 540° for Pan and 270° for Tilt. DO NOT place any obstructions in the path of the projector's movement. 270° 540° Risk of fire Each fixture produces heat and must be installed in a well-ventilated place. The minimum recommended distance from flammable material is 0.5m.
  • Page 9 XM 2500 SPOT Ensure that the conductors do not touch each other. Do not connect the cable ground to the XLR chassy. The plug housing must be isolated. Connect the mixer signal to the DMX IN projector plug and connect it to the next projector by connecting the DMX OUT plug on the first projector to the DMX IN plug of the second one.
  • Page 10 XM 2500 SPOT ARC 1200 DMX Addresses XM2500 can be used in two different modes: 30 or 18 DMX channels. If you want to use the XM2500 in 18 channels mode, select the 18 CH mode from the MODE menu and set the following addresses on the mixer: Projector 1 A001...

  • Page 11: Display Functions

    XM 2500 SPOT ARC 1200 8- DISPLAY FUNCTIONS DISPLAY DMX OUT DMX IN MAINS 190-245V ~ 50-60 Hz MENU ENTER DOWN DISPLAY FUNCTIONS The XM2500 display panel shows all the available functions . Using these functions, it is possible to change some of the parameters and add some functions. Changing the D.T.S. setting can vary the functions of the unit so that it does not respond to the DMX 512 used to control it.
  • Page 12 XM 2500 SPOT ARC 1200 8- DISPLAY FUNCTIONS GOBO1 ROT. CYAN MENU Up-Down ENTER Up-Down TEST MODE GOBO1 SHAKE MAGENTA Full test and single function test. GOBO2 TILT YELLOW DIMMER COLOR GOBO2 ROT. GOBO2 SHAKE SHUTTER FOCUS EFFECTS IRIS ZOOM EFFECTS ROT.
  • Page 13 XM 2500 SPOT ARC 1200 8- DISPLAY FUNCTIONS DISPLAY SOFTWARE (8 MOT PCB N°2) ENTER Up-Down MENU Up-Down SOFTWARE VERSION PAN-TILT SOFTWARE (PAN-TILT PCB) Electronic cards software version. HEAD MOT. SOFTWARE (8 MOT PC N°1) ENTER MENU Up-Down TEMPERATURE Head electronic thermic sensor AUTOMATIC FOCUS DISABLE ENTER MENU...

  • Page 14: Error Messages

    XM 2500 SPOT ARC 1200 9- ERROR MESSAGES ERROR: ENCODER PAN ERROR: ENCODER TILT ERROR: DMX ADDRESS ERROR: AUTO MODE INPUT ERROR: EEPROM DATA LOADER ERROR: RESET CIRCUIT LINE1 (CMY) ERROR: RESET CIRCUIT LINE2 (GOBO1 , COLOR) ERROR: RESET CIRCUIT LINE3 (GOBO2 , FOCUS , ZOOM) ERROR: RESET CIRCUIT LINE4 (EFFECTS , IRIS) ERROR: MAGENTA POSITION ERROR: CYAN POSITION...

  • Page 15: Hidden Menu

    XM 2500 SPOT ARC 1200 10- HIDDEN MENU For technical personnel only. To operate this menu: -Connect the projector to the DMX controller (DMX SIGNAL MUST BE CORRECTLY RECEIVED) Reset the XM2500 (reset from the MENU, not from the DMX controller!). While reset is running, press the MENU and ENTER keys at the same time.
  • Page 16 XM 2500 SPOT ARC 1200 ENTER Up-Down ENTER Up-Down ENTER ZOOM ALIGNMENT To align zoom ENTER Up-Down ENTER Up-Down EFFECTS ALIGNMENT To align effects wheel Up-Down ENTER Up-Down ENTER EFFECTS INDEX ALIGNMENT To align effects wheel index Up-Down ENTER Up-Down ENTER IRIS ALIGNMENT To align iris...

  • Page 17: Opening Up The Projector Housing

    XM 2500 SPOT 11- Opening up the projector housing It is possible to inspect the inside of the projector by removing the cover as indicated below. Attention REMOVE MAINS POWER PRIOR TO ACCESSING THE PROJECTOR’S INTERNAL COMPONENTS. 1) Loosen the screws which fix the side covers (photo 1 and 2) . 2) Once unscrewed, simply lift the covers to access the internal components (photo 3).

  • Page 18: Periodic Cleaning

    XM 2500 SPOT ARC 1200 13 Periodic cleaning Lenses and reflectors Even a fine layer of dust can reduce the luminous output substantially. Regularly clean all lenses and the reflector using a soft cotton cloth, dampened with a specialist lens cleaning solution. Fans and air passages The fans and air passages must be cleaned approximately every 6 weeks.
  • Page 19 XM 2500 SPOT ARC 1200 14- CONTROL MOTORS CAR Display 8 MOTORS PCB “1 Gobo1 (line 2) (BLACK) Magnetic Sensors ORANGE Line 1 Brown BROWN Line 2 Orange (Line 1) Gobo1 Rot. Electronic TEMP (DARK GREEN) sensors LIGHT lamp&temp Strobe J3 FROM (YELLOW) J8 PAN &...
  • Page 20 XM 2500 SPOT ARC 1200 14- CONTROL MOTORS CAR 8 MOTORS PCB “2” Gobo2 (line 1) (BLACK) Magnetic Sensors ORANGE Line 1 Brown BROWN Line 2 Orange (Line 1) Gobo2 Rot. (DARK GREEN) J3 FROM Free J8 PAN & TILT Effects (line 2) (PINK) J5 FROM...

  • Page 21: Display Card

    XM 2500 SPOT ARC 1200 15-DISPLAY CARD FROM J4 8 MOTORS CARD BLACK BLACK BLACK TILT 30 VDC 16-PAN & TILT CARD (WHITE) (BROWN) (BLACK) (RED) (B/W) ENCODER PAN (RED) ENCODER TILT (ORANGE) FROM J3 FROM J5 DMX IMPUT 8 MOTORS 8 MOTORS (WHITE) (LIGHT GREEN)

  • Page 22: Dmx Protocol

    XM 2500 SPOT ARC 1200 19- DMX PROTOCOL 18 CHANNELS MODE PAN msb 540° PAN lsb TILT msb 270° TILT lsb DIMMER SHUTTER COLOUR COLOUR MACROS GOBO 1 GOBO 1 ROTATION/INDEX GOBO 2 GOBO 2 ROTATION/INDEX IRIS EFFECTS EFFECTS ROTATION FOCUS ZOOM LAMP ON/OFF - RESET...
  • Page 23 XM 2500 SPOT ARC 1200 DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-19 Black-out 20-39 Open 40-59 Black-out Random Strobe 60-79 Strobe speed 1 min. 80-89 90-99 Strobe speed 2 100-109 Strobe speed 3 110 -119...
  • Page 24 XM 2500 SPOT ARC 1200 DMX CHANNEL COLOUR Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 165-175 Bicolour 8/9 176-186 Colour9 187-197 Bicolour 9/1 198-200 Right rotation speed 1 max. 201-203 Right rotation speed 2 204-206 Right rotation speed 3 207-209...
  • Page 25 XM 2500 SPOT ARC 1200 DMX CHANNEL GOBO 1 Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 0-29 Open 30-59 Gobo 1 60-89 Gobo 2 90-119 Gobo 3 120-149 Gobo 4 150-179 Gobo 5 180-207 Gobo 6 208-213...
  • Page 26 XM 2500 SPOT ARC 1200 DMX CHANNEL GOBO 2 ROTATION/INDEX Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-127 Index 0° - 360° 128-185 Left rotation from fast to slow 186-197 Stop 198-255 Right rotation from slow to fast DMX CHANNEL IRIS Parameter:...
  • Page 27 XM 2500 SPOT ARC 1200 DMX CHANNEL FOCUS Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 0-255 Linear Focus DMX CHANNEL ZOOM Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-255 Linear Zoom...
  • Page 28 XM 2500 SPOT ARC 1200 30 CHANNELS MODE (DEFAULT) PAN msb 540° PAN lsb TILT msb 270° TILT lsb SPEED MOVEMENT DIMMER SHUTTER COLOUR COLOUR MODE CYAN MAGENTA YELLOW COLOUR MACROS GOBO 1 GOBO 1 MODE GOBO 1 ROTATION/INDEX COARSE GOBO 1 INDEX FINE 16 bit GOBO 1 SHAKE GOBO 2...
  • Page 29 XM 2500 SPOT DMX CHANNEL DIMMER Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) Black-out 9-255 Proportional dimmer DMX CHANNEL SHUTTER Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) 0-19 Black-out...
  • Page 30 XM 2500 SPOT DMX CHANNEL COLOUR 1 Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) IF CHANNEL 9 = HALF COLOUR (Dmx range value 64 - 127) 0-25 No Colour 26-51 Bicolour ½ Bicolour 2/3 52-77 Bicolour 3/4 78-103...
  • Page 31 XM 2500 SPOT DMX CHANNEL YELLOW Parameter: Move DMX range Mid point Mode Option Function range Value DMX value (degrees) Proportional Colour 0-255 DMX CHANNEL COLOUR MACROS Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) No Effect 10-44...
  • Page 32 XM 2500 SPOT DMX CHANNEL GOBO 1 ROTATION/GOBO 1 INDEX COARSE Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) IF CHANNEL 15 = Gobo Rotation Mode (Dmx range value 0 - 127) Stop 10-127 Right Rot.
  • Page 33 XM 2500 SPOT DMX CHANNEL GOBO 2 Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) 0-29 Open 30-59 Gobo 1 60-89 Gobo 2 90-119 Gobo 3 120-149 Gobo 4 150-179 Gobo 5 180-207 Gobo 6 208-213 Speed rotation 1 min.
  • Page 34 XM 2500 SPOT DMX CHANNEL GOBO 2 SHAKE Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) Stop 10-22 Gobo Shake R-L Speed 1 Min. 23-35 Gobo Shake R-L Speed 2 36-48 Gobo Shake R-L Speed 3 Gobo Shake R-L Speed 4 49-61 62-74...
  • Page 35 XM 2500 SPOT DMX CHANNEL EFFECTS Parameter: Move DMX range Mid point range Mode Option Function Value DMX value (degrees) No effect 0-41 Effect 1 42-83 84-125 Effect 2 Effect 3 126-167 Effect 4 168-209 Effect 5 219-255 DMX CHANNEL EFFECTS ROTATION/INDEX Parameter: Move...
  • Page 36 D.T.S. assumes no responsibility for the use or application of the products or circuits described herein. MADE IN ITALY D.T.S. Illuminazione s.r.l - Via Fagnano Selve 10-12-14 47843 - Misano Adriatico (RN) Italy Tel. +39 0541 611131 Fax +39 0541 611111 info@dts-lighting.it www.dts-lighting.it...
