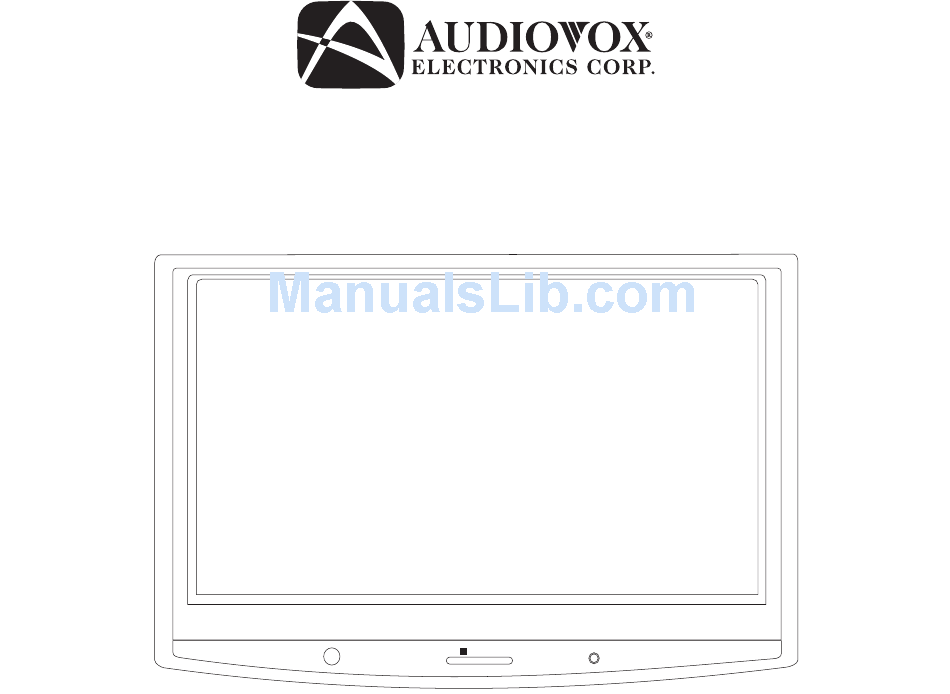

- Page 1 MZ7TFT Installation and Operation Manual MZ7TFT TOUCH PANEL 7-INCH TFT LCD POWER AV-IN...
- Page 2 Introduction Thank you for purchasing the Audiovox MZ7TFT Touch Screen Monitor. This package contains (1) one MZ7TFT, Installation and Operation Manual, mounting bracket with tool, wiring harness, touch screen expansion module and a three year limited warranty. Toll-Free Installation Assistance If you require assistance, contact Technical Support at 1-800-645-4994 from 9:00 a.m.
- Page 3 1. Align the ridges on either end of the combined input cable (VIDEO IN, AUDIO L, AUDIO R, REAR TS, GROUND and ACC) and connect the cable to the male connector on the back of the MZ7TFT. The connector will only fit when the notched areas are properly aligned.
- Page 4 VIDEO OUT (Yellow) VIDEO IN (Yellow) 1. Connect the AUDIO R and AUDIO L cables from the MZ7TFT to the Mul- tizone Headphone cables on the back of your compatible head unit. 2. Connect the VIDEO IN cable from the MZ7TFT to the Video Out cable on the back of your compatible head unit.
- Page 5 MZ7TFT Installation/Mounting Figure 2: Attach Bracket/Secure Bracket 1. Insert the metal end of the center arm on the mounting bracket into the slot on the back of the monitor. 2. Turn the large plastic nut to secure the bracket to the monitor.
-
Page 6: Power On/Off/Standby
MZ7TFT itself. If you use the MZ7TFT by a window with bright sunlight, draw the curtains/ blinds to shut out the direct sunlight, or use the MZ7TFT away from the sunlight. -
Page 7: Screen Adjust
MZ7TFT channel, and each MZ7TFT must be set to transmit on the same channel as the headphone (i.e., left seat monitor/headphones set to channel A and right seat monitor/headphones set to channel B). This will prevent interference of audio by the IR signal being transmitted from two monitors on the same channel. -
Page 8: Care And Maintenance
Operating temperature: -10°C~+60°C IR carrier frequency: • A Channel: 2.3/2.8MHz±100ppm • B Channel: 3.2/3.8MHz±100ppm IR wavelength: 850nm Modulation mode: Frequency modulation (FM) Range of IR emitting: • Frontage: 5m • Left and right / up and down (30º): 2m MZ7TFT... -
Page 9: Limited Warranty
Limited Warranty Audiovox Electronics Corporation (“the Company”) is committed to quality and customer service, and are pleased to offer you this Warranty. Please read it thoroughly and contact the Company at 1-800- 323-4815 with any questions. Who is covered? The Company extends this warranty to the original retail purchaser of products purchased through an authorized Audiovox retailer in the U.S.A., Puerto Rico or Canada. - Page 10 Audiovox Electronics Corporation Hauppauge, NY 11788 Technical Assistance: 1-800-645-4994 www.audiovox.com © 2008 Audiovox Ver. 121907 Printed in China...
