DW1003S017V0

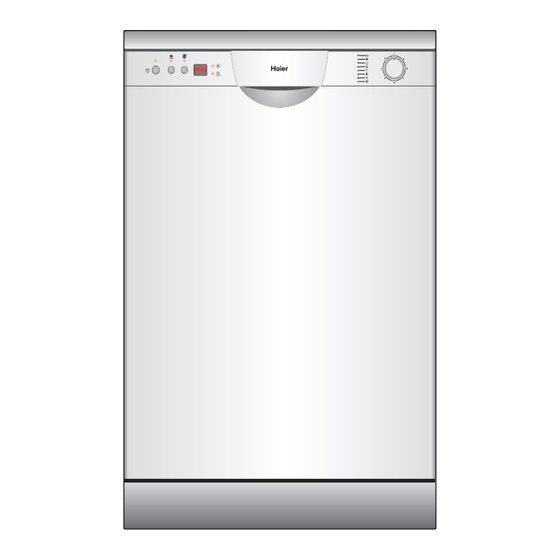

DISHWASHER
DW9-TFE3 Series
201 0(Qingdao Haier Dishwasher Co.,Ltd)

Advertisement

Table of Contents
loading

Related Manuals for Haier DW9-TFE3-F

Summary of Contents for Haier DW9-TFE3-F

  • Page 1 DW1003S017V0 DISHWASHER DW9-TFE3 Series 201 0(Qingdao Haier Dishwasher Co.,Ltd)

  • Page 2: Table Of Contents

    Service Manual Issue Model No:DW9-TFE3 Series Rev. Contents 1. FEATURES..........................3 2. SERIAL LABEL......................... 4 3.HOW TO READ THIS SERVICE MANUAL................5 4. SAFETY PRECAUTION ......................6 4-1.A ......................6 T TIME OF DELIVERY 4-2.D ......................6 URING INSTALLATION 4-3.D ......................
  • Page 3 Service Manual Issue Model No:DW9-TFE3 Series Rev. 11. HOW TO KEEP YOUR DISHWASHER IN SHAPE ............... 25 12. CLEAN AND MENTENANCE....................26 12-1.O ..................26 VERALL CONDITION OF APPLIANCE 12-2.D ......................26 ISHWASHER SALT 12-3.R .......................... 26 INSE AID 12-4.F ..........................

  • Page 4: Features

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 1. Features Brand HAIER Model Product Code EAN NO. Appearance Colour Power Standard DW9-TFE3-F FA07U7E0000 6925777858026 White EUROPE TYPE DW9-TFE3ME-F FA06Z0E0100 6925777858033 Grey EUROPE TYPE DW9-TFE3-U FA07UAE0000 6925777857197 White UK PLUG DW9-TFE3ME-U FA07UCE0000...

  • Page 5: Serial Label

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 2. SERIAL LABEL Serial label located on the top left hand side of the inner door panel. Product Code(DW9-TFE3-U:FA07UAE0000) DW9-TFE3-F: FA07U7E0000 DW9-TFE3ME-F: FA06Z0E0100 DW9-TFE3ME-U: FA07UCE0000 DW9-TFE3BL-U: FA07UBE0000 DW9-TFE3-E:FA07UFE0000 Dishwasher Line Code(FA) Year(A) Month(3)

  • Page 6: How To Read This Service Manual

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 3.How to read this Service Manual The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

  • Page 7: Safety Precaution

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 4. Safety precaution 4-1.At time of delivery ● Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier or customer service without delay. ●...

  • Page 8: 4-4.If Your Family Includes Children

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 4-4.If your family includes children ● This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capcabilities, or lack of experience and knowledge,unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

  • Page 9: Installation

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 5. Installation 5-1.Positioning the appliance Positioning the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

  • Page 10: 5-5.Electrical Connection

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 5-5.Electrical Connection After making sure that the voltage and frequency values for the current in the home correspond to those on the rating plate (located on the stainless steel inner door of the appliance) and that the electrical system is correct for the maximum voltage on the rating plate, insert the plug into an electrical socket which is earthed properly (the earthing of the appliance is a safety requirement mandated by law).If the electrical socket to which the appliance must be connected is not...

  • Page 11: Dissemble And Assemble

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 5-6. Dissemble and assemble screwdriver Dissemble and assemble for dishwasher components cross-screwdriver Dissemble and assemble for dishwasher components blade used for unpacking electric drill used for drill holes while installation spanner used for combine the inlet hose...
  • Page 12 Service Manual Issue Model No:DW9-TFE3 Series Rev. Side panel disassembly Use the cross-screwdriver to drive two screws which are on left top of machine, off side panel. Use the cross-screwdriver to drive five screws which are in left back of machine, off the right side panel. Open the door, use the cross-screwdriver to drive four screws which are in left front, off the right side panel.
  • Page 13 Service Manual Issue Model No:DW9-TFE3 Series Rev. Adjustable softener with reed disassembly Lay the dishwasher on the floor, then remove the bottom cover, pull out the connector of the salt adding valve and the low salt switch. Remove the three clips for fixing the rubber connect pipe, then pull out the rubber pipe.
  • Page 14 Service Manual Issue Model No:DW9-TFE3 Series Rev. Heater disassembly Remove the two self-drilling bolts for fixing the heater bracket from the middle bar, then remove the heater. Pull out the three connector of the heater. Remove the pipe hoop. Remove the connector pipe of the hot pump and the middle hot pump ,then can take the heater down.
  • Page 15 Service Manual Issue Model No:DW9-TFE3 Series Rev. Detergent dispenser disassembly Open the door, disassemble the outer door (Accord to the disassembly step) Close the door, use screwdriver to drive the 6 screws of Detergent Dispenser off, pull the wire out, then open the door, and get the Detergent Dispenser off.

  • Page 16: Parts And Functions

    C "3 in 1" Indicator D "3 in 1" Button E Delayed Start Indicator F Delayed Start Button G Time-remaining Indicator H Low Rinse Aid Indicator Low Salt Indicator G Knob For Selecting Cycle DW9-TFE3-F DW9-TFE3ME-F DW9-TFE3-U DW9-TFE3ME-U DW9-TFE3BL-U DW9-TFE3-E DW9-TFE3ME-E...

  • Page 17: 6-2.Dishwasher Interior

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 6-2.Dishwasher interior a Upper Rack b Lower Rack c Top Spray Arm d Silverware Basket e Bottom Spray Arm f Salt Container Cap g Washing Filter h Detergent and Rinse Aid Dispenser I Water Inlet Hose J Drain Hose K Power Supply Cord...

  • Page 18: How To Fill The Salt

    ●Place the end of the funnel (supplied) into the hole and introduce about 2 kg of salt. It is normal for a small amount of water to come out of the salt container. ●Carefully screw the cap back on. DW9-TFE3-U DW9-TFE3-E DW9-TFE3-F DW9-TFE3ME-U DW9-TFE3ME-E DW9-TFE3ME-F DW9-TFE3BL-U Important To prevent the formation of rust, load the salt just before beginning a wash cycle.
  • Page 19 Service Manual Issue Model No:DW9-TFE3 Series Rev. ● If necessary, rotate the ring in an anticlockwise direction from the "-" setting towards the "+" sign, based on the hardness of the water being used.

  • Page 20: How To Fill Rinse Aid And Detergent Dispenser

    This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on the inside panel of the door . When the low rinse aid indicator “H” lights, you must load rinse aid . DW9-TFE3-U DW9-TFE3-F DW9-TFE3-E DW9-TFE3ME-U DW9-TFE3ME-F...
  • Page 21 Service Manual Issue Model No:DW9-TFE3 Series Rev. Loading the detergent ●To open the " 4 " cover on the dispenser, press the "5" button. ●The detergent for the wash cycle should be poured into the " 6 " compartment. ●The detergent for the pre-wash cycle should be poured into the “...

  • Page 22: Loading The Dishwasher

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 9. Loading the dishwasher Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from becoming clogged, which results in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are soaked before washed.

  • Page 23: 9-4.Knife Rack

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 9-4.Knife rack The knife rack clips onto the side of the top basket, giving you the freedom to wash your large sharp knives separately and out of harm’s way (see fig.G).

  • Page 24: Wash Cycle Table

    Service Manual Issue Model No:DW9-TFE3 Series Rev. 10.Wash Cycle Table Type of Condi- Type of Amount of crokery e.g. Wash tion of china, pots/ food food Description of cycle 3 in 1 food pans, programme remains remains cutlery, remains glasses, etc Pre-wash with warm water.
  • Page 25 Service Manual Issue Model No:DW9-TFE3 Series Rev. Detergent Delayed Energy Water Duration in Rinse Aid Start consump- consump- Extended minutes Prewash tion in kWh tion in litres Wash 1.44 1.25 1.11 1.00 0.80 0.76 1.01 0.95 0.40 0.90 0.02...

  • Page 26: How To Keep Your Dishwasher In Shape

    Service Manual Issue Model No: DW9-TFE3 Series Rev. 11. How to keep your dishwasher in shape 11-1.After Every Wash After every wash, turn off the water supply the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside. 11-2.Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket.

  • Page 27: Clean And Mentenance

    Service Manual Issue Model No: DW9-TFE3 Series Rev. 12. Clean and mentenance Regular inspection and maintenance of your appliance helps to prevent problems from occurring.This saves time and aggravation.You should therefore carefully inspect the inside of your dishwasher from time to time. 12-1.Overall condition of appliance ●...

  • Page 28: Washing Dishes

    Service Manual Issue Model No: DW9-TFE3 Series Rev. 13.Washing dishes 13-1.Switching the dishwasher ON ● Close the door after loading the appliance. ● Set On-Off button “B” to On. The state indicator "A" light. ● Rotate the knob to select programme you wish, the timeremaining indicator display the time of the programme you selected.

  • Page 29: 13-5.Delayed Start Programming

    Service Manual Issue Model No: DW9-TFE3 Series Rev. 13-5.Delayed start programming You can delay the start of a programme in increments of 1 hour up to 24 hours. ● Close the door after loading the appliance. ● Switch dishwasher ON. ●...

  • Page 30: 13-8.Reset Drain Function

    Service Manual Issue Model No: DW9-TFE3 Series Rev. Warning: Do not place the tablets in the tub or the cutlery basket as this will result in poorer wash results. The tablets should be placed in the detergent doser. Notice: The usage of 3 in 1 or similar tablets is forbidden when Heat Wash, Rapid Wash and Soak programmes are selected.

  • Page 31: Fault Finding

    Service Manual Issue Model No: DW9-TFE3 Series Rev. 14. Fault finding Resolving minor problems yourself Experience has shown that you can resolve most problems that rise during normal daily usage yourself,without having to call out a service engineer.Not only does this save costs,but it also means that the appliance is available for use again that much sooner.
  • Page 32 Service Manual Issue Model No: DW9-TFE3 Series Rev. When the buzzer emits 10 short warning signals every 30 seconds and the time-remaining indicator display "E5" Have you checked whether: ● the water is turned on and the hose is connected properly; ●...
  • Page 33 Service Manual Issue Model No: DW9-TFE3 Series Rev. ● Remove any spilled rinse aid with a cloth as it could otherwise lead to excessive foaming during the next washing cycle. Appliance stops suddenly while washing is taking place ● Cut off electricity supply to appliance. ●...
  • Page 34 Service Manual Issue Model No: DW9-TFE3 Series Rev. ● If you used a phosphate-free detergent , try a detergent containing phosphates and compare results. Dishes,cultlery,etc.have not been dried ● Selected programme did not include drying function. ● Amount of rinse-aid was set too low. ●...

  • Page 35: Maintenance Services And Trouble Shooting

    Service Manual Issue Model No: DW9-TFE3 Series Rev. 15. Maintenance Services and Trouble Shooting analysis of the common breakdowns Door switch trouble Phenomenon: the dishwasher does not work Whether the door is closed Close the door Check if door flap is OK Replace it Dismantle the door case and use Change the door...
  • Page 36 Service Manual Issue Model No: DW9-TFE3 Series Rev. Water supply trouble Phenomenon: water level cannot reach the required location Whether water is flowing in the hose Turn on the Whether the stopcock is turned on stopcock Whether solenoid Measure whether solenoid valve is working valve is electrified Change the solenoid...
  • Page 37 Service Manual Issue Model No: DW9-TFE3 Series Rev. Drain pump trouble Phenomenon: water cannot be drained Repair the pipeline and drain pump Whether drain pump Whether the pipeline and is working drain pump was blocked The drain hose Whether drain is too high pump is electrified Cable or the...
  • Page 38 Service Manual Issue Model No: DW9-TFE3 Series Rev. Heating trouble Phenomenon: Heating element cannot work Whether socket connector Connect it well is connected well Check the resistance between the Replace the heater heater resistor Check whether the Connect the two circuit between the two terminals well terminals is open...
  • Page 39 Service Manual Issue Model No: DW9-TFE3 Series Rev. Water overflow trouble Phenomenon: drain pump keep on working...
  • Page 40 Service Manual Issue Model No: DW9-TFE3 Series Rev. Power supply trouble Phenomenon: dishwasher cannot work Check whether the power Connect it properly connector is in position Check whether the The cable or the controller circuit between the two board should be suspected terminals is open Replace the power switch...

  • Page 41: Technical Data

    Service Manual Issue Model No: DW9-TFE3 Series Rev. 16. Technical data Width 45 cm Depth 60 cm Height 85cm Capacity 9 standard place settings Mains water pressure See nameplate Power voltage See nameplate Total absorbed power 1950W See nameplate Maximum current intensity...

  • Page 42: Circuit Diagram

    Service Manual Issue Model No: DW9-TFE3 Series Rev. 17. Circuit Diagram...

  • Page 43: Sincere Forever

    Sincere Forever Haier Group Haier Industrial Park,No.1 Haier Road 266101, Qingdao, China http://www.haier.com...
