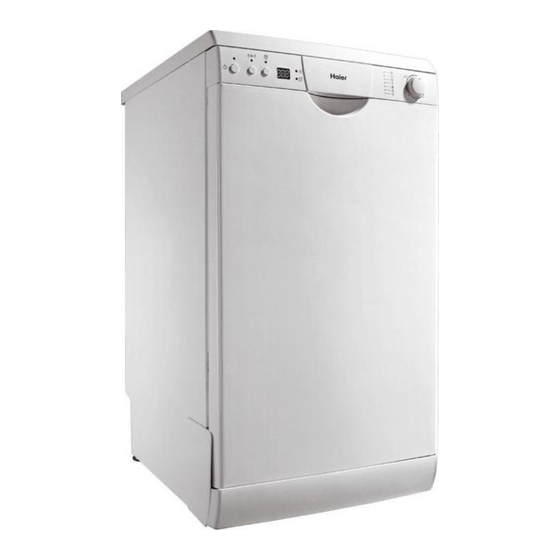

Haier DW9-TFE3 Instructions For Use Manual

Dw9-ufe3 series, dw9-tfe3 series
Hide thumbs

Advertisement

Dishwasher
DW9-TFE3 Series
DW9-UFE3 Series
Instructions for Use
1
DW9-TFE3
1
2
2
3
4
7
3
5
6
6
4
7
5
1
DW9-UFE3
1
2
2
3
4
7
3
5
6
6
4
7
5
en

Advertisement

loading

  Related Manuals for Haier DW9-TFE3

  Summary of Contents for Haier DW9-TFE3

  • Page 1 Dishwasher DW9-TFE3 Series DW9-UFE3 Series Instructions for Use DW9-TFE3 DW9-UFE3...
  • Page 2: Table Of Contents

    Index Safety information Installation Getting to know your dishwasher How to fill the salt How to fill rinse aid How to fill the detergent dispenser Not suitable for the dishwasher Arranging crockery, glasses, etc. in the dishwasher Programme overview Washing dishes How to keep your dishwasher in shape Care and maintenance Fault finding...
  • Page 3: Safety Information

    Safety information At time of delivery Check packaging and dishwasher immediately for signs of transport damage. If the appliance is damaged, do not put it into use but contact your supplier or customer service without delay. Please dispose of packaging materials properly. During installation Site the dishwasher and connect it up in accordance with the installation instructions.
  • Page 4: If A Fault Occurs

    If your family includes children The appliance is not intended for use by young children or infirm persons without supervision. Young children should be supervised to ensure that they do not play with the appliance. Keep detergents out of the reach of children, who must also be kept away from the dishwasher when it is open.
  • Page 5: Installation

    Installation Positioning the appliance Positioning the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wall. The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation. Levelling the appliance Once the appliance is positioned, adjust the feet (screwing them in or out) to adjust the dishwasher, making it level.
  • Page 6: Drain Hose Connection

    Drain hose connection Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. If necessary, fit a syphon trap (U-bend) with a connecting piece for the drain hose (fig.C).
  • Page 7 ELECTRICAL CONNECTION (UK ONLY) For your safety please read the following information. Warning: This appliance must be earthed. The appliance must be connected to a 220-240 volts 50 cycle AC supply by means of a three pin socket, suitably earthed and should be protected by a 13 amp fuse in the plug or a 15 amp fuse in the consumer unit.
  • Page 8: Getting To Know Your Dishwasher

    Getting to know your dishwasher Close-up view (control panel) Delayed Start Button State Indicator Time-remaining Indicator ON-OFF Button Low Rinse Aid Indicator "3 in 1" Indicator Low Salt Indicator "3 in 1" Button Knob For Selecting Cycle Delayed Start Indicator Dishwasher interior Upper Rack Washing Filter...
  • Page 9: How To Fill The Salt

    How to fill the salt Salt The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dishes and utensils. The appliance is equipped with a special softener that uses a salt specifically designed to eliminate lime and minerals from the water.
  • Page 10: How To Fill Rinse Aid

    How to fill rinse aid Rinse aid This product makes dishes sparkle and helps them to dry without spotting. The dispenser is located on the inside panel of the door . When the low rinse aid indicator “H” lights, you must load rinse aid . Loading the rinse aid Regardless of the type of detergent dispenser installed on your appliance, you must proceed as indicated below when loading the rinse...
  • Page 11: Not Suitable For The Dishwasher

    Not suitable for the dishwasher What you should not put into the dishwasher Cutlery and tableware manufactured in whole or part from wood.They become faded and unsightly in appearance.Furthermore,the adhesives that are used are not suitable for the temperature that occur inside the dishwasher.Delicate decorative glassware and vases,special antique or irreplaceable china.
  • Page 12: Arranging Crockery, Glasses, Etc. In The Dishwasher

    Arranging crockery, glasses, etc. in the dishwasher Before placing the dishes in the dishwasher, remove larger food particles to prevent the filter from be- coming clogged, which results in reduced performance. If the pots and pans have baked-on food that is extremely hard to remove, we recommend that they are soaked before washed.
  • Page 13 How to use the upper rack The upper rack is designed to hold more delicate and lighter dishware, such as glasses, cups and saucers, plates, small bowls and shallow pans (as long as they are not too dirty). Position the dishes and cookware so that they do not get moved by the spray of water.
  • Page 14: Programme Overview

    Programme overview Type of Condi- Type of Amount of crokery e.g. Wash tion of china, pots/ food food Description of cycle 3 in 1 food pans, programme remains remains cutlery, remains glasses, etc Pre-wash with warm water. Extended wash at 70°C. Soups, Non- Rinses with cold water.
  • Page 15 Detergent Delayed Energy Water Duration in Rinse Aid Start consump- consump- Extended minutes Prewash tion in kWh tion in litres Wash 1.44 1.25 1.11 1.00 0.80 0.76 1.01 0.95 0.40 0.30 0.90 0.78 0.02 0.02...
  • Page 16: Washing Dishes

    Washing dishes Programme selection The most appropriate programme can be identified by comparing the type of crockery, cutlery, etc., as well as the amount and condition of food remains, with the details contained in the wash cycle table.The corresponding programme sequence, duration and consumption details are shown in the right half of the overview.
  • Page 17: End Of Programme

    End of programme Six beeps will indicate that the wash cycle has finished and the state indicators "A" light. Switching the dishwasher OFF Several minutes after the programme has ended: Set On-Off button to Off Open the door . Turn the water tap off. Remove dishes, etc.
  • Page 18 After 3 seconds the delayed start indicator “ ” blinks, the time-remaining indicator “ ” will blink and decrease , the programme will start until the delayed start indicator “ ” goes out . Cancelling or modifying a cycle cycle that is underway can be modified if it has only been running for a short time. Otherwise, the detergent may have already been used, and the appliance may have already drained the wash water.
  • Page 19: How To Keep Your Dishwasher In Shape

    How to keep your dishwasher in shape After Every Wash After every wash, turn off the water supply the appliance and leave the door slightly ajar so that moisture and odors are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. Do not run risks. No solvents or Abrasive Cleaning Products To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products.
  • Page 20: Care And Maintenance

    Care and maintenance Regular inspection and maintenance of your appliance helps to prevent problems from occurring.This saves time and aggravation.You should therefore carefully inspect the inside of your dishwasher from time to time. Overall condition of appliance Check that no grease or scale has accumulated on the inside of the dishwasher. If you discover any deposits: Clean the interior of the dishwasher thorughly with a detergent solution.
  • Page 21: Spray Arms

    Spray arms Lime and remnants of food in the washing water can block the nozzles in the spray arms “ 10 ” and “ 11 ” and the arm mountings. Inspect the nozzles in the spray arms for blocked holes due to remnants of food.
  • Page 22: Fault Finding

    Fault finding Resolving minor problems yourself Experience has shown that you can resolve most problems that rise during normal daily usage yourself, without having to call out a service engineer.Not only does this save costs,but it also means that the appliance is available for use again that much sooner.
  • Page 23 When the buzzer emits 10 short warning signals every 30 seconds and the time-remain- ing indicator display "E4" Have you checked whether: the drain hose is crimped or bent. the drain hose is too high. When the buzzer emits 10 short warning signals every 30 seconds and the time-remain- ing indicator display "E5"...
  • Page 24 Water remains inside appliance after programme has ended Blockage or kind in drainage hose. Pump is jammed. Filters are blocked. The programme is still running. Wait for the programme to end ..during washing Unusual amount of foam is creased Normal washing up liquid has been poured into the rinse-aid container.
  • Page 25 Plastic items are discoloured Not enough detergent was added to dispenser. Detergent has insuffcient bleaching properties. Use a detergent containing a chemical bleaching agent. White stains are left on crockery, glasses have a milky appearance Not enough detergent was added to dispenser compartment. Amount of rinse-aid was set too low.
  • Page 26: Technical Data

    Technical data 45 cm Width Depth 60 cm Height 85 cm Capacity 9 standard place settings Mains water pressure 0.03-1.0MPa Power voltage 220-240V~ 50Hz Maximum current intensity 1950W Total absorbed power Important information Notes on waste disposal Old appliances still have some residual value. An environment-friendly method of disposal will ensure that valuable raw materials can be recovered and used again.
  • Page 27: General Information

    General information Measures must be taken to ensure that built-under and built-in units that are subsequently re-sited as free-standing appliances cannot topple over. This can be achieved by bolting the dishwasher to the wall or fitting it under a continuous work surface which is screwed to the adjacent cupboards. Information on comparability tests implemented in compliance with EN 50242 Appliance loaded in accordance with standard specifications.
  • Page 28 Disposal The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent poten- tial negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
