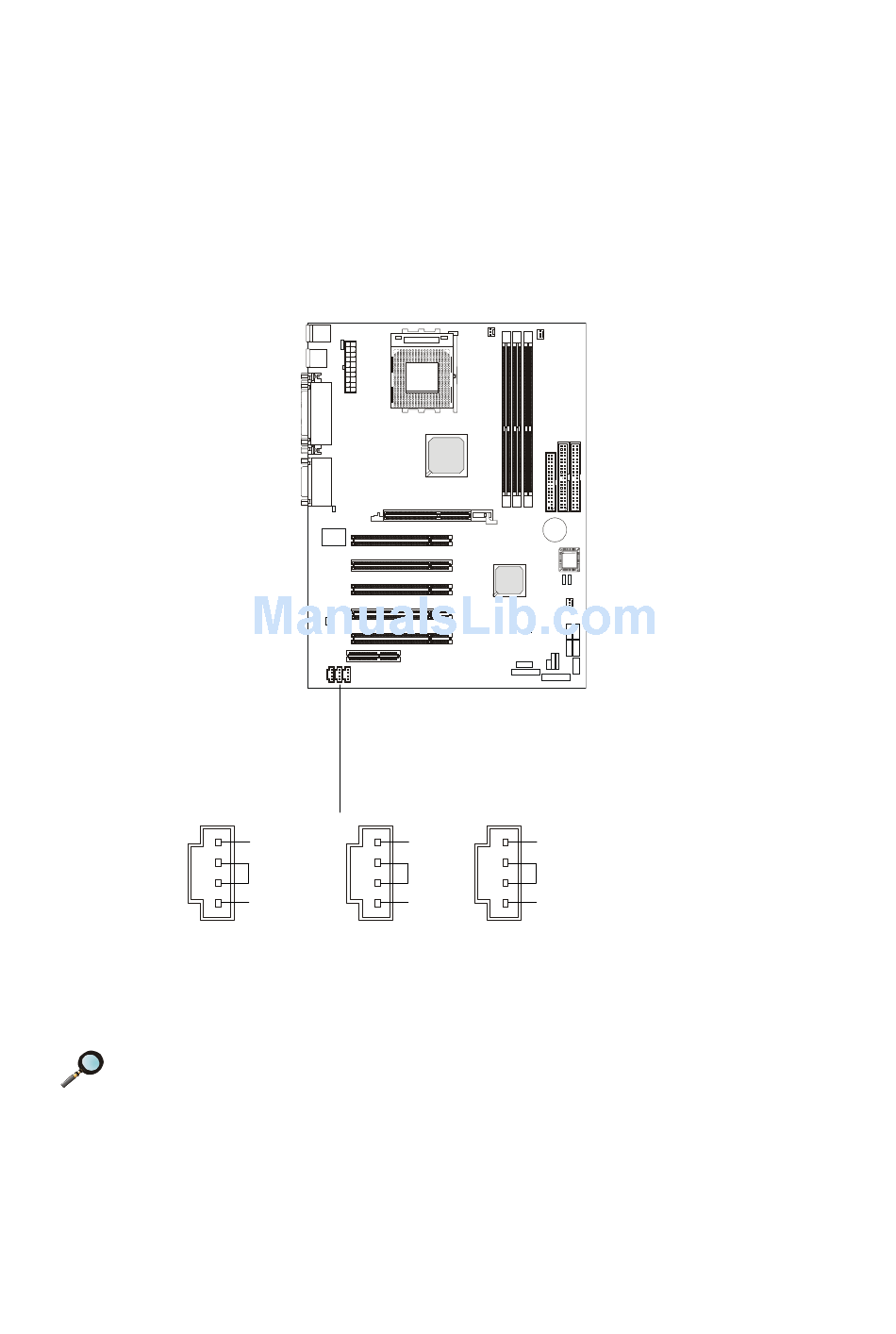

CD-In/Aux Line-In/Modem-In Connector: JCD/JAUX/JMDM

JCD connector is for CD-ROM audio connector.
JAUX connector is for DVD add-on card with Line-in connector.
JMDM connector is for modem with internal audio connector.
1
JMDM
Note:
Mono_Out is connected to the Modem speaker-out connector.
Phone_In is connected to the Modem Microphone-In connector.
1
Phone_In L
GND GND
Mono_Out R
JAUX
1
L
GND
R
JCD
2-19
Hardware Setup
