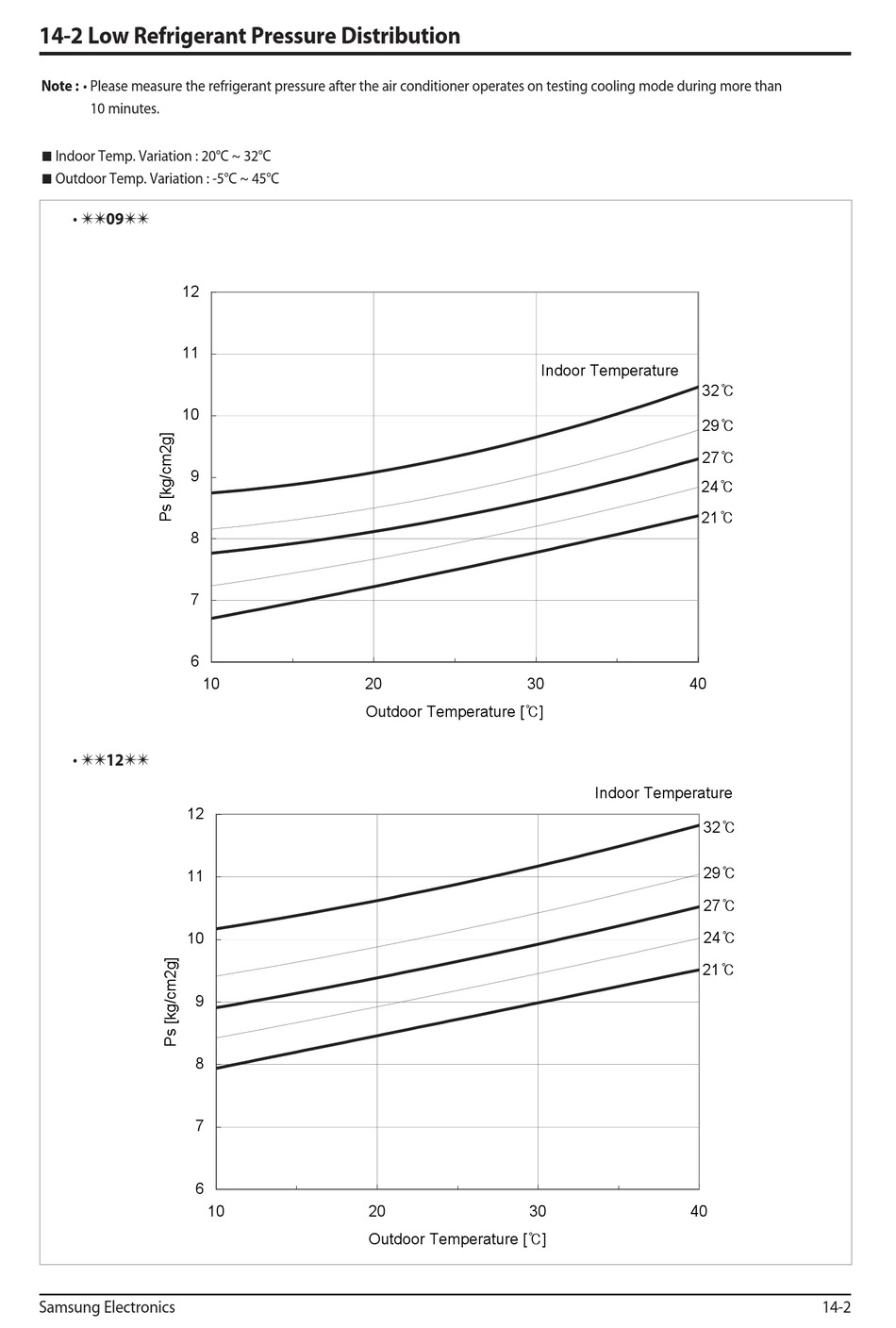

14-2 Low Refrigerant Pressure Distribution

Note : • Please measure the refrigerant pressure after the air conditioner operates on testing cooling mode during more than
10 minutes.
Indoor Temp. Variation : 20°C ~ 32°C
Outdoor Temp. Variation : -5°C ~ 45°C
