Operating Instructions and Installation

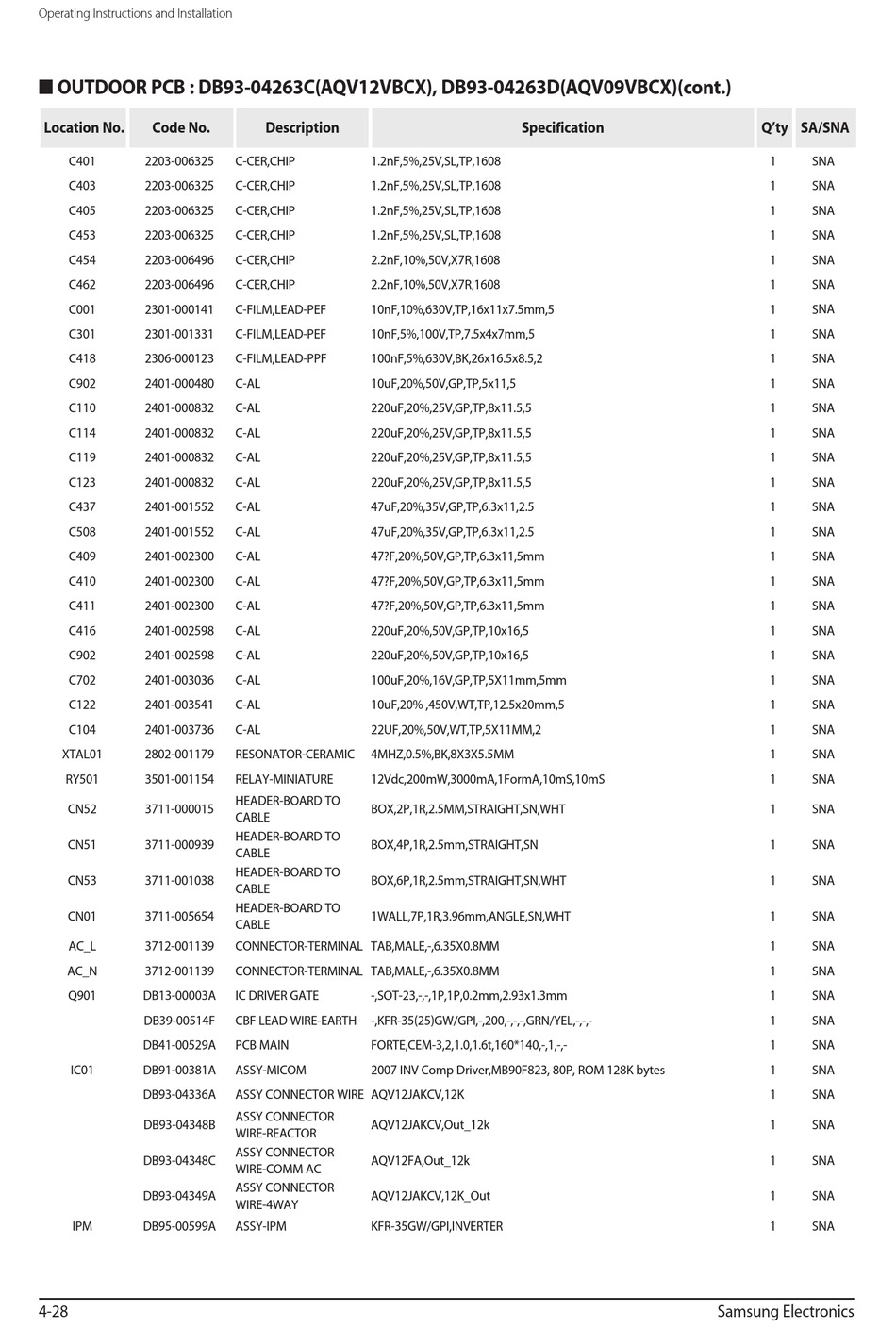

 OUTDOOR PCB : DB93-04263C(AQV12VBCX), DB93-04263D(AQV09VBCX)(cont.)
Location No. Code No.
C401 2203-006325
C403 2203-006325
C405 2203-006325
C453 2203-006325
C454 2203-006496
C462 2203-006496
C001 2301-000141
C301 2301-001331
C418 2306-000123
C902 2401-000480
C110 2401-000832
C114 2401-000832
C119 2401-000832
C123 2401-000832
C437 2401-001552
C508 2401-001552
C409 2401-002300
C410 2401-002300
C411 2401-002300
C416 2401-002598
C902 2401-002598
C702 2401-003036
C122 2401-003541
C104 2401-003736
XTAL01 2802-001179
RY501 3501-001154
CN52 3711-000015
CN51 3711-000939
CN53 3711-001038
CN01 3711-005654
AC_L 3712-001139
AC_N 3712-001139
Q901 DB13-00003A
DB39-00514F
DB41-00529A
IC01 DB91-00381A
DB93-04336A
DB93-04348B
DB93-04348C
DB93-04349A
IPM DB95-00599A
4-28
Description
C-CER,CHIP 1.2nF,5%,25V,SL,TP,1608
C-CER,CHIP 1.2nF,5%,25V,SL,TP,1608
C-CER,CHIP 1.2nF,5%,25V,SL,TP,1608
C-CER,CHIP 1.2nF,5%,25V,SL,TP,1608
C-CER,CHIP 2.2nF,10%,50V,X7R,1608
C-CER,CHIP 2.2nF,10%,50V,X7R,1608
C-FILM,LEAD-PEF 10nF,10%,630V,TP,16x11x7.5mm,5
C-FILM,LEAD-PEF 10nF,5%,100V,TP,7.5x4x7mm,5
C-FILM,LEAD-PPF 100nF,5%,630V,BK,26x16.5x8.5,2
C-AL 10uF,20%,50V,GP,TP,5x11,5
C-AL 220uF,20%,25V,GP,TP,8x11.5,5
C-AL 220uF,20%,25V,GP,TP,8x11.5,5
C-AL 220uF,20%,25V,GP,TP,8x11.5,5
C-AL 220uF,20%,25V,GP,TP,8x11.5,5
C-AL 47uF,20%,35V,GP,TP,6.3x11,2.5
C-AL 47uF,20%,35V,GP,TP,6.3x11,2.5
C-AL 47?F,20%,50V,GP,TP,6.3x11,5mm
C-AL 47?F,20%,50V,GP,TP,6.3x11,5mm
C-AL 47?F,20%,50V,GP,TP,6.3x11,5mm
C-AL 220uF,20%,50V,GP,TP,10x16,5
C-AL 220uF,20%,50V,GP,TP,10x16,5
C-AL 100uF,20%,16V,GP,TP,5X11mm,5mm
C-AL 10uF,20% ,450V,WT,TP,12.5x20mm,5
C-AL 22UF,20%,50V,WT,TP,5X11MM,2
RESONATOR-CERAMIC 4MHZ,0.5%,BK,8X3X5.5MM
RELAY-MINIATURE 12Vdc,200mW,3000mA,1FormA,10mS,10mS
HEADER-BOARD TO
BOX,2P,1R,2.5MM,STRAIGHT,SN,WHT
CABLE
HEADER-BOARD TO
BOX,4P,1R,2.5mm,STRAIGHT,SN
CABLE
HEADER-BOARD TO
BOX,6P,1R,2.5mm,STRAIGHT,SN,WHT
CABLE
HEADER-BOARD TO
1WALL,7P,1R,3.96mm,ANGLE,SN,WHT
CABLE
CONNECTOR-TERMINAL TAB,MALE,-,6.35X0.8MM
CONNECTOR-TERMINAL TAB,MALE,-,6.35X0.8MM
IC DRIVER GATE -,SOT-23,-,-,1P,1P,0.2mm,2.93x1.3mm
CBF LEAD WIRE-EARTH -,KFR-35(25)GW/GPI,-,200,-,-,-,GRN/YEL,-,-,-
PCB MAIN FORTE,CEM-3,2,1.0,1.6t,160*140,-,1,-,-
ASSY-MICOM 2007 INV Comp Driver,MB90F823, 80P, ROM 128K bytes
ASSY CONNECTOR WIRE AQV12JAKCV,12K
ASSY CONNECTOR
AQV12JAKCV,Out_12k
WIRE-REACTOR
ASSY CONNECTOR
AQV12FA,Out_12k
WIRE-COMM AC
ASSY CONNECTOR
AQV12JAKCV,12K_Out
WIRE-4WAY
ASSY-IPM KFR-35GW/GPI,INVERTER
Specification Q'ty SA/SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
1 SNA
Samsung Electronics
