Page 25: Read This First
Introduction Read This First Thank you for purchasing the Nikon COOLPIX AW100 digital camera. Before using the camera, please read the information in “For Your Safety” (Avi) and “<Important> Shockproof, waterproof, dustproof, condensation, GPS/digital compass“ (Axi), and familiarize yourself with the information provided in this manual.
Page 26: About This Manual
Read This First About This Manual If you want to start using the camera right away, see “The Basics of Shooting and Playback” (A15). To learn about the parts of the camera and basic operations, see “Parts of the Camera and Basic Operations” (A1). Other Information •...
Page 27: Information And Precautions
Before taking pictures on important occasions (such as at weddings or before taking the camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon will not be held liable for damages or lost profits that may result from product malfunction.
Page 28 Read This First Notice Concerning Prohibition of Copying or Reproduction Note that simply being in possession of material that was digitally copied or reproduced by means of a scanner, digital camera or other device may be punishable by law. • Items prohibited by law from being copied or reproduced Do not copy or reproduce paper money, coins, securities, government bonds or local government bonds, even if such copies or reproductions are stamped “Sample.”...
Page 29: For Your Safety
For Your Safety To prevent damage to your Nikon product or injury to yourself or to others, read the following safety precautions in their entirety before using this equipment. Keep these safety instructions where all those who use the product will read them.
Page 30 Nikon- authorized service representative for • Do not expose the battery to flame inspection. Failure to observe these or to excessive heat.
Page 31 Turn the power off while inside an provided or sold by Nikon for the airplane during takeoff and landing. purpose, to maintain compliance with Also, before boarding an airplane, set product regulations.
Page 32: Notices
Nikon interference in a residential installation. Corporation may void the user’s This equipment generates, uses, and authority to operate the equipment.
Page 33 State of California to cause birth defects or other reproductive harm. DISPOSE OF USED BATTERIES Wash hands after handling. ACCORDING TO THE Nikon Inc., INSTRUCTIONS. 1300 Walt Whitman Road, This symbol indicates that Melville, New York 11747-3064 this product is to be collected separately.
Page 34: Important> Shockproof, Waterproof, Dustproof, Condensation, Gps/Digital Compass
If the camera is subjected to excessive shock, vibration or pressure by dropping or hitting it, the waterproof performance is not guaranteed. • If the camera is exposed to shocks, it is recommended to consult your retailer or Nikon- authorized service representative to confirm the waterproof performance (charged service).
Page 35: Before Using The Camera Underwater
• The waterproof performance of waterproof packing may start to deteriorate after one year. It is recommended to consult your retailer or Nikon-authorized service representative once a year to replace the waterproof packing with a new one (charged service).
Page 36: Notes On Using The Camera Underwater
<Important> Shockproof, waterproof, dustproof, condensation, GPS/digital compass Notes on using the camera underwater Observe the following precautions to prevent water from seeping inside the camera. • Do not dive into water deeper than 10 m (33 ft) with the camera. •...
Page 37 <Important> Shockproof, waterproof, dustproof, condensation, GPS/digital compass 1. Keep the battery-chamber/memory card slot cover closed and wash off the camera with fresh water. Immerse the camera in a shallow basin filled with freshwater for 10 minutes. • If the buttons or switches do not operate properly, foreign substances may have adhered.
Page 38: Notes On Operating Temperature And Humidity And Condensation
To clear the fogging, remove the battery and memory card, and leave the camera with the battery-chamber/memory card slot cover open to allow the camera to adjust to the ambient temperature. • If the fogging does not clear, consult your retailer or Nikon-authorized service representative.
Page 39: Notes On Gps/Digital Compass
<Important> Shockproof, waterproof, dustproof, condensation, GPS/digital compass Notes on GPS/digital compass Map/location name data of this camera Before using the GPS function, make sure to read “USER LICENSE AGREEMENT FOR MAP DATA AND LOCATION NAME DATA” (F9) and agree to the terms. •...
Page 40: Table Of Contents
Table of Contents Introduction ............................ii Read This First............................ii Confirming the Package Contents......................ii About This Manual............................... iii Information and Precautions........................iv For Your Safety ............................vi WARNINGS ................................vi Notices ..............................ix <Important> Shockproof, waterproof, dustproof, condensation, GPS/digital compass ........................... xi Notes on shockproof performance......................
Page 41 Table of Contents The Basics of Shooting and Playback ..................15 Preparation 1 Charge the Battery....................16 Preparation 2 Insert the Battery..................... 18 Preparation 3 Insert a Memory Card.................... 20 Internal Memory and Memory Cards..................... 21 Approved Memory Cards ..........................21 Step 1 Turn the Camera On ......................
Page 42 Table of Contents Changing the Image Size (Image Mode)..................61 Image Mode Settings (Image Size and Quality)................61 Features That Cannot Be Used Simultaneously ............... 63 Using Face Detection......................... 65 Using Skin Softening ......................... 66 Focus Lock ............................. 67 Playback Features..........................69 Selecting Certain Types of Images for Playback ..............
Page 43 Table of Contents Reference Section........................E1 Using Easy Panorama (Shooting and Playing back) ............E2 Taking Pictures with Easy Panorama....................E2 Viewing Easy Panorama (Scroll) ......................E4 Using Panorama Assist......................... E5 Playing and Deleting Images Captured Using Continuous Shooting Mode (Sequence)............................
Page 44 Table of Contents The Shooting Menu (A (Auto) Mode) ................E34 Image Mode (Image Size and Quality)..................E34 White Balance (Adjusting Hue) ......................E34 Continuous Shooting..........................E36 ISO Sensitivity............................... E37 AF Area Mode .............................. E38 Subject Tracking Mode (Focusing on a Moving Subject)..........E40 Autofocus Mode............................
Page 45 Table of Contents The Setup Menu .......................... E66 Welcome Screen ............................E66 Time Zone and Date..........................E67 Monitor Settings............................E70 Print Date (Imprinting Date and Time on Pictures).............. E72 Vibration Reduction ..........................E73 Motion Detection............................E74 AF Assist................................E75 Digital Zoom..............................E75 Sound Settings............................
Page 46: Parts Of The Camera And Basic Operations
Parts of the Camera and Basic Operations This chapter describes the parts of the camera and also explains the main functions of each part and basic camera operations. Parts of the Camera ..........2 The Camera Body ..................2 Controls Used in Shooting Mode ............4 Controls Used in Playback Mode .............5 The Monitor.....................6 Basic Operations.............9...
Page 47: Parts Of The Camera
Parts of the Camera and Basic Operations Parts of the Camera The Camera Body 9 10 3 4 5 16 17 Battery chamber..........18 Eyelet for camera strap ......14 HDMI mini connector (Type C) ..... 73 Shutter-release button......4, 30 Hinge ..............xii Power switch/power-on lamp....23 Waterproofing packing ......xiii Flash..............54...
Page 48 Parts of the Camera 4 5 6 7 8 13 14 k (apply selection) button ....10 Eyelet for camera strap ......14 Multi selector...........10 Speaker ..........71, 84, 95 Action button Monitor............6, 26 U : Display map........13 Flash lamp............54 V : Action control ......13 Zoom buttons ..........29 Tripod socket f : Wide ...........29...
Page 49: Controls Used In Shooting Mode
Parts of the Camera Controls Used in Shooting Mode Control Name Main Function A (shooting Change the shooting mode (displays the mode) button shooting-mode selection screen). Press g (i) (telephoto zoom position) to zoom in, and f (h) (wide-angle Zoom buttons position) to zoom out.
Page 50: Controls Used In Playback Mode
Parts of the Camera Controls Used in Playback Mode Control Name Main Function • When the camera is turned off, press Playback and hold this button to turn the camera button on in playback mode. • Return to shooting mode. •...
Page 51: The Monitor
Parts of the Camera The Monitor • The information that is displayed on the monitor during shooting and playback changes depending on the camera’s settings and state of use. Information is displayed when the camera is first turned on and when you operate the camera, and turns off after a few seconds (when Photo info in Monitor settings (A94) is set to Auto info).
Page 52 Parts of the Camera Focus area (for manual, center) Shooting mode........26, 27 ................30, 52 Macro mode ............57 Focus area (for auto) ........52 Zoom indicator ..........29 Focus area (for face detection, AE/AF-L indicator........E6 pet detection) .........46, 52, 65 Flash mode ............54 Focus area (for subject tracking) ..
Page 53 Parts of the Camera Playback Mode 15/11/2011 15/11/2011 15/11/2011 12:00 12:00 12:00 9999.JPG 9999.JPG 9999.JPG 999/999 999/999 999/999 999/999 999/999 999/999 1m 0s 1m 0s 1m 0s 9999/9999 9999/9999 9999/9999 1m 0s 1m 0s 1m 0s Date of recording......... 24 Internal memory indicator .....
Page 54: Basic Operations
Basic Operations Switching Between Shooting Mode and Playback Mode The camera has two modes of operation: Shooting mode, which is used for taking pictures, and playback mode, which is used for viewing pictures. Press the c (playback) button to switch to playback mode. Press the A (shooting mode) button to switch to shooting mode.
Page 55: Using The Multi Selector
Basic Operations Using the Multi Selector Operate by pressing up (H), down (I), left (J), right (K), or the k button. When Using Shooting Mode Display m (flash mode) menu (A54), select the item above Display n Display the o (exposure (self-timer) compensation) guide...
Page 56: Using Menus (The D Button)
Basic Operations Using Menus (the d Button) When the d button is pressed while the shooting screen or playback screen is displayed, the menu for the current mode is displayed. Once the menu is displayed, various settings can be changed. Shooting mode Playback mode 15/11/2011...
Page 57: Switching Between Tabs
Basic Operations Switching Between Tabs Shooting menu Set up Shooting menu Image mode Welcome screen Image mode White balance Time zone and date White balance Continuous Monitor settings Continuous ISO sensitivity Print date ISO sensitivity Vibration reduction AF area mode AF area mode Motion detection Autofocus mode...
Page 58: Using The Action Button
Basic Operations Using the Action Button When the action button is pressed, either of the following operations set in Assign action button of the setup menu (A94) can be performed. • Display maps. • Perform the function by shaking the camera (action control).
Page 59: Attaching The Camera Strap For Land Use
Basic Operations Notes on Action Control • When using the action control, be sure to hold the camera firmly by passing your hand through the camera strap. • In the action control, only the action button, shutter-release button and power switch can be used. •...
Page 60: The Basics Of Shooting And Playback
The Basics of Shooting and Playback Preparation Preparation 1 Charge the Battery ..................16 Preparation 2 Insert the Battery ..................18 Preparation 3 Insert a Memory Card................20 Shooting Step 1 Turn the Camera On....................22 Setting the Display Language, Date, and Time (First Use Only) ....24 Step 2 Select a Shooting Mode..................26 Step 3 Frame a Picture .......................28 Step 4 Focus and Shoot.....................30...
Page 61: Preparation 1 Charge The Battery
The Basics of Shooting and Playback Preparation 1 Charge the Battery Connect the power cable in the order indicated below. Insert the battery into the battery charger by sliding the battery forward ( 1 ), and press down until it locks into place ( 2 ). •...
Page 62 • The battery is faulty. Stop charging immediately, unplug the charger, and take both the battery and charger to your retailer or Nikon-authorized service representative. Notes on Battery Charger • Be sure to read and follow the warnings of “For Your Safety” (Avi) thoroughly before using the Battery Charger.
Page 63: Preparation 2 Insert The Battery
Preparation 2 Insert the Battery Press the battery-chamber/memory-card slot cover latch release (1) and rotate the battery-chamber/memory-card slot cover latch (2) to open the cover (3). Insert the battery. • Use the battery to push the orange battery latch in the direction shown (1), and fully insert the battery (2).
Page 64: Removing The Battery
Preparation 2 Insert the Battery Removing the Battery Before opening the battery-chamber/memory card slot cover, turn the camera off (A23) and confirm that the power-on lamp and the monitor are off. To eject the battery, open the battery-chamber/ memory card slot cover and slide the orange battery latch in the direction shown (1).
Page 65: Preparation 3 Insert A Memory Card
Preparation 3 Insert a Memory Card Confirm that the power-on lamp and the monitor are turned off and open the battery-chamber/memory card slot cover. • Be sure to turn off the camera before opening the cover. Insert the memory card. •...
Page 66: Internal Memory And Memory Cards
Preparation 3 Insert a Memory Card Removing Memory Cards Before opening the battery-chamber/memory card slot cover, turn the camera off and confirm that the power-on lamp and the monitor are off. Press the memory card in lightly with your finger (1) to partially eject it, and then pull it out straight (2).
Page 67: Step 1 Turn The Camera On
Step 1 Turn the Camera On Press the power switch to turn on the camera. • If you are turning the camera on for the first time, see “Setting the Display Language, Date, and Time” (A24). • The monitor is turned on. Check the battery level and number of exposures remaining.
Page 68: Turning The Camera On And Off
Step 1 Turn the Camera On Turning the Camera On and Off • When the camera is turned on, the power-on lamp (green) lights, and the monitor is turned on (the power-on lamp turns off when the monitor is turned on).
Page 69: Setting The Display Language, Date, And Time
Step 1 Turn the Camera On Setting the Display Language, Date, and Time Dialogs for language selection and camera clock setting are displayed the first time the camera is turned on. Press the multi selector H or I Language to choose the desired language Čeština and press the k button.
Page 70 Step 1 Turn the Camera On Press H, I, J or K to set date and time, and Date and time press the k button. • To choose an item: Press K or J (selected in the following 2011 order: D (day) ➝ M (month) ➝ Y (year) ➝ hour ➝ minute).
Page 71: Step 2 Select A Shooting Mode
Step 2 Select a Shooting Mode Press the A button. • The shooting-mode selection menu which allows you to select the desired shooting mode, is displayed. Press the multi selector H or I Easy auto mode to select a shooting mode. •...
Page 72: Available Shooting Modes
Step 2 Select a Shooting Mode Available Shooting Modes Easy auto mode By simply framing a picture, the camera automatically selects the optimum scene mode for simple shooting. Scene Camera settings are automatically optimized for the selected scene. • To select a scene, first display the shooting-mode selection menu and then press the multi selector K.
Page 73: Step 3 Frame A Picture
Step 3 Frame a Picture Ready the camera. • Keep your fingers, hair, camera strap and other objects away from the lens, flash, AF- assist illuminator and microphone. • To shoot in the “tall” orientation, hold the camera so that the flash is above the lens. Frame the picture.
Page 74: Using The Zoom
Step 3 Frame a Picture Using the Zoom Zoom out Zoom in Press the zoom buttons to activate the optical zoom. • The subject fills a larger area of the frame: Press g (zoom in). • The area visible increases in the frame: Press f (zoom out).
Page 75: Step 4 Focus And Shoot
Step 4 Focus and Shoot Press the shutter-release button halfway, i.e., press the button slightly until you feel resistance. • When you press the shutter-release button halfway, the camera sets the focus and exposure (shutter speed and aperture value). Focus and exposure remain locked while the shutter-release button is pressed halfway.
Page 76: During Recording
Step 4 Focus and Shoot During Recording • While the indicator showing the number of exposures remaining is blinking, images are being recorded. Do not open the battery-chamber/memory card slot cover. Cutting the power or removing the memory card in these circumstances could result in loss of data or in damage to the camera or card.
Page 77: Step 5 Play Back Images
Step 5 Play Back Images Press the c (playback) button. • When you switch from shooting mode to playback mode, the last image saved will be displayed in full-frame playback mode. c (playback) button Multi selector Use the multi selector to view the previous and next images. •...
Page 78: Changing How Images Are Displayed
Step 5 Play Back Images Changing How Images Are Displayed When using playback mode, you can change how images are displayed by pressing the zoom button f (h)/g (i). Playback Zoom 15/11/2011 15/11/2011 15/11/2011 15:30 15:30 15:30 0004.JPG 0004.JPG 0004.JPG Display position guide Image is displayed in full- Image is zoomed in.
Page 79: Step 6 Delete Unwanted Images
Step 6 Delete Unwanted Images Press the l button to delete the image currently displayed on the monitor. Press the multi selector H or I to select the desired deletion method and press the k Delete button. • Current image: Only the current image is deleted. Current image •...
Page 80 Step 6 Delete Unwanted Images Operating the Erase Selected Images Screen Press the multi selector J or K to select an Erase selected images image to be deleted, and then press H to display y. • To cancel the selection, press I to remove y. •...
Page 82: Shooting Features
Shooting Features This chapter describes each of the camera’s shooting modes and the features that are available when using shooting mode. By referring to this information, you will learn how to select different shooting modes and adjust settings according to the shooting conditions and the kind of images you want to capture.
Page 83: G (Easy Auto) Mode
Shooting Features G (Easy Auto) Mode When you frame a picture, the camera automatically selects the optimum scene for simple shooting. Display the shooting screen M A (shooting mode) button M G (Easy auto) mode (A26, 27) When the camera is pointed at the subject, the camera automatically switches to the setting that is suited for the following shooting mode.
Page 84: Scene Mode (Shooting Suited To Scenes)
Scene Mode (Shooting Suited to Scenes) When one of the following scenes is selected, pictures are captured using settings that are optimized for the selected scene. Display the shooting screen M A (shooting mode) button M b (the second icon from the top*) M K M select a scene (A26, 27) * The icon for the last scene mode selected is displayed.
Page 85: Characteristics Of Each Scene
Scene Mode (Shooting Suited to Scenes) Characteristics of Each Scene Use of a tripod is recommended in scenes with which O is indicated. Set Vibration reduction in the setup menu (A94) to Off when using a tripod to stabilize the camera. b Portrait Use this mode for portraits.
Page 86 Scene Mode (Shooting Suited to Scenes) e Night portrait Use this mode for portraits taken at sunset or at night. • The camera detects and focuses on a face (see “Using Face Detection” (A65) for more information). • After the skin softening feature makes facial skin tones softer, the camera records the image (A66).
Page 87 Scene Mode (Shooting Suited to Scenes) i Dusk/dawn Preserve the colors seen in the weak natural light before sunrise or after sunset. • When the shutter-release button is pressed halfway, the focus area or focus indicator (A6) always lights in green. j Night landscape Slow shutter speeds are used to capture the atmosphere of a night landscape.
Page 88 Scene Mode (Shooting Suited to Scenes) u Food Use this mode when taking pictures of food. • Macro mode (A57) is enabled and the camera automatically zooms to the closest position to the subject where the camera can shoot. • You can adjust the hue by pressing the multi selector H or I.
Page 89 Scene Mode (Shooting Suited to Scenes) o Backlighting Use when light is coming from behind the subject, throwing features or details into shadow. In the screen that is displayed when o Backlighting scene mode is selected, On or Off can be selected in HDR (high dynamic range) composition.
Page 90 Scene Mode (Shooting Suited to Scenes) p Panorama Use this mode for shooting panorama pictures. In the screen that is displayed when p Panorama scene mode is selected, Select Easy panorama or Panorama assist. • Easy panorama (default setting): Shoots panorama pictures that can be played back on the camera by moving the camera in the direction you want to create a panorama picture.
Page 91 Scene Mode (Shooting Suited to Scenes) O Pet portrait Use this mode for shooting pictures of dogs or cats. • Select Single or Continuous (three pictures are shot continuously). - Single: One picture is captured at a time. - Continuous (default setting): When the camera focuses on the detected face in Pet portrait auto release (default setting) mode, three pictures are shot continuously (frame rate with continuous shooting: approximately 1.4 frames per second when image mode is set to...
Page 92: Special Effects Mode (Applying Effects When Shooting)
Special Effects Mode (Applying Effects When Shooting) Select one of the six special effects for shooting. The effect is applied to pictures during shooting. Display the shooting screen M A (shooting mode) button M D (the third icon from the top*) M K M Select the effect (A26, 27) * The last icon you selected is displayed.
Page 93: Changing Special Effects Mode Settings
Special Effects Mode (Applying Effects When Shooting) Changing Special Effects Mode Settings • See “Features That Can Be Set Using the Multi Selector” (A53) for more information on flash mode (A54), self-timer (A56), macro mode (A57), and exposure compensation (A58). •...
Page 94: Smart Portrait Mode (Shooting Smiling Faces)
Smart Portrait Mode (Shooting Smiling Faces) If the camera detects smiling faces, the shutter is automatically released without pressing the shutter-release button (Smile timer). The skin softening function makes facial skin tones softer. Display the shooting screen M A (shooting mode) button M F Smart portrait mode (A26, 27) Frame the picture and wait for the subject to smile.
Page 95: Changing Smart Portrait Mode Settings
Smart Portrait Mode (Shooting Smiling Faces) Changing Smart Portrait Mode Settings • See “Features That Can Be Set Using the Multi Selector” (A53) for more information on flash mode (A54), self-timer (A56), and exposure compensation (A58). • See “Options Available in the Smart Portrait Menu” (below) for more information on functions that can be set using the d button.
Page 96: A (Auto) Mode
A (Auto) Mode Basic shooting operations can be performed. In addition, the options of shooting menu can be adjusted according to the shooting conditions and the kind of images you want to capture. Display the shooting screen M A (shooting mode) button M A (auto) mode (A26, 27) •...
Page 97 A (Auto) Mode Option Description Adjust colors in the image closer to the colors as they appear to the eye. Although Auto (default setting) can be used under most types of lighting, you can apply the white balance setting suited to the sky conditions or light source to White balance achieve better results if default setting results are unsatisfactory.
Page 98: Features That Can Be Set Using The Multi Selector
Features That Can Be Set Using the Multi Selector Press the multi selector H (m), J (n), I (D), or K (o) while shooting to operate the following functions. m Flash mode (A54) o Exposure compensation n Self-timer (A56) (A58) D Macro mode (A57) Available Functions Available functions differ according to the shooting mode as follows.
Page 99: Flash Modes (Using The Flash)
Features That Can Be Set Using the Multi Selector Flash Modes (Using the Flash) You can set a flash mode that suits the shooting conditions. Press H (m flash mode) on the multi selector. Press the multi selector to select the desired mode and press the k button.
Page 100: Available Flash Modes
This camera uses advanced red-eye reduction (“In-Camera Red-Eye Fix”). Pre-flashes are fired repeatedly at low intensity before the main flash, reducing the red-eye effect. If the camera detects “red-eye” when a picture is taken, Nikon’s own In-Camera Red-Eye Fix processes the image before it is recorded.
Page 101: Using The Self-Timer
Features That Can Be Set Using the Multi Selector Using the Self-timer The self-timer is suitable for taking group pictures and reducing the vibration when the shutter-release button is pressed. When using the self-timer, use of a tripod is recommended. Set Vibration reduction in the setup menu (A94) to Off when using a tripod to stabilize the camera.
Page 102: Using Macro Mode
Features That Can Be Set Using the Multi Selector Using Macro Mode When using macro mode, the camera can focus on subjects as close as 1 cm (0.4 in.) from the front of the lens. This feature is useful when taking close-up pictures of flowers and other small subjects.
Page 103: Exposure Compensation (Adjusting Brightness)
Features That Can Be Set Using the Multi Selector Exposure Compensation (Adjusting Brightness) By adjusting exposure compensation when taking pictures, you can adjust overall image brightness. Press K (o exposure compensation) on the multi selector. Press the multi selector H or I to select a compensation value.
Page 104: Default Settings
Features That Can Be Set Using the Multi Selector Default Settings The default settings in each shooting mode are described below. • Similar information about scene mode can be found on the next page. Self-timer Exposure Flash mode Macro mode Shooting mode mode compensation...
Page 105 Features That Can Be Set Using the Multi Selector The default settings in each scene mode are described below. Exposure Flash mode Self-timer mode Macro mode compensation (A54) (A56) (A57) (A58) b (A40) c (A40) d (A40) e (A41) f (A41) Z (A41) z (A41) h (A41)
Page 106: Changing The Image Size (Image Mode)
Changing the Image Size (Image Mode) Display the shooting screen M d button (A11) M Shooting Menu M Image mode Use the Image mode setting in the shooting menu to select the combination of image size and image quality (compression rate) that is used when saving images. Select the image mode best suited to the manner in which images will be used and the capacity of the internal memory or memory card.
Page 107 Changing the Image Size (Image Mode) Number of Exposures Remaining The following table lists the approximate number of images that can be saved in the internal memory and on a 4 GB memory card. Note that due to JPEG compression, the number of exposures remaining differs depending on the composition of the image.
Page 108: Features That Cannot Be Used Simultaneously
Features That Cannot Be Used Simultaneously Some shooting settings cannot be used in combination with other functions. Restricted Option Descriptions function When continuous is used for shooting, the Continuous (A52) flash cannot be used. Flash mode When Blink proof is set to On, the flash Blink proof (A50) cannot be used.
Page 109 Features That Cannot Be Used Simultaneously Restricted Option Descriptions function When continuous is used for shooting, Continuous (A52) shutter sound is disabled. Sound settings When Smile timer is set to On, shutter Smile timer (A50) sound is disabled. When continuous is used for shooting, blink Blink warning Continuous (A52) warning is disabled.
Page 110: Using Face Detection
Using Face Detection In the following shooting modes, the camera uses face detection to automatically focus on human faces. If more than one face is detected, a double border is displayed around the face that the camera will focus 2 9 m 0 s 2 9 m 0 s on, and single borders are displayed around the other faces.
Page 111: Using Skin Softening
Using Skin Softening In the following mode, the camera detects up to three human faces when the shutter is released, and processes the image to make facial skin tones softer before saving the image. • G (easy auto) mode (A38) •...
Page 112: Focus Lock
Focus Lock Use focus lock to focus on off-center subjects when center is selected for AF area mode. To focus on off-center subjects when Center is selected for AF area mode for the shooting menu (A51) in A (auto) mode, use focus lock as described below. Position the subject at the center of the frame.
Page 114: Playback Features
Playback Features This chapter describes how to select certain types of images for playback as well as some of the features available when playing back images. 15/11/2011 15/11/2011 15:30 15:30 15:30 0004.JPG 0004.JPG 0004.JPG Auto sort Playback menu Quick retouch 15/11/2011 15/11/2011 15:30...
Page 115: Selecting Certain Types Of Images For Playback
Playback Features Selecting Certain Types of Images for Playback Playback mode can be changed according to the type of images you want to view. Available Playback Modes c Play All images are played back without selecting types of images. When you switch from shooting mode to playback mode, this mode is selected.
Page 116: Features Available In Playback Mode (Playback Menu)
Features Available in Playback Mode (Playback Menu) When viewing images in full-frame playback mode or Playback menu thumbnail playback mode, you can configure the Quick retouch following functions by pressing the d button to D-Lighting Glamour retouch display the menu, and then selecting the c tab, h Filter effects Print order tab, F tab or C tab (A11).
Page 117 Features Available in Playback Mode (Playback Menu) Option Description Display a sequence of images shot continuously as C Sequence individual images, or display only the key picture of a display options sequence. x Choose key Change the key picture for the series of pictures that were shot continuously (Pictures in a sequence E7).
Page 118: Connecting The Camera To A Tv, Computer, Or Printer
Connecting the Camera to a TV, Computer, or Printer You can enhance your enjoyment of images and movies by connecting the camera to a TV, computer, or printer. • Before connecting the camera to an external device, make sure the remaining battery level is sufficient and turn the camera off.
Page 119: Using Viewnx 2
• Windows XP Home Edition/Professional (Service Pack 3) Macintosh • Mac OS X (version 10.5.8, 10.6.7) Refer to the Nikon website for the latest information on operating system compatibility. Start the computer and insert the ViewNX 2 Installer CD into the CD- ROM drive.
Page 120 The following software is installed: • ViewNX 2 (consisting of the three modules below) - Nikon Transfer 2: For transferring images to the computer - ViewNX 2: For viewing, editing, and printing transferred images - Nikon Movie Editor: For basic editing of transferred movies •...
Page 121: Transferring Images To The Computer
Nikon Transfer 2 and click OK. 2 Double-click Import File. If the memory card contains a large number of images, it may take a while for Nikon Transfer 2 to start. Wait until Nikon Transfer 2 starts. Connecting the USB Cable...
Page 122: Viewing Images
Transfer images to the computer. • Confirm that the name of the connected camera or removable disk is displayed in the “Source” panel in the Nikon Transfer 2 “Options” area ( 1 ). • Click Start Transfer ( 2 ).
Page 123: Retouching Photographs
Using ViewNX 2 Retouching Photographs Click Edit in the ViewNX 2 toolbar. Image editing functions include tone compensation, sharpness adjustment, and trimming (cropping). Editing Movies Click Movie Editor in the ViewNX 2 toolbar. Movie editing functions include the ability to delete unwanted scenes. Printing Images Click Print in the ViewNX 2 toolbar.
Page 124: Recording And Playing Back Movies
Recording and Playing Back Movies You can record movies by simply pressing the b (D movie-record) button. 2 9 m 9 s 2 9 m 9 s 7m23s 7m23s 7m23s In playback mode, press the k button to play a movie. 15/11/2011 15:30 15:30...
Page 125: Recording Movies
Recording and Playing Back Movies Recording Movies You can record movies by simply pressing the b (e movie-record) button. Color tones, white balance, and other settings are the same when recording movies as they are when taking still images. Turn on the camera and display the shooting Movie option screen.
Page 126: Notes On Movie Recording
Recording Movies Notes on Movie Recording • When saving a movie onto a memory card, a memory card with an SD speed class of Class 6 or higher is recommended (A21). If the transfer speed of the card is slow, the movie recording may end unexpectedly.
Page 127 Recording Movies Maximum Movie Length Internal memory Memory card Movie options (A83) (approx. 83 MB) (4 GB)* d HD 1080pP (1920×1080) 50 s 35 min e HD 1080p (1920×1080) 58 s 40 min f HD 720p (1280×720) 1 min 18 s 55 min iFrame 540 (960×540) 29 s...
Page 128: Changing Movie Recording Settings (Movie Menu)
Recording Movies Changing Movie Recording Settings (Movie Menu) The following option settings can be changed. Movie Movie options Open with HS footage Autofocus mode Movie light Wind noise reduction Display the shooting screen M d button M D tab (A11) Option Description Select the type of movie recorded.
Page 129: Playing Back Movies
Playing Back Movies Press the c (playback) button to enter 15/11/2011 15:30 15:30 15:30 0004.MOV 0004.MOV 0004.MOV playback mode. • Use the multi selector to select the movie. • Movies can be recognized by the movie options icon (A82, 83). 10m16s 10m16s 10m16s...
Page 130: Using Gps/Displaying Maps
Using GPS/Displaying Maps This chapter describes how to record the position information on the image using GPS and how to display the current position and image shooting location on the screen using the camera’s internal map information. 500km...
Page 131: Starting Gps Data Recording
Using GPS/Displaying Maps Starting GPS Data Recording The Global Positioning System (GPS) is a satellite-based navigation system using the electro-magnetic waves of a network of GPS satellites placed into orbit. It allows users to determine their locations anywhere on Earth. The camera’s internal GPS receives signals from the GPS satellites and calculate its current time and position.
Page 132 Starting GPS Data Recording Notes on GPS • When positioning for the first time, when positioning was unable to be performed for about two hours, or after the battery was changed, it takes a few minutes to obtain the position information. •...
Page 133: Displaying Maps
Displaying Maps The current position or image shooting location can be displayed on the screen using the camera’s internal map information. To display the map, press the action button in shooting mode or playback mode. When Using Shooting Mode To display the current position on the screen, press the Scale GPS reception action button in shooting mode when Record GPS...
Page 134 Displaying Maps Map Display • The map display cannot be rotated. Only the north up display (the top of the screen indicates the north) is available. • The map display scale may vary depending on the country where the map is displayed. •...
Page 135: Changing The Gps Or Electronic Compass Settings (Map Menu)
Changing the GPS or Electronic Compass Settings (Map Menu) In map display mode, the following option settings Map menu can be changed. GPS options Distance units Calculate distance Points of interest (POI) Create log View log Electronic compass Press the action button (display map, A13) M d button M U tab (A11) Option Description Record GPS data: When set to On, signals are being...
Page 136 Changing the GPS or Electronic Compass Settings (Map Menu) Option Description Make the settings for the POI (points of interest, location name information). Embed POI: When set to On, the location name information is recorded on the pictures to be shot. The default setting is Off.
Page 138: General Camera Setup
General Camera Setup This chapter describes the various settings that can be adjusted in the z setup menu. Set up Welcome screen Time zone and date Monitor settings 2 9 m 0 s 2 9 m 0 s Print date 1 3 4 2 1 3 4 2 1 3 4 2...
Page 139: The Setup Menu
General Camera Setup The Setup Menu Press the d button M z (setup) tab (A11) From the menu screen, select the z tab to display the Set up setup menu, and then you can change the following Welcome screen settings. Time zone and date Monitor settings Print date...
Page 140 The Setup Menu Option Description When the camera detects camera shake or subject movement at the time of shooting, it automatically increases ISO sensitivity and shutter speed to reduce blurring. The default setting is Auto. The r icon lights in green when the camera detects Motion detection camera shake and increases shutter speed.
Page 141 The Setup Menu Option Description Format the internal memory (only when a memory card is not inserted) or the memory card (when a memory card is inserted). Format memory/ • All data stored in the internal memory or on the Format card memory card is deleted during formatting and cannot be restored.
Page 142: Reference Section
Reference Section The Reference Section provides detailed information and hints for using the camera. Shooting Using Easy Panorama (Shooting and Playing back) ........E2 Using Panorama Assist ..................... E5 Playback Playing and Deleting Images Captured Using Continuous Shooting Mode (Sequence) ........................E7 Favorite Pictures Mode....................
Page 143: Using Easy Panorama (Shooting And Playing Back)
Reference Section Using Easy Panorama (Shooting and Playing back) Taking Pictures with Easy Panorama Display the shooting screen M A (shooting mode) button M b (the second icon from the top*) M K M (panorama) * The icon for the last scene mode selected is displayed. The default setting is b (portrait). Select Easy panorama and press the k Panorama button.
Page 144 Using Easy Panorama (Shooting and Playing back) Press the shutter-release button all the way, and release it. • The I icons showing the panorama direction are displayed. Move the camera straight and slowly in one of the four directions to start shooting. •...
Page 145: Viewing Easy Panorama (Scroll)
Using Easy Panorama (Shooting and Playing back) Viewing Easy Panorama (Scroll) Switch to playback mode (A32), display the picture 15/11/2011 15:30 15:30 15:30 0004.JPG 0004.JPG 0004.JPG recorded with easy panorama in full-frame playback mode and press the k button. The camera displays the short side of the picture filling the entire screen and scrolls the displayed area automatically.
Page 146: Using Panorama Assist
Using Panorama Assist Using a tripod makes the composition easier. When using a tripod to stabilize the camera, set Vibration reduction (E73) to Off in the setup menu. Display the shooting screen M A (shooting mode) button M b (the second icon from the top*) M K M (panorama) * The icon for the last scene mode selected is displayed.
Page 147: More Information
Using Panorama Assist Shoot the next picture. • Match the outline of the next picture so that 1/3 of the frame overlaps the previous picture, and press the shutter-release button. 29m 0s 29m 0s 29m 0s • Repeat until you have taken the necessary number of pictures to complete the image.
Page 148: Playing And Deleting Images Captured Using Continuous Shooting Mode (Sequence)
Playing and Deleting Images Captured Using Continuous Shooting Mode (Sequence) The images shot in the following continuous shooting mode are saved as a group (called a “sequence”) each time you shoot. • Continuous H, Continuous L in Continuous (E36) in the shooting menu •...
Page 149: Deleting Images In A Sequence
Playing and Deleting Images Captured Using Continuous Shooting Mode (Sequence) Playback Menu Options Available When Using Sequence When the d button is pressed during an image sequence playback, the following menu operations are available. ➝ ➝ • Quick retouch • D-Lighting ➝...
Page 150: Favorite Pictures Mode
Favorite Pictures Mode You can add favorite pictures to one of nine albums after shooting in accordance with the category (excluding movies). After images are added, they can be easily played back using “h favorite pictures mode.” • It is easier to find the images when they are added to separate albums in accordance with events or type of subjects.
Page 151: Playing Back Images In Albums
Favorite Pictures Mode Playing Back Images in Albums Select playback mode M c button (A70) M h Favorite pictures Use the multi selector to select an album and press the Favorite pictures k button to play back only images added to the same album.
Page 152: Changing The Favorites Album Icon
Favorite Pictures Mode Changing the Favorites Album Icon Select favorite pictures mode M Select an album to change its icon (E10) M d button Press the multi selector J or K to choose an Choose icon icon color and press the k button. Back Press H, I, J or K to choose an icon and Choose icon...
Page 153: Auto Sort Mode
Auto Sort Mode Captured images are automatically sorted into Portraits categories, such as portraits, landscape, and movie. If you select F Auto sort using the procedure described in “Switching Between Playback Modes” (A70), the category selection screen is displayed. Other scenes Use the multi selector to select a category and then press the k button to play back images in the selected category.
Page 154: List By Date Mode
Auto Sort Mode Notes on Auto Sort Mode • Up to 999 images and movie files can be sorted to each category in auto sort mode. If 999 images or movies have already been sorted to a specific category, new images and movies cannot be sorted to that category nor can they be displayed in auto sort mode.
Page 155: List By Date Mode
List by Date Mode If you select C List by date using the procedure List by date described in “Switching Between Playback Modes” 26/11/2011 (A70), the shooting date selection screen is displayed. 20/11/2011 Use the multi selector to select a date and then press 18/11/2011 the k button to play back images captured on the 15/11/2011...
Page 156: Editing Images (Still Pictures)
Editing Images (Still Pictures) Editing Features Images can be easily edited with this camera using the functions below. Edited images are stored as separate files (E85). Editing function Application Quick retouch (E17) Easily create a copy with enhanced contrast and richer colors. Create a copy of the current picture with enhanced brightness D-Lighting (E17) and contrast, brightening dark portions of the picture.
Page 157 Editing Images (Still Pictures) Restrictions on Image Editing The following restrictions apply when editing pictures that were created by editing. Editing functions used Editing functions to add Quick retouch Glamour retouch, Small picture or Crop can be used. D-Lighting Quick retouch, D-Lighting or Filter effects cannot be used in Filter effects combination with each other.
Page 158: Quick Retouch: Enhancing Contrast And Saturation
Editing Images (Still Pictures) k Quick Retouch: Enhancing Contrast and Saturation Select a picture (A32) M d button M Playback menu (A11) M Quick retouch Press the multi selector H or I to choose the Quick retouch setting level, and press the k button. •...
Page 159: Glamour Retouch: Making Facial Skin Tones Softer, Face Smaller, Or Eyes Larger
Editing Images (Still Pictures) s Glamour Retouch: Making Facial Skin Tones Softer, Face Smaller, or Eyes Larger Select a picture (A32) M d button M Playback menu (A11) M s Glamour retouch Press the multi selector H or I to select the Glamour retouch effect type, and press the k button.
Page 160: Filter Effects: Applying Digital Filter Effects
Editing Images (Still Pictures) p Filter Effects: Applying Digital Filter Effects Select a picture (A32) M d button M Playback menu (A11) M Filter effects Option Description Modify color tones. Color options • Select the option from Vivid color, Black-and-white, Sepia, or Cyanotype.
Page 161: Small Picture: Reducing The Size Of An Image
Editing Images (Still Pictures) Check the effect and press the k button. Preview • A new, edited copy is created. • To cancel, press J. Back Back Save Save • Copies created by editing with filter effect can be 15/11/2011 15/11/2011 15/11/2011 15:30...
Page 162: Crop: Creating A Cropped Copy
Editing Images (Still Pictures) a Crop: Creating a Cropped Copy Create a copy containing only the portion visible on the monitor when u is displayed with playback zoom (A33) enabled. Cropped copies are stored as separate files. Enlarge the picture for cropping (A33). Refine copy composition.
Page 163: Connecting The Camera To A Tv (Playback On A Tv)
Connecting the Camera to a TV (Playback on a TV) Connect the camera to a television to play back pictures on the television. If your television is equipped with an HDMI connector, you can connect it to the camera with a commercially available HDMI cable to play back movies. Turn off the camera.
Page 164 Connecting the Camera to a TV (Playback on a TV) Tune the television to the video channel. • See the instruction manual provided with your television for details. Hold down the c button to turn on the camera. • The camera enters playback mode, and the recorded pictures are displayed on the television.
Page 165: Connecting The Camera To A Printer (Direct Print)
Connecting the Camera to a Printer (Direct Print) Users of PictBridge-compatible (F23) printers can connect the camera directly to the printer and print pictures without using a computer. The steps for printing are as follows. Take pictures Choose the pictures for printing using the print order option (Print order: E42) Connect the camera to the printer (E25)
Page 166: Connecting The Camera To A Printer
Connecting the Camera to a Printer (Direct Print) Connecting the Camera to a Printer Turn off the camera. Turn on the printer. • Check the printer settings. Connect the camera to the printer using the included USB cable. • Be sure that the plug is oriented correctly. When disconnecting the cable, do not pull the plug at an angle.
Page 167: Printing Individual Images
Connecting the Camera to a Printer (Direct Print) Printing Individual Images After connecting the camera to the printer correctly (E25), print pictures by following the procedure below. Use the multi selector to choose the picture to Print selection be printed and press the k button. 15/11 2011 •...
Page 168: Printing Multiple Images
Connecting the Camera to a Printer (Direct Print) Choose the desired paper size and press the Paper size k button. Default 3.5×5 in. • To specify the paper size using the printer settings, 5×7 in. choose Default in the paper size menu. 100×150 mm 4×6 in.
Page 169 Connecting the Camera to a Printer (Direct Print) Choose the desired paper size and press the Paper size k button. Default 3.5×5 in. • To specify the paper size using the printer settings, 5×7 in. choose Default in the paper size menu. 100×150 mm 4×6 in.
Page 170 Connecting the Camera to a Printer (Direct Print) Print all images All pictures stored in the internal memory or on Print all images the memory card are printed one per each. • When the menu shown on the right is prints displayed, choose Start print and press the k button to start printing.
Page 171: Editing Movies
Editing Movies Extracting Only the Desired Portions of the Movie The desired portions of a recorded movie can be saved as a separate file (except for movies recorded with p iFrame 540 (960×540)). Play back the movie to be edited and pause at the start point of the portion that is to be extracted (A84).
Page 172 Editing Movies Notes on Editing Movies • Once a movie is created through editing, it cannot be used again for extracting a movie. To extract another range, select and edit the original movie. • Because the edited movies are extracted in 1-second units, they may vary slightly from the set start point and end point.
Page 173: The Smart Portrait Menu
The Smart Portrait Menu Image Mode (Image Size and Quality) See “Changing the Image Size (Image Mode)” (A61) for more information on Image mode. Skin Softening Display the shooting screen in smart portrait mode (A49) M d button M F tab (A11) M Skin softening Enable skin softening.
Page 174: Blink Proof
The Smart Portrait Menu Blink Proof Display the shooting screen in smart portrait mode (A49) M d button M F tab (A11) M Blink proof When On is selected, the camera automatically releases the shutter twice each time a picture is taken. Of the two shots, one in which the subject’s eyes are open is saved. •...
Page 175: The Shooting Menu (A (Auto) Mode)
The Shooting Menu (A (Auto) Mode) Image Mode (Image Size and Quality) See “Changing the Image Size (Image Mode)” (A61) for more information on Image mode. White Balance (Adjusting Hue) (Auto) mode (A51) M d button M Display the shooting screen in tab (A11) M White balance The color of light reflected from an object varies with the color of the light source.
Page 176 The Shooting Menu (A (Auto) Mode) Using Preset Manual Use when white balance setting (Auto, Incandescent, etc.) may not produce the desired results, such as when shooting under unusual lighting conditions (e.g., when you want to make pictures taken under lamps with reddish-light look as though they were shot in normal light).
Page 177: Continuous Shooting
The Shooting Menu (A (Auto) Mode) Continuous Shooting (Auto) mode (A51) M d button M A tab (A11) Display the shooting screen in M Continuous Change the settings for continuous shooting and BSS (Best Shot Selector). Option Description Single (default One picture is shot each time the shutter-release button is pressed.
Page 178: Iso Sensitivity
The Shooting Menu (A (Auto) Mode) ISO Sensitivity (Auto) mode (A51) M d button M Display the shooting screen in tab (A11) M ISO sensitivity The higher the ISO sensitivity, the less light needed for taking pictures. The higher the ISO sensitivity, the darker the subject that can be shot. Additionally, even with subjects of similar brightness, pictures can be taken at faster shutter speeds, and blurring caused by camera shake and subject movement can be reduced.
Page 179: Af Area Mode
The Shooting Menu (A (Auto) Mode) AF Area Mode (Auto) mode (A51) M d button M Display the shooting screen in tab (A11) M AF area mode You can set how the camera selects the focus area for autofocus. Option Description The camera detects and focuses on a face (see “Using Face Detection”...
Page 180 The Shooting Menu (A (Auto) Mode) Option Description Choose manually the focus position from 99 areas in the screen. This option is suited to situations in which the intended subject is relatively still and not positioned at the center of the frame. Press the multi selector H, I, J or K to select one of 99 focus areas Focus area...
Page 181: Subject Tracking Mode (Focusing On A Moving Subject)
The Shooting Menu (A (Auto) Mode) Subject Tracking Mode (Focusing on a Moving Subject) (Auto) mode (A51) M d button M Display the shooting screen in tab (A11) M AF area mode Choose this mode to shoot moving subjects. Subject tracking begins once you select a subject to be focused on, and the focus area will move and follow the subject.
Page 182: Autofocus Mode
The Shooting Menu (A (Auto) Mode) Notes on Subject Tracking • The digital zoom is not available. • Set the zoom position, flash mode, or menu settings before registering a subject. If any of these are changed after a subject is registered, the subject will be canceled. •...
Page 183: The Playback Menu
The Playback Menu See “Editing Images (Still Pictures)” (E15) for the function of editing features (Quick retouch, D-Lighting, Glamour retouch, Filter effects, Small picture). a Print Order (Creating a DPOF Print Order) Press the c button (Playback mode) M d button (A11) M a Print order If you choose to use one of the following methods to print pictures that are stored on a memory card, the pictures to print and the number of copies can be set in advance on the memory card.
Page 184 The Playback Menu Choose whether or not to also print shooting Print order date and shooting information. • Choose Date and press the k button to print the Done shooting date on all pictures in the print order. • Choose Info and press the k button to print shooting Date information (shutter speed and aperture value) on all Info...
Page 185: Print Date
The Playback Menu Notes on Print order When a print order is created in favorite pictures mode, auto sort mode, or list by date mode, the screen shown below is displayed if pictures other than those in the selected album, category, or shooting date have been marked for printing.
Page 186: Slide Show
The Playback Menu b Slide Show Press the c button (Playback mode) M d button (A11) M b Slide show View pictures stored in the internal memory or on a memory card in an automatic slide show. Use the multi selector to choose Start and Slide show press the k button.
Page 187: Protect
The Playback Menu d Protect Press the c button (Playback mode) M d button (A11) M d Protect Protect selected pictures from accidental deletion. In the picture selection screen, choose a picture and set or cancel protection. See “The Image Selection Screen” (E47) for more information. Note, however, that formatting the camera’s internal memory or the memory card permanently erases the protected files (E78).
Page 188: The Image Selection Screen
The Playback Menu The Image Selection Screen The image selection screen is displayed in the following menus. Only one image can be selected for some menu items, while for other menu items, multiple images can be selected. Functions for which only one image can be Functions for which multiple images can be selected selected...
Page 189: Rotate Image
The Playback Menu f Rotate Image Press the c button (Playback mode) M d button (A11) M f Rotate image Change the orientation of pictures played back in the camera’s monitor after shooting. Still pictures can be rotated 90° clockwise or counterclockwise. Pictures that were recorded in the “tall”...
Page 190: E Voice Memo
The Playback Menu E Voice Memo Press the c button (Playback mode) M d button (A11) M E Voice memo Use the camera’s microphone to record voice memos for pictures. • The recording screen is displayed for a picture without voice memo, while the voice memo playback screen is displayed for a picture with voice memo (a picture marked with p in full-frame playback mode).
Page 191: Copy (Copy Between Internal Memory And Memory Card)
The Playback Menu h Copy (Copy Between Internal Memory and Memory Card) Press the c button (Playback mode) M d button (A11) M h Copy Copy pictures between the internal memory and a memory card. Use the multi selector to select an option from Copy the copy screen and press the k button.
Page 192: C Sequence Display Options
The Playback Menu Message: “Memory contains no images.” If there are no pictures stored on the memory card when playback mode is selected, the message, Memory contains no images., is displayed. Press the d button to display the copy option screen, and copy the pictures stored in the camera’s internal memory to the memory card.
Page 193: The Movie Menu
The Movie Menu Movie Options Display the shooting screen M d button M e (Movie) tab (A11) M Movie options You can choose the type of movie to shoot. The camera can record normal speed movies and HS (high speed) movies (E54), which can be played back in slow motion or fast motion.
Page 194: Open With Hs Footage
The Movie Menu HS Movies See “Recording Movies in Slow Motion and Fast Motion (HS Movie)” (E54) for more information. Option Description 1/8-speed slow motion movies with an aspect ratio of 4:3 are recorded. k HS 240 fps (320×240) • Max. movie length*: 10 s (playback time: 1 min 20 s) •...
Page 195: Recording Movies In Slow Motion And Fast Motion (Hs Movie)
The Movie Menu Recording Movies in Slow Motion and Fast Motion (HS Movie) Display the shooting screen M d button M e (Movie) tab (A11) M Movie options HS (high speed) movies can be recorded. Movies recorded using HS movie can be played back in slow motion at 1/8, 1/4 or 1/2 of normal playback speed, or played back in fast motion at a speed two times faster than normal speed.
Page 196 The Movie Menu Notes on HS Movie • Portions recorded for slow motion or fast motion playback is not recorded with sound. • Zoom position, focus, exposure and white balance are locked when the b (e movie-record) button is pressed to start recording. HS Movie Recorded movies can be played back at about 30 frames per second, including portions recorded using HS movie.
Page 197: Autofocus Mode
The Movie Menu Autofocus Mode Display the shooting screen M d button M e (Movie) tab (A11) M Autofocus mode Choose how the camera focuses when recording normal speed movies (E52). Option Description A Single AF Lock on the focus when the b (e movie-record) button is pressed (default to start recording.
Page 198: Map Menu
Map Menu GPS Settings Display a map (A88) M d button M U tab (A11) M GPS options Option Description When set to On, signals are being received from the GPS satellite, and Record GPS data positioning starts (A86). • The default setting is Off. Signals from the GPS satellite are used to set the date and time of the camera’s internal clock (only when Record GPS data in GPS Synchronize...
Page 199: Distance Units
Map Menu Notes on Synchronize • Date/time adjustment by Synchronize is set according to the time zone set in Time zone and date (A24, E67) of the setup menu. Check the time zone before setting Synchronize. • The date/time set using Synchronize is not as accurate as radio clocks. Use Time zone and date in the setup menu to set the time if it is not accurate in Synchronize.
Page 200: Calculate Distance
Map Menu Calculate Distance Press the c button (Playback mode) M Display a map (A88) M d button M U tab (A11) M Calculate distance This calculates the linear distance from the current location to the shooting location on the image or between the shooting locations of two images. Use the multi selector to select the target for Calculate distance calculating the distance, and press the k...
Page 201: Points Of Interest (Poi) (Recording And Displaying Location Name Information)
Map Menu Points of interest (POI) (Recording and Displaying Location Name Information) Display a map (A88) M d button M U tab (A11) M Points of interest (POI) This shows how to set the POI (point of interest, location name information). Option Description When set to On, the location name information is recorded on the...
Page 202: Create Log (Record The Log Of Moving Information)
Map Menu Create Log (Record the log of moving information) Display a map (A88) M d button M U tab (A11) M Create log When log recording starts, the measured tracking information for a certain duration is recorded until a preset time has elapsed. To display the log data (E63), save it to a memory card.
Page 203 Map Menu Select Save log, and press the k button. End log • The log data is saved to a memory card. Save log Erase log Notes on Log Recording • If the date and time are not set, the log cannot be recorded. •...
Page 204: View Log (View The Log On A Map)
Map Menu View Log (View the log on a map) Display a map (A88) M d button M U tab (A11) M View log Display on the map the log data saved in the memory card using Create log (E61) to check your movement route. Use the multi selector to select the log data to View log be displayed, and press the k button.
Page 205: Electronic Compass
Map Menu Electronic Compass Display a map (A88) M d button M U tab (A11) M Electronic compass Option Description When set to On, a compass is displayed on the shooting screen. • The default setting is Off. • The compass indicator changes based on the direction that the camera is held (A6).
Page 206 Map Menu Notes on Using the Digital Compass • The digital compass is not displayed when the camera lens is facing upwards. • Do not use the digital compass in this camera for mountain climbing and other specialized applications. The displayed information is intended as a general guide only. •...
Page 207: The Setup Menu
The Setup Menu Welcome Screen Press the d button M z tab (A11) M Welcome screen Choose whether or not to display the welcome screen on the monitor when the camera is turned on. Option Description None Display the shooting or playback screen without displaying the (default setting) welcome screen.
Page 208: Time Zone And Date
The Setup Menu Time Zone and Date Press the d button M z tab (A11) M Time zone and date Option Description Set the camera clock to the current date and time. Use the multi selector to set the date Date and time and time.
Page 209 The Setup Menu Setting the Travel Destination Time Zone Use the multi selector to choose Time zone Time zone and date and press the k button. 15/11/2011 15:30 • The Time zone screen is displayed. London, Casablanca Date and time Date format Time zone Choose x Travel destination and press the...
Page 210 The Setup Menu Time Zones The camera supports the time zones listed below. For time differences not listed below, set the camera clock using Time zone and date. UTC +/- Location UTC +/- Location Midway, Samoa Madrid, Paris, Berlin Hawaii, Tahiti Athens, Helsinki, Ankara Moscow, Nairobi, Riyadh, Alaska, Anchorage...
Page 211: Monitor Settings
The Setup Menu Monitor Settings Press the d button M z tab (A11) M Monitor settings Option Description Select information displayed on the monitor during shooting and Photo info playback mode. On (default setting): Picture is displayed on the monitor immediately Image review after shooting and the monitor display returns to shooting screen.
Page 212 The Setup Menu Shooting mode Playback mode 15/11/2011 15/11/2011 15/11/2011 15:30 15:30 15:30 0004.JPG 0004.JPG 0004.JPG Framing 2 9 m 0 s 2 9 m 0 s grid+auto 1 3 4 2 1 3 4 2 info In addition to information shown with The same information as in Auto info Auto info above, a framing grid is is displayed.
Page 213: Print Date (Imprinting Date And Time On Pictures)
The Setup Menu Print Date (Imprinting Date and Time on Pictures) Press the d button M z tab (A11) M Print date The shooting date and time can be imprinted on pictures at the time of shooting. This information can be printed even from printers that do not support printing of the date and time (E43).
Page 214: Vibration Reduction
The Setup Menu Vibration Reduction Press the d button M z tab (A11) M Vibration reduction Specify the vibration reduction setting for shooting still pictures or movies. Correct blur, caused by slight hand movement known as camera shake, that commonly occurs when shooting with zoom applied or at slow shutter speeds.
Page 215: Motion Detection
The Setup Menu Motion Detection Press the d button M z tab (A11) M Motion detection Enable motion detection to reduce the effects of camera shake and subject movement when shooting still pictures. Option Description If the camera detects the movement of the subject or camera shake, the ISO sensitivity is raised and the shutter speed is increased to reduce their effects.
Page 216: Af Assist
The Setup Menu AF Assist Press the d button M z tab (A11) M AF assist Enable or disable the AF-assist illuminator that assists the autofocus when the lighting is dim. Option Description AF-assist illuminator lights automatically if the lighting is dim. The illuminator has a range of about 3.5 m (11 ft) at the maximum wide- angle position and about 2.0 m (6 ft 6 in.) at the maximum telephoto Auto...
Page 217: Sound Settings
The Setup Menu Sound Settings Press the d button M z tab (A11) M Sound settings Adjust the following sound settings. Option Description Set the following all sound settings to On (default setting) or Off. • Setting beep (beep sounds once when the settings are completed) •...
Page 218: Action Control Response
The Setup Menu Action Control Response Press the d button M z tab (A11) M Action control response Set the sensitivity of the operation performed when shaking the camera (action control) (A13). When this option is set to High (default setting), the operation is performed even if the camera shake movement is small.
Page 219: Format Memory/Format Card
The Setup Menu Format Memory/Format Card Press the d button M z tab (A11) M Format memory/Format card Format the internal memory or a memory card. Formatting permanently deletes all data in the internal memory or memory card. The deleted data cannot be recovered. Be sure to transfer important pictures to a computer before formatting.
Page 220: Tv Settings
The Setup Menu TV Settings Press the d button M z tab (A11) M TV settings Adjust the settings for connecting to a TV. Option Description Select the analog video output system from NTSC and PAL in Video mode accordance with your TV. Choose a picture resolution for HDMI output from Auto (default setting), 480p, 720p, or 1080i.
Page 221: Blink Warning
The Setup Menu Blink Warning Press the d button M z tab (A11) M Blink warning Choose whether or not blinking eyes are detected when using face detection (A65) in the following shooting modes. • G (Easy auto) mode • In the following scene modes: Portrait (A40) or Night portrait (A41) •...
Page 222: Assign Action Button
The Setup Menu Assign Action Button Press the d button M z tab (A11) M Assign action button Set the function to be performed when the action button (A13) is pressed. Option Description Display map (default setting) Display a map (A13). Operate the function by shaking the camera (action Action control control).
Page 223 The Setup Menu Smart Portrait Menu Option Default value Skin softening (E32) Normal Smile timer (E32) Blink proof (E33) Shooting Menu Option Default value P 4608×3456 Image mode (A61) White balance (E34) Auto Continuous (E36) Single ISO sensitivity (E37) Auto AF area mode (E38) Face priority Autofocus mode (E41)
Page 224 The Setup Menu Option Default value Brightness (E70) Print date (E72) Vibration reduction (E73) Motion detection (E74) Auto AF assist (E75) Auto Digital zoom (E75) Button sound (E76) Shutter sound (E76) Action control response (E77) High Auto off (E77) 5 min HDMI (E79) Auto HDMI device control (E79)
Page 225: Firmware Version
The Setup Menu Firmware Version Press the d button M z tab (A11) M Firmware version Displays the current camera firmware version. COOLPIX AW100 Ver.X.X Back...
Page 226: File And Folder Names
• A folder for storing files is automatically created using the following naming convention: “Folder number + NIKON” (e.g., “100NIKON”). If there are 200 files in a folder, a new folder is created. (For example, the folder name following “100NIKON”...
Page 227 File and Folder Names • When image files or voice files are copied to or from the internal memory or memory card (E50), the file naming conventions are as follows: - Files copied using Selected images are copied to the current folder (or to the folder used for subsequent pictures), where they are assigned file numbers in ascending order following the largest file number in memory.
Page 228: Optional Accessories
Optional Accessories Rechargeable Rechargeable Li-ion Battery EN-EL12* battery Battery charger Battery Charger MH-65* AC Adapter EH-62F (connect as shown) AC adapter Fully insert the cord of the AC Adapter into the slot in the AC Adapter, then insert the AC Adapter in the battery chamber. •...
Page 229: Error Messages
Error Messages The following table lists the error messages and other warnings displayed on the monitor, as well as the solutions for dealing with them. Display Description Solution Clock not set. Set date and time. (blinks) Battery exhausted. Charge or replace the battery. 16, 18 Battery exhausted.
Page 230 Error Messages Display Description Solution All data stored on the memory card is deleted when formatted. If there is any data on the card that you Card is not formatted. Memory card has not want to keep, select No, and backup Format card? been formatted for the data to a computer before...
Page 231 Error Messages Display Description Solution Unable to create panorama. Easy panorama shooting may not be available in the following situations. Unable to create • When shooting has not finished panorama. Pan the Cannot perform easy after a certain period of time camera in one direction panorama shooting.
Page 232 Turn camera off and then on again. If Lens error Lens is not operating error persists, contact retailer or properly. Nikon-authorized service representative. Error occurred during Turn off camera and reconnect cable. E25 communication with Communications error printer.
Page 233 Error Messages Display Description Solution Check the following items. • Whether the memory card is inserted An A-GPS file that can • Whether the A-GPS file is stored in be updated is not No A-GPS file found on the memory card –...
Page 234 Error Messages Display Description Solution Check printer. After solving the Printer error: check Printer error problem, select Resume and press – the k button to resume printing.* printer status. Load the specified size of paper, Specified size of paper select Resume and press the k –...
Page 236: Technical Notes And Index
Technical Notes and Index Caring for the Products ..........F2 The Camera......................F2 The Battery......................F4 The Battery Charger.....................F5 The Memory Cards....................F6 Caring for the Camera ..........F7 Cleaning........................F7 Storage ........................F8 USER LICENSE AGREEMENT FOR MAP DATA AND LOCATION NAME DATA..........F9 Troubleshooting............F13 Specifications............F20 Supported Standards..................F23 Index .................F24...
Page 237: Caring For The Products
• If water seeps inside the camera, immediately stop using the camera. Wipe off moisture from the camera, and at once take the camera to your Nikon-authorized service representative. Shock and Vibration Do not drop the camera, strike it against a hard object such as a rock, or throw it at a water surface.
Page 238 • Images on the monitor may be difficult to see under bright lighting. • The monitor is lit by an LED backlight. Should the monitor begin to dim or flicker, contact your Nikon-authorized service representative.
Page 239: The Battery
Caring for the Products The Battery • Be sure to read and follow the warnings of “For Your Safety” (Avi to viii) thoroughly before using the battery. • Check the battery level before using the camera and replace or charge the battery if necessary.
Page 240: The Battery Charger
Caring for the Products • A marked drop in the time a fully-charged battery retains its charge, when used at room temperature, indicates that the battery needs to be replaced. Purchase a new EN-EL12 battery. • Replace the battery when it no longer holds a charge. Used batteries are a valuable resource.
Page 241: The Memory Cards
Caring for the Products The Memory Cards • Use only Secure Digital memory cards. See “Approved Memory Cards” (A 21). • Be sure to observe the precautions in the memory card documentation when you use the memory card. • Do not affix labels or stickers to the memory card. •...
Page 242: Caring For The Camera
Caring for the Camera Cleaning Avoid touching glass parts with your fingers. Remove dust or lint with a blower (typically a small device with a rubber bulb attached to one end that is pumped to produce a stream of air out the other end). To remove fingerprints, oily substances, or other stains that cannot be removed with a blower, carefully Lens wipe the lens with a dry soft cloth or eyewear cleaning cloth, using a spiral...
Page 243: Storage
Caring for the Camera Storage Remove the battery if the camera will not be used for an extended period. Do not store the camera with naphtha or camphor moth balls, or in any of the following locations: • Next to equipment that produces strong electromagnetic fields, such as televisions or radios •...
Page 244: User License Agreement For Map Data And Location Name Data
No Warranty. This Data is provided to you “as is, ” stored in this digital camera (“Data”) is provided and you agree to use it at your own risk. Nikon for your personal, internal use only and not for and its licensors (and their licensors and resale.
Page 245 Security of the U.S. Department of Commerce. To the extent that any such export laws, rules or regulations prohibit Nikon and its licensors from complying with any of its obligations hereunder to deliver or distribute Data, such failure shall be excused and shall not constitute a breach of this Agreement.
Page 246 USER LICENSE AGREEMENT FOR MAP DATA AND LOCATION NAME DATA Notices related to licensed software copyright holders. • Map data and location name data for Japan © 2011 ZENRIN CO., LTD.. All rights reserved. This service uses map and POI data of ZENRIN CO., LTD.. “ZENRIN” is a registered trademark of ZENRIN CO., LTD..
Page 247 USER LICENSE AGREEMENT FOR MAP DATA AND LOCATION NAME DATA This data includes information taken with permission from Canadian authorities, including © Her Majesty the Queen in Right of Canada, Canada ® © Queen’s Printer for Ontario, © Canada Post Corporation, GeoBase ©...
Page 248: Troubleshooting
Troubleshooting If the camera fails to function as expected, check the list of common problems below before consulting your retailer or Nikon-authorized service representative. Refer to the page numbers in the right-most column for more information. • See “Error Messages” (E88) for more information.
Page 249 Data already recorded is not affected. In the event of continued malfunction, contact your retailer or Nikon-authorized service representative. Shooting Issues Problem...
Page 250 Troubleshooting Problem Cause/Solution Bright specks Flash is reflecting off particles in air. Set the flash to W (off ). 55 appear in pictures shot using flash. • Flash is set to W (off ). • A scene mode that cannot turn on flash is selected. Flash does not fire.
Page 251 Troubleshooting Problem Cause/Solution • Flash is set to W (off ). • Flash window is blocked. Pictures are too • Subject is beyond flash range. dark • Adjust exposure compensation. (underexposed). • Raise the ISO sensitivity. • Subject is backlit. Set the scene mode to Backlighting 44, 54 with HDR set to Off, or set the flash mode to X (fill flash).
Page 252 Troubleshooting Playback Issues Problem Cause/Solution • File was overwritten or renamed by computer or another – File cannot be make or model of camera. played back. • Movies recorded with cameras other than COOLPIX AW100 cannot be played back. • Pictures shot continuously with cameras other than –...
Page 253 • Confirm that the operating system used is compatible when camera is with the camera. connected to a • Computer is not set to launch Nikon Transfer 2 computer. automatically. For more information on Nikon Transfer 2, refer to help information contained in ViewNX 2.
Page 254 Troubleshooting Problem Cause/Solution • The camera may not be able to identify the location in Unable to identify some shooting environments. To use the GPS feature, use the location or it the camera as much as possible in an open-air area. takes time to •...
Page 255: Specifications
Specifications Nikon COOLPIX AW100 Digital Camera Type Compact digital camera Effective pixels 16.0 million Image sensor 1/2.3-in. type CMOS; approx. 16.79 million total pixels Lens 5× optical zoom, NIKKOR lens 5.0-25.0mm (angle of view equivalent to that of 28-140 mm...
Page 256 Specifications ISO sensitivity • ISO 125, 200, 400, 800, 1600, 3200 (Standard output • Auto (auto gain from ISO 125 to 800) sensitivity) • Fixed range auto (ISO 125 to 400) Exposure 256-segment matrix, Center-weighted (when digital zoom is Metering below 2×), spot (when digital zoom is 2×...
Page 257 Specifications Operating environment –10°C to +40°C (14°F to 104°F) (for land use) Temperature 0°C to 40°C (32°F to 104°F) (for underwater use) Humidity 85% and below (no condensation) JIS/IEC protection class 8 (IPX8) equivalent (under our testing conditions) Waterproof Capacity to shoot pictures underwater up to a depth of 10 m (33 ft) and for 60 minutes JIS/IEC protection class 6 (IP6X) equivalent (under our testing Dustproof...
Page 258: Supported Standards
Approx. 70 g (2.5 oz) (excluding power cable) Specifications • Nikon will not be held liable for any errors this manual may contain. • The appearance of this product and its specifications are subject to change without notice. Supported Standards •...
Page 259: Index
Index Auto off 95, E77 Symbols Auto sort mode 70, E12 R E6 Autofocus 52, 57, E41, E56 k Apply selection button 5, 10 Autofocus mode 52, 83, E41, E56 A Auto mode 51 AV cable 73, E22 F Auto sort mode 70, E12 l Delete button 4, 5, 34, E49 G Easy auto mode 38 Backlighting R 44...
Page 260 Index Dusk/dawn i 42 HS movie 83, E53, E54 Identifier E85 Easy auto shooting menu 38 Easy panorama 45, E2 Image copy 71, E50 Editing Images E15 Image mode 61, 62 Editing movies E30 ISO sensitivity 52, E37 Exposure compensation 58 Extension E85 Landscape c 40 Extracting parts of the movie 84...
Page 261: Self-Timer Lamp
Index Shutter sound 95, E76 Panorama assist 45, E5 Shutter-release button 4, 5, 30 Single 52, E36 Panorama p 45 Single AF 52, E41, E56 Paper size E26, E27 Skin softening 50, 66, E32 Party/indoor f 41 Slide show 71, E45 Pet portrait O 46 Photo info 94, E70 Slow sync 55...
Page 262 Index Wide 29 Wind noise reduction 83, E56 Zoom 29 Zoom buttons 4, 5, 29...
Page 263 No reproduction in any form of this manual, in whole or in part (except for brief quotation in critical articles or reviews), may be made without written authorization from NIKON CORPORATION. FX1H03(11) © 2011 Nikon Corporation 6MM15311-03...

This manual is also suitable for:

Coolpix aw1oo

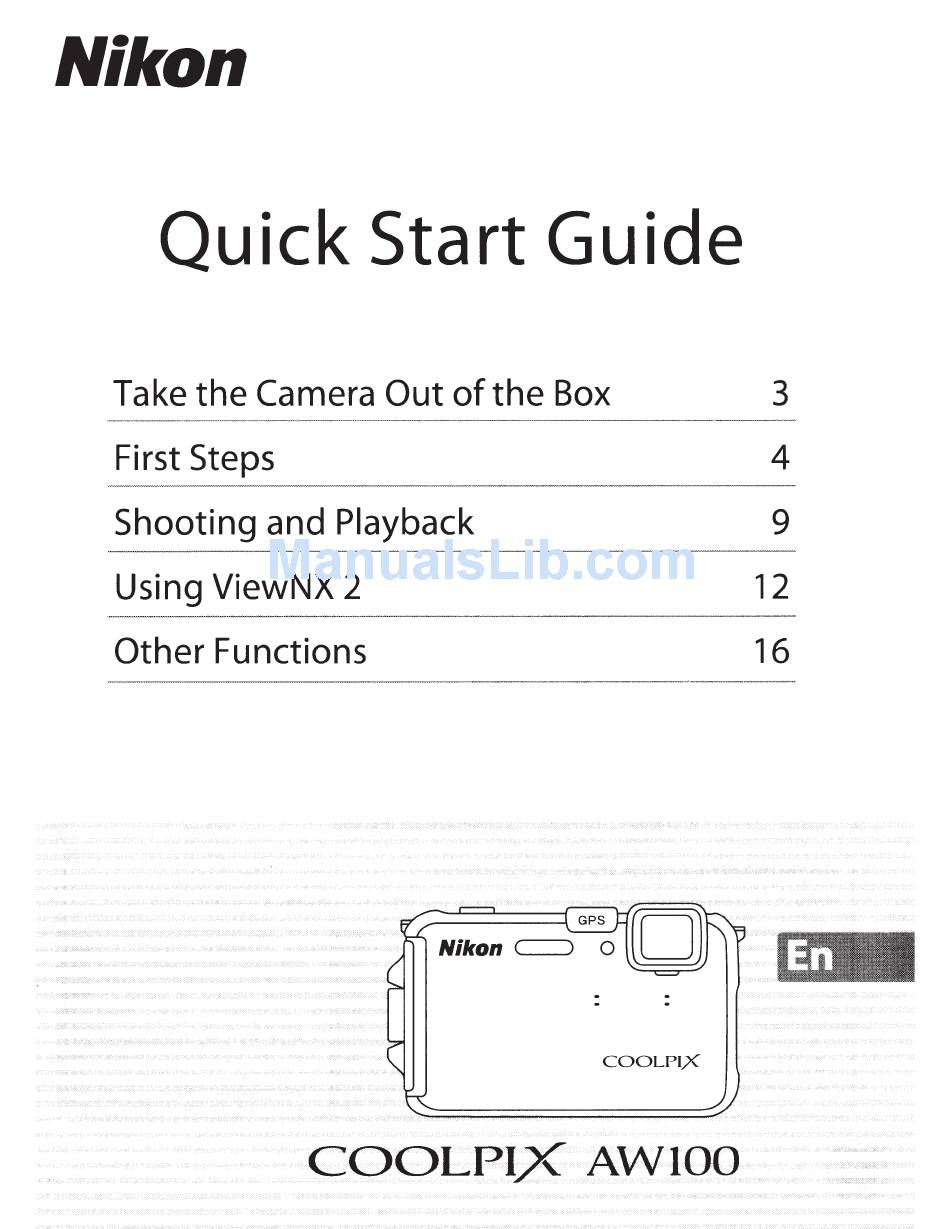

Nikon COOLPIX AWIOO Quick Start Manual

Gps/Digital Compass

Parts of the Camera

Basic Operations

Quick Links

Need help?

Questions and answers

Related Manuals for Nikon COOLPIX AWIOO

Summary of Contents for Nikon COOLPIX AWIOO
