Step 2a:

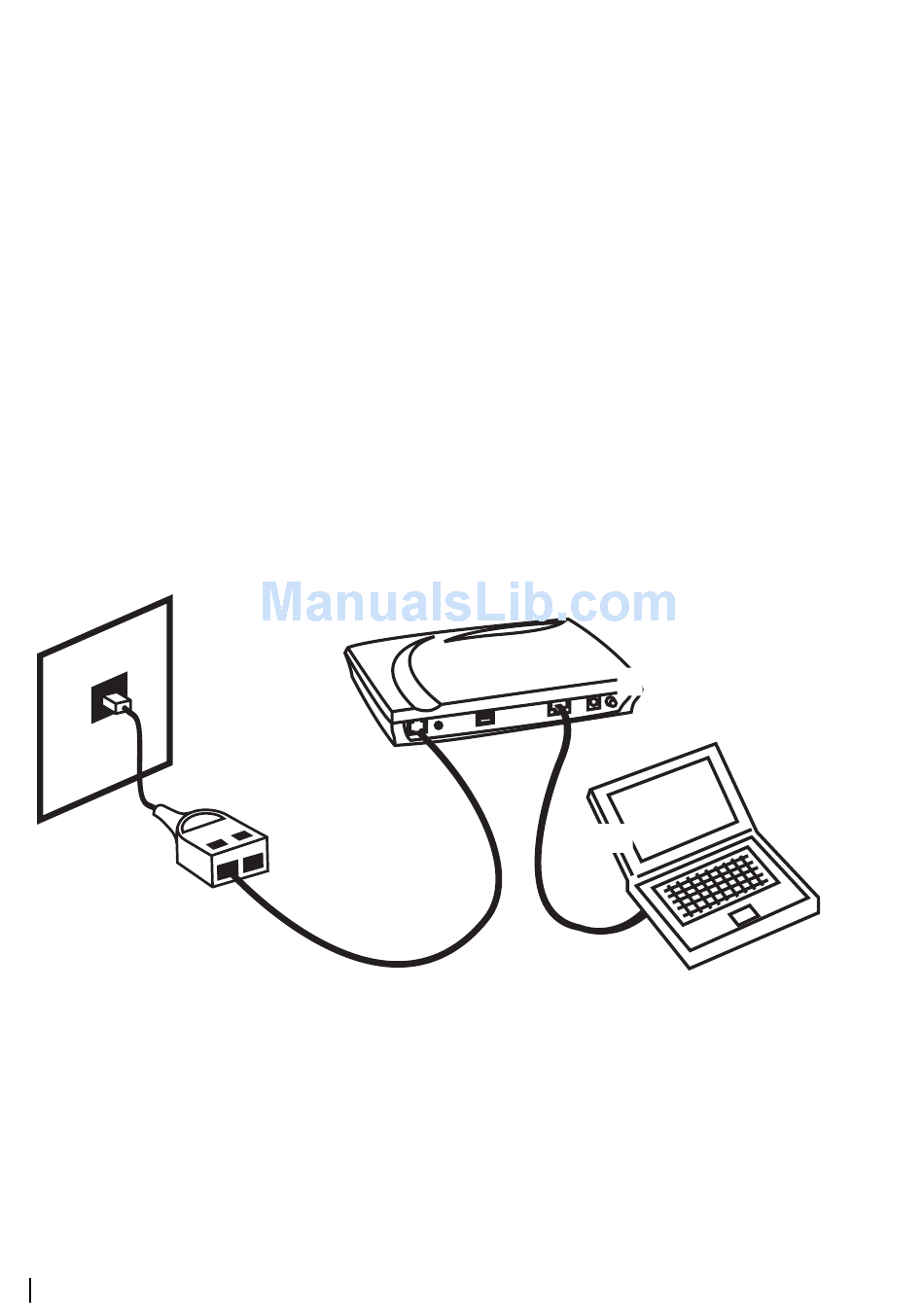

Connect the SIEMENS ADSL C-110 via Ethernet interface
1a. With your computer off, plug the end of the ADSL cable (silver) into the Line port of your
SIEMENS ADSL C-110.
1b. Plug the other end of the cable into the phone jack.
2a. Connect the Ethernet cable (light gray) to the LAN port of your SIEMENS ADSL C-110.
2b. Connect the other end of the Ethernet cable to the LAN port of your computer.
3. Connect the power supply to your SIEMENS ADSL C-110.
4. Plug the power plug into a power outlet.
5. Turn your SIEMENS ADSL C-110 on by pushing on the power button.
6. Turn your computer on and wait until your operating system (OS) is started up.
7. Proceed with step 3. (Read first the introduction and continue then with the paragraph
related to your operating system).
Y-Line Filter
ADSL cabel (silver)
4
SIEMENS ADSL C-110
1.
1b
5.
3.
2a.
2b.
Ethernet cabel
(light gray)
PC or Notebook
