- Page 1 Owner’s Guide │ Guía del usuario │ Notice d’utilisation...
-
Page 2: Important Safety Information
Please save this guide for future reference. All Bose products must be used in accordance with local, state, federal, and industry regulations. The lightning flash with arrowhead symbol within an equilateral triangle alerts the user to the presence of uninsulated, dangerous voltage within the system enclosure that may be of sufficient magnitude to constitute a risk of electric shock. -
Page 3: Important Safety Instructions
• The speaker wire and interconnect cables included with the system are not approved for in-wall installation. Please check your local building codes for the correct type of wire and cable required for in-wall installation. • Changes or modifications not expressly approved by Bose Corporation could void the user’s authority to operate this equipment. - Page 4 Important Safety Information Information about products that generate electrical noise This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 5 Windows is a registered trademark of Microsoft Corporation in the United States and other countries. A personal computer is required for system setup. A home Wi-Fi network and Internet access are required. © 2014 Bose Corporation. No part of this work may be reproduced, modified, distributed, or otherwise used without prior written permission.
-
Page 6: Table Of Contents
Contents Introducing SoundTouch™ from Bose ® Key Benefits ....................Introduction About your SoundTouch™ music system ............System features ..................Setting up the System Unpacking the system ..................Adding the system to your Wi-Fi network ........... ® Installing the SoundTouch™ app ............. - Page 7 Contents ADAPTiQ ® Performing the ADAPTiQ calibration ............23 ® Advanced Features Advanced button control ................. Alternate setup method ................Disabling Wi-Fi capability................ ® Re-enabling Wi-Fi capability ..............Care and Maintenance Adding a Wi-Fi network ................... ® Troubleshooting ....................Cleaning ....................... 29 Customer service ....................
-
Page 8: Introducing Soundtouch™ From Bose
™ powerful control. • Simply add additional systems at any time for a multi-room listening experience. • Wide selection of Bose audio systems lets you choose the right solution for any ® room or outdoor space. -
Page 9: Introduction

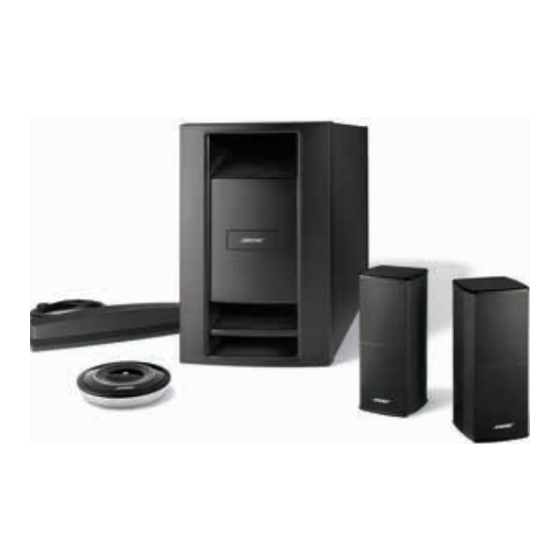

Introduction About your SoundTouch™ music system The SoundTouch Stereo JC Wi-Fi music system provides an elegant way to bring ™ ® high quality sound wirelessly into any room. Use the free SoundTouch app to set ™ up and control your system. See “Adding the system to your Wi-Fi network” on page 11. -
Page 10: Setting Up The System Unpacking The System
Contact Bose customer service for assistance. Note: If part of the system is damaged, do not use it. Contact your authorized Bose dealer or Bose customer service. Please refer to the contact list in the carton for contact information. -
Page 11: Adding The System To Your Wi-Fi
EXPLORE > SETTINGS > Systems > ADD SYSTEM to add another system. Installing the SoundTouch™ app From a computer that is on your Wi-Fi network, open a browser and go to: http://www.Bose.com/soundtouch_app Tip: U se the computer where your music library is stored. http://www.Bose.com/soundtouch_app Download and install the SoundTouch app onto your computer. -
Page 12: Connecting The System To Your Home Wi-Fi
® Place the Acoustimass module on a sturdy surface, close to an AC (mains) ® power source. Connect the wireless adapter to the Bose link connector on the back of the Acoustimass module. ® Bose link connector SoundTouch wireless adapter ™... - Page 13 Setting up the System When prompted by the app, plug the small end of the USB cable into the SETUP A connector on the SoundTouch wireless adapter. ™ SoundTouch wireless ™ adapter SETUP A connector Plug the other end of the USB cable into a USB port on your computer. The app instructs you to enter your network credentials.
-
Page 14: Placing The Speakers
® stands or table stands. To purchase wall mounting brackets, floor stands or table stands, contact your local Bose dealer or visit www.Bose.com. Place the speakers on a sturdy, level surface; one to your left and one to your right: •... - Page 15 Setting up the System CAUTION: • Do not stand the module on its front or back end. • Do not put electronic media such as video or audio tapes on or next to the module for long periods of time. The magnetic field surrounding the module may erase some or all of the recorded material.
-
Page 16: Connect The Speakers
Right (R, blue) Right speaker Left speaker Acoustimass module ® Note: You can place system speakers on wall brackets, table stands or floor stands. To purchase these accessories, contact your local Bose dealer or ® visit www.Bose.com. 16 - English... -
Page 17: Placing The Soundtouch™ Wireless Adapter
Setting Up the System Placing the SoundTouch™ wireless adapter The SoundTouch wireless adapter provides the network connection for the ™ SoundTouch Stereo JC Wi-Fi music system. It must remain in range of the Wi-Fi ™ ® router, and within 70 feet (21 m) of the SoundTouch controller. -
Page 18: Controlling The System Using The App Using The Soundtouch App
Controlling the System using the App Using the SoundTouch ™ The SoundTouch app is a software application that enables you to control the ™ system from your computer, smartphone, or tablet. Using the app, your smart device acts as a rich remote for your SoundTouch system. -
Page 19: Downloading The App For Your Mobile Device
Controlling the System using the App Downloading the app for your mobile device Bose offers a free mobile version of the SoundTouch app so you can control the ® ™ system from your smartphone or tablet. To install the app for your smartphone or tablet: •... -
Page 20: Using The System
Using the System Playing music with the SoundTouch™ controller During the setup process, you were prompted to connect the SoundTouch ™ controller to the system. If your SoundTouch controller is not connected, launch ™ app and click EXPLORE > SETTINGS > Systems, select your the SoundTouch ™... -
Page 21: Playing An Airplay Stream From An Airplay Compatible Device
System on and connected to Wi-Fi network Solid amber System in setup mode Blinking slow amber Disconnected from Wi-Fi network Blinking fast amber Firmware error - call Bose service Wi-Fi networking disabled or system connected to Ethernet English - 21... -
Page 22: Personalizing Your Presets How Presets Work
Personalizing your Presets How Presets work You can personalize six Presets to your favorite streaming music services (where available), stations, playlists, artists, albums, or songs from your music library. You can access your music at any time with a simple touch of a button on the Sound- Touch controller. -
Page 23: Adaptiq
ADAPTiQ ® Performing the ADAPTiQ calibration ® What you need: SoundTouch controller ADAPTiQ headset ™ ® The ADAPTiQ audio calibration system customizes the sound of your system to ® the acoustics of your listening area. Note: You must complete SoundTouch setup before performing ADAPTiQ audio ™... - Page 24 ADAPTiQ ® Press and release ADAPTiQ on the Acoustimass module connector panel. ® The system announces the selected language. ADAPTiQ button ® To select a different language, press ADAPTiQ repeatedly until you hear the language you want. Place the module in its final position and orientation (standing on its feet or laying on its side).
-
Page 25: Advanced Features
1-8 seconds. When the amber Wi-Fi indicator blinks, release the Control button. The Wi-Fi indicator should be solid amber. Wi-Fi indicator Control button On your computer, tablet or smartphone, activate Wi-Fi and join the Bose SoundTouch Wi-Fi network. ® ™... -
Page 26: Disabling Wi-Fi Capability
Advanced Features On your computer, tablet, or smartphone, return to the Wi-Fi control panel and rejoin your home Wi-Fi network. Once the system is on the network, follow these steps to complete setup: A. Download and launch the SoundTouch app. ™... -
Page 27: Care And Maintenance
• Close app, disconnect all cables, and restart setup process. • For more information, visit the SoundTouch Online Forum or contact ™ Bose Support (refer to the contact list included in the carton). For more troubleshooting, refer to the Help system in the SoundTouch app. ™... - Page 28 There is no • Make sure the Acoustimass module is plugged into power, and the ® wireless adapter is connected to the Bose link connector. sound • Make sure the speaker cable plugs are pushed all the way into the Jewel Cube series II connectors.
-
Page 29: Cleaning
• Do not use solvents, chemicals, or sprays. • Do not allow liquids to spill or objects to drop into any openings. Customer service For additional help using the system, contact Bose customer service. See the contact list included with your SoundTouch Stereo JC Wi-Fi music system. -
Page 30: Technical Information Soundtouch™ Acoustimass Module
Technical Information SoundTouch™ Acoustimass module ® Dimensions and weight • 8.0"W x 21.7"D x 13.0"H (20.7 cm x 55.2 cm x 33.2 cm) • 26.2 lb (11.9 kg) Power rating 100-120/220-240V 50/60Hz 350W Power consumption (OFF mode): <=4W Temperature range 32°... -
Page 31: Appendix A: Acoustimass ® Connector Panel
Appendix A: Acoustimass connector panel ® The Acoustimass module connector panel includes speaker connectors, the ® ADAPTiQ calibration system connectors and button, and an power connector. ® ADAPTiQ Bose link ® button connector AC Power connector Left and ADAPTiQ right speaker... -
Page 32: Appendix B: Wall Mounting The Soundtouch™ Wireless Adapter
Apendices Appendix B: Wall mounting the SoundTouch™ wireless adapter You can mount the adapter on a wall (hardware not included). See “Mounting hardware specifications” for the correct hardware. Mounting hardware specifications Item Wood Wallboard ⅜ Wall thickness 1 in. (25.4 mm) or thicker in. -
Page 33: Appendix C: Wall Mounting The Soundtouch™ Controller
Apendices Appendix C: Wall mounting the SoundTouch™ controller The wall mount bracket contains magnetic material. Please WARNING: contact your physician if you have any questions whether this might affect the operation of your implantable medical device. Follow these instructions to wall mount your SoundTouch controller. Use the ™ bracket as a template to mark the holes. Wallboard (anchors and screws supplied): Use a in. (5 mm) drill bit to drill two holes into in. -
Page 34: Appendix D: Using A Desktop Computer To Connect To The Network
Acoustimass module to power, it reconnects to your Wi-Fi network. ® ® See “Placing the speakers” on page 14. AC power cord Bose link ® cable Acoustimass ® USB cable Note: Connect the USB cable to the SoundTouch wireless adapter only ™... - Page 35 Apendices English - 35...
- Page 36 ©2014 Bose Corporation, The Mountain, Framingham, MA 01701-9168 USA AM719722 Rév. 00...
