D-Bracket™ Connector: J4

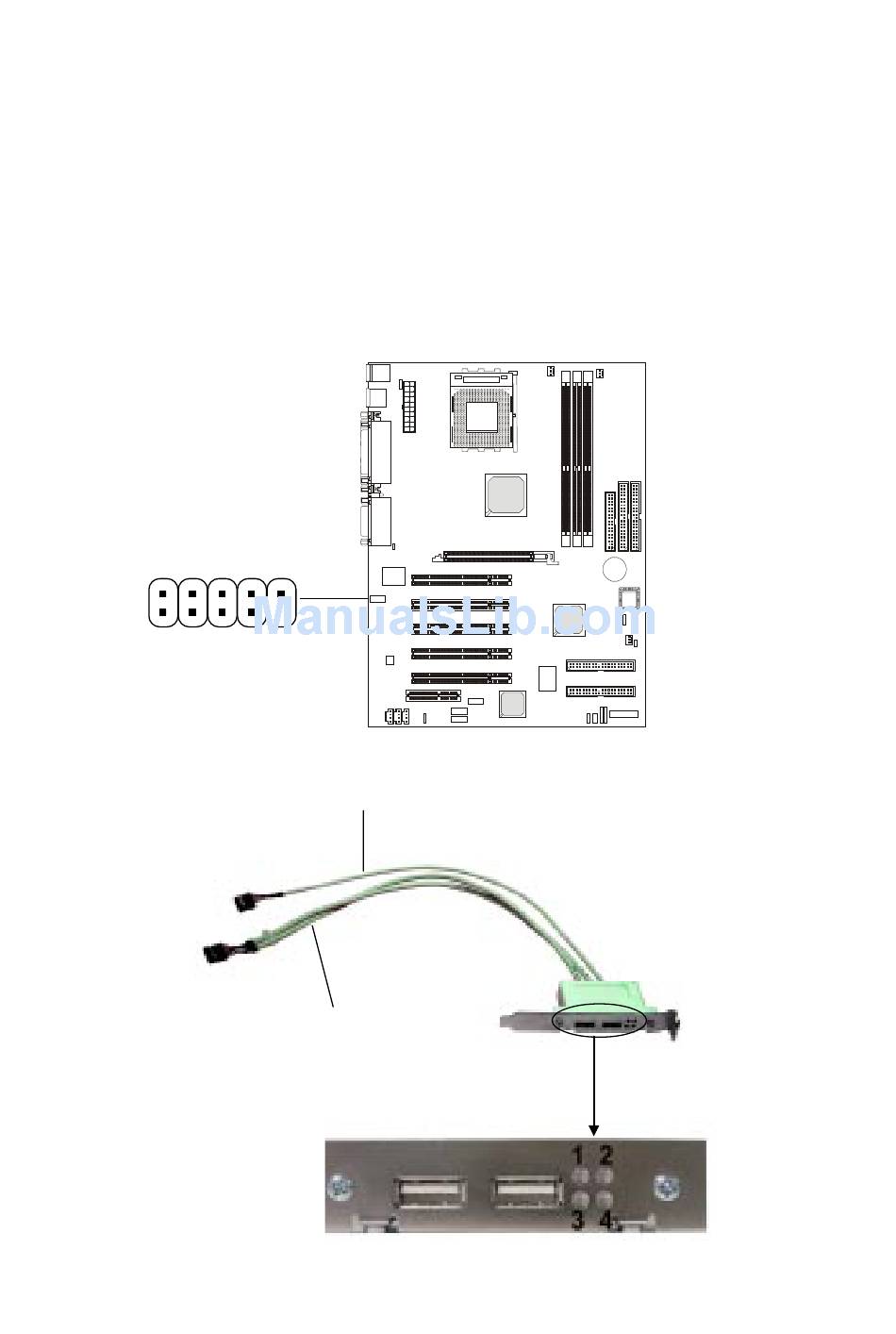

The motherboard comes with J4 connector and you can connect a D-
Bracket™ to J4. D-Bracket™ is a USB bracket integrating four LEDs whose
functions are similar to D-LED™ and allows users to identify system problem
through 16 various combinations of LED signals. For definitions of 16 signal
combinations, refer to page 1-13 D-LED™ & D-Bracket™.
2
1
J4
Connected to USB
pin header
10
9
Connected to J4
2-26
