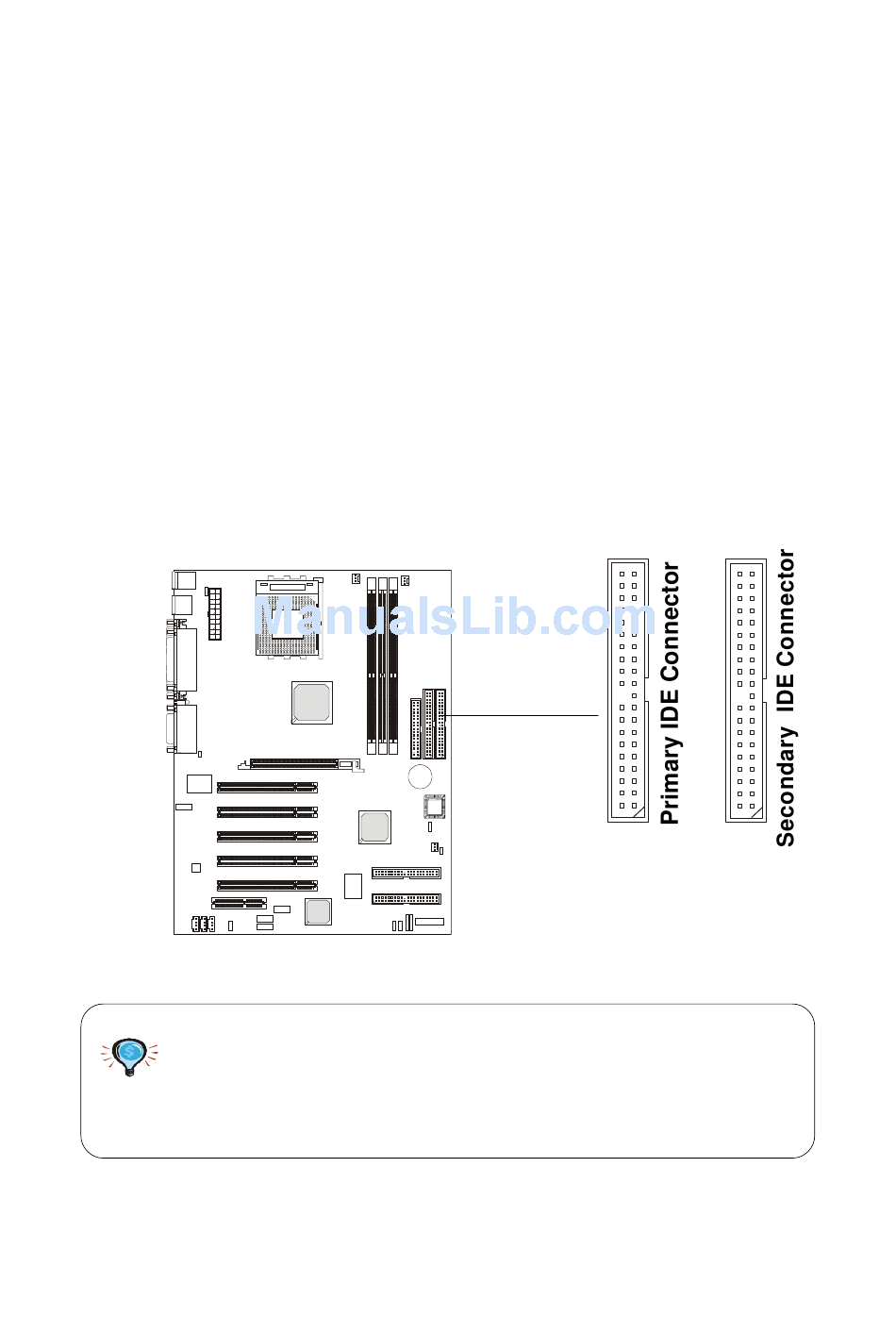

Hard Disk Connectors: IDE1 & IDE2
The mainboard uses an IDE controller on the VIA
provides PIO mode 0-4, Bus Master, and Ultra DMA 33/66/100 modes. It has
two HDD connectors IDE1 (Primary) and IDE2 (Secondary). You can connect
up to four hard disk drives, CD-ROM or 120MB Floppy to IDE1 and IDE2.
IDE1 (Primary IDE Connector)
- The first hard disk drive should always be connected to IDE1. You can
connect a Master and a Slave drive to IDE1.
IDE2 (Secondary IDE Connector)
- You can connect a Master and a Slave drive to IDE2.
If you install two hard disks on cable, you must configure the
second drive to Slave mode by setting its jumper. Refer to the
TIP hard disk documentation supplied by hard disk vendors for
jumper setting instructions.
2-13
Hardware Setup
®
VT8233 chipset that
40 39 40 39
2 2
1 1
