Sensor Electronics SEC 3100 Instruction And Operation Manual page 26

TB 2
POWER,
DATA HWY,
ANALOG
OUTPUT
TB 1
(12) LOW ALARM N.C.
(11) LOW ALARM COMMON
(10) LOW ALARM N.O.
(9) MID ALARM N.C.
(8) MID ALARM COMMON
(7) MID ALARM N.O.
(6) HIGH ALARM N.C.
(5) HIGH ALARM COMMON
(4) HIGH ALARM N.O.
(3) FAULT (N.E.) N.C.
(2) FAULT (N.E.) COMMON
(1) FAULT (N.E.) N.O.
SENSOR ELECTRONICS CORPORATION
5500 LINCOLN DRIVE
MINNEAPOLIS, MINNESOTA 55436 USA
(T) 952.938.9486 (F) 952.938.9617
sales@sensorelectronic.com
TB 2
(1) 4-20 mA ANALOG OUTPUT
(2) DC COMMON
(3) +24 VDC
(4) DATA ISO COMMON
(5) RS485 DATA B
(6) RS485 DATA A

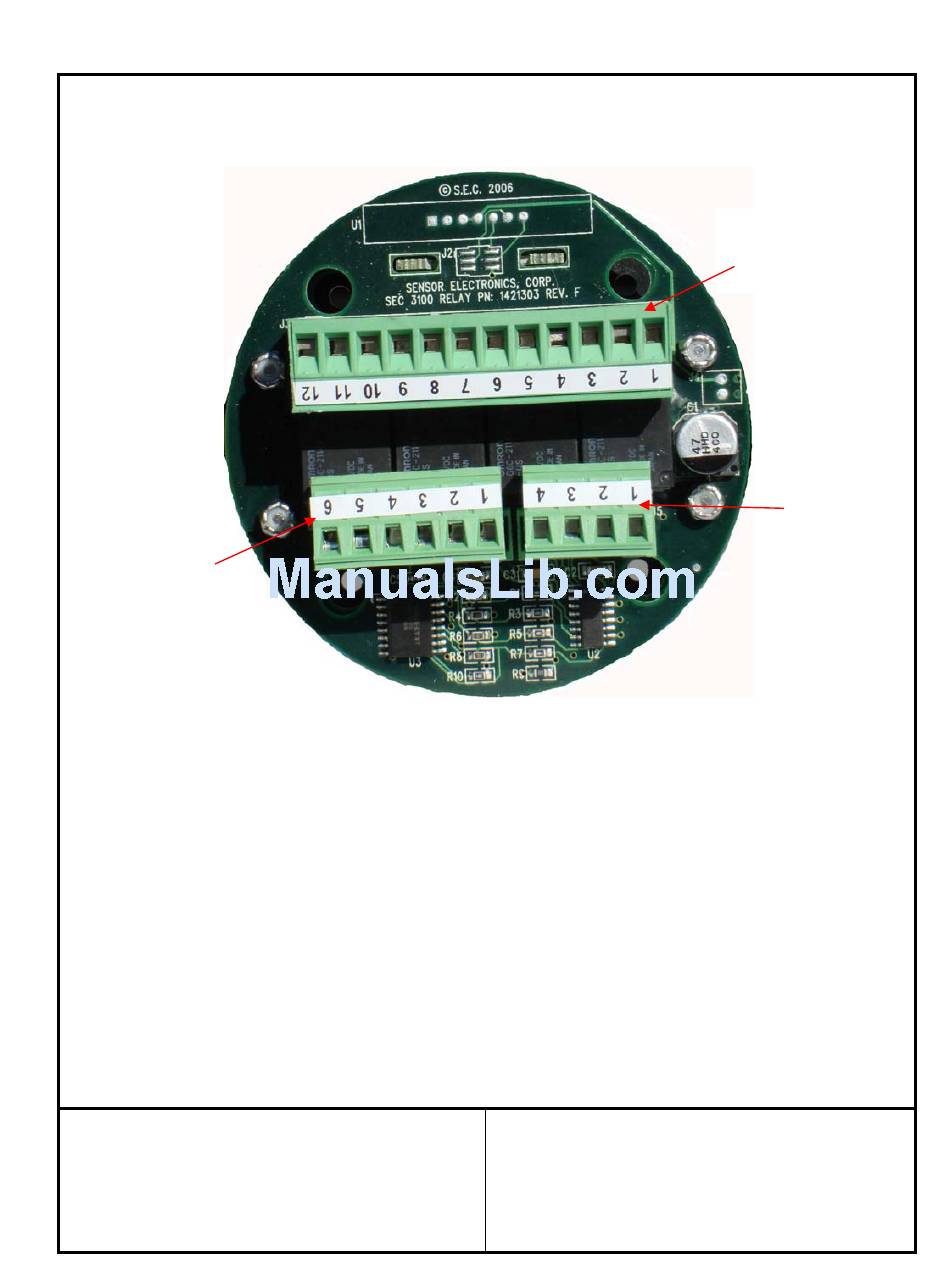

FIGURE 2
BACK VIEW OF SEC 3100
SEC 3100 WIRING
TB 1
RELAY
WIRING
TB 3
SENSOR
WIRING
TB 3
(1) WHITE
(DATA/CAL)
(2) BLUE OR GREEN
(4-20 mA)
(3) RED
(+24 VDC)
(4) BLACK
(DC COMMON)
