QUADRA
Single Unit Rack-Mount
Instructions

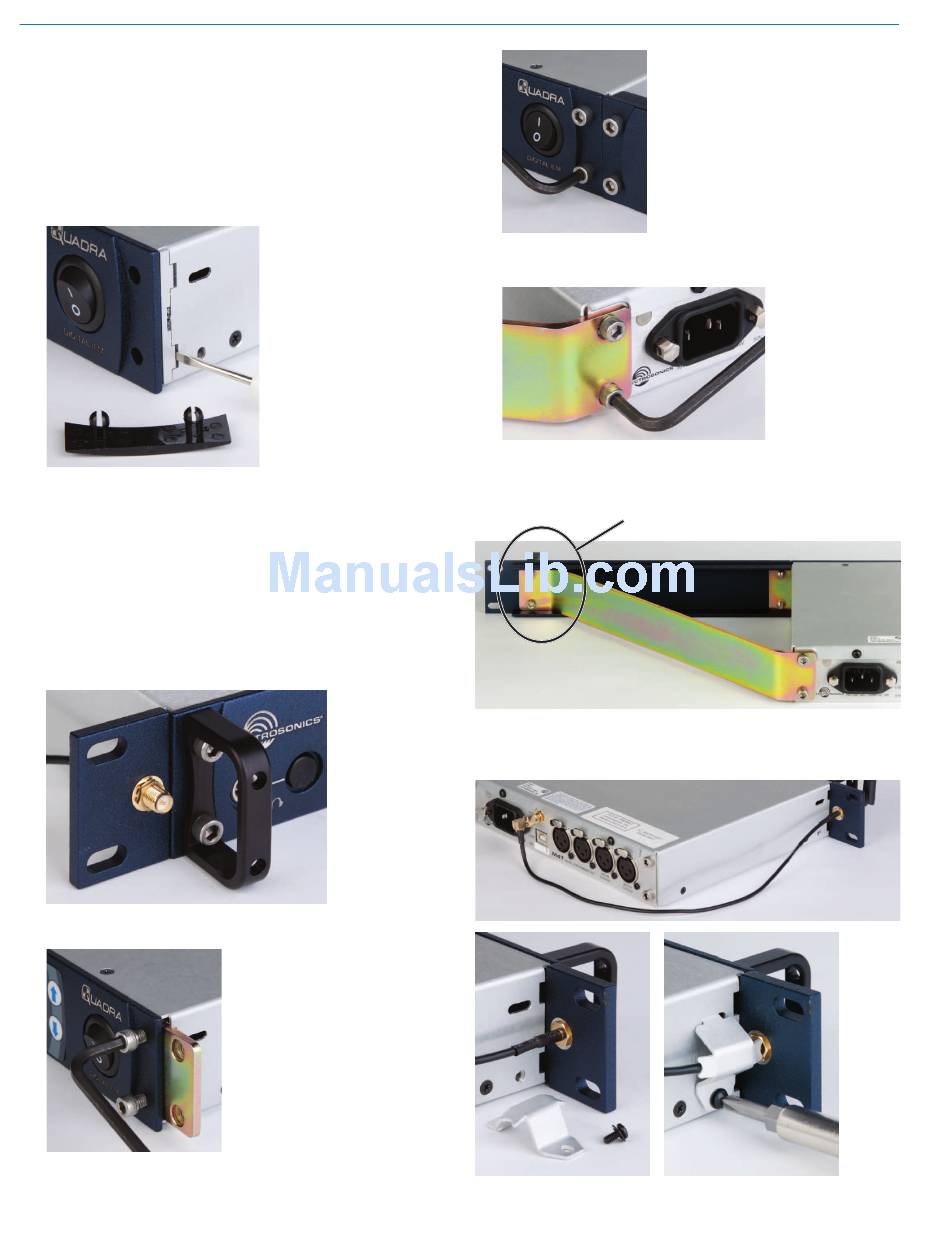

Assembling the optional RMPM4T-1 kit:
1. Remove the plastic end-caps from the front of the
M4T transmitter. Pry out the metal inserts on each
side of the transmitter with a small screwdriver
2. Attach the antenna cable to the rack ear with the
supplied nut and lock washer. Tighten with a small
wrench - do not over-tighten the nuts but make
sure they are snug enough not to work loose. In-
sert the rack ear into the left side of the transmitter
front panel.
3. Insert the rack ear and attach the handle to the
front of the panel using the supplied hex-head
bolts and hex wrench. The screws should go
through the handle, through the front panel, and
into the rack ear nuts. Tighten these bolts firmly.
4. Attach front bracket plate to right side of panel.
5. Attach the blank panel to the bracket and tighten
all four screws.
22
Plastic guards snap out
from corners. Pry out the
aluminum inserts on the
side panel with a small
screwdriver.
Insert the screws
partially, but do not
tighten them yet.
The threads in the front
adapter plate are a self-
locking type. Tighten the
screws until the heads are
flush with the front panel.
6. Mount the steel brace with the supplied screws. Do
not tighten the screws yet.
7. Attach the steel brace to the blank panel using the
supplied screws. Tighten all four screws that retain
the brace.
Install handle and bracket
with supplied screws
8. Attach the supplied antenna and antenna connec-
tor guard. Note that this item will fit tightly and is
meant to deform slightly during installation.
