NOTE: input channels that have been selected
as AES/EBU digital inputs do not allow input level
trim.
In the case where the resulting volume at the receiver
headphones or earphones is deemed insufficient,
the receiver provides makeup gain - see the receiver
Pregain setting on p. 13 in the Limiter setup screen.
NOTE: Do not "drive" this transmitter as you might be
tempted to do with an analog IEM system. Generally, it
is best to leave at least 3 dB of headroom above your
strongest peaks to ensure that you are not clipping the
audio signals.

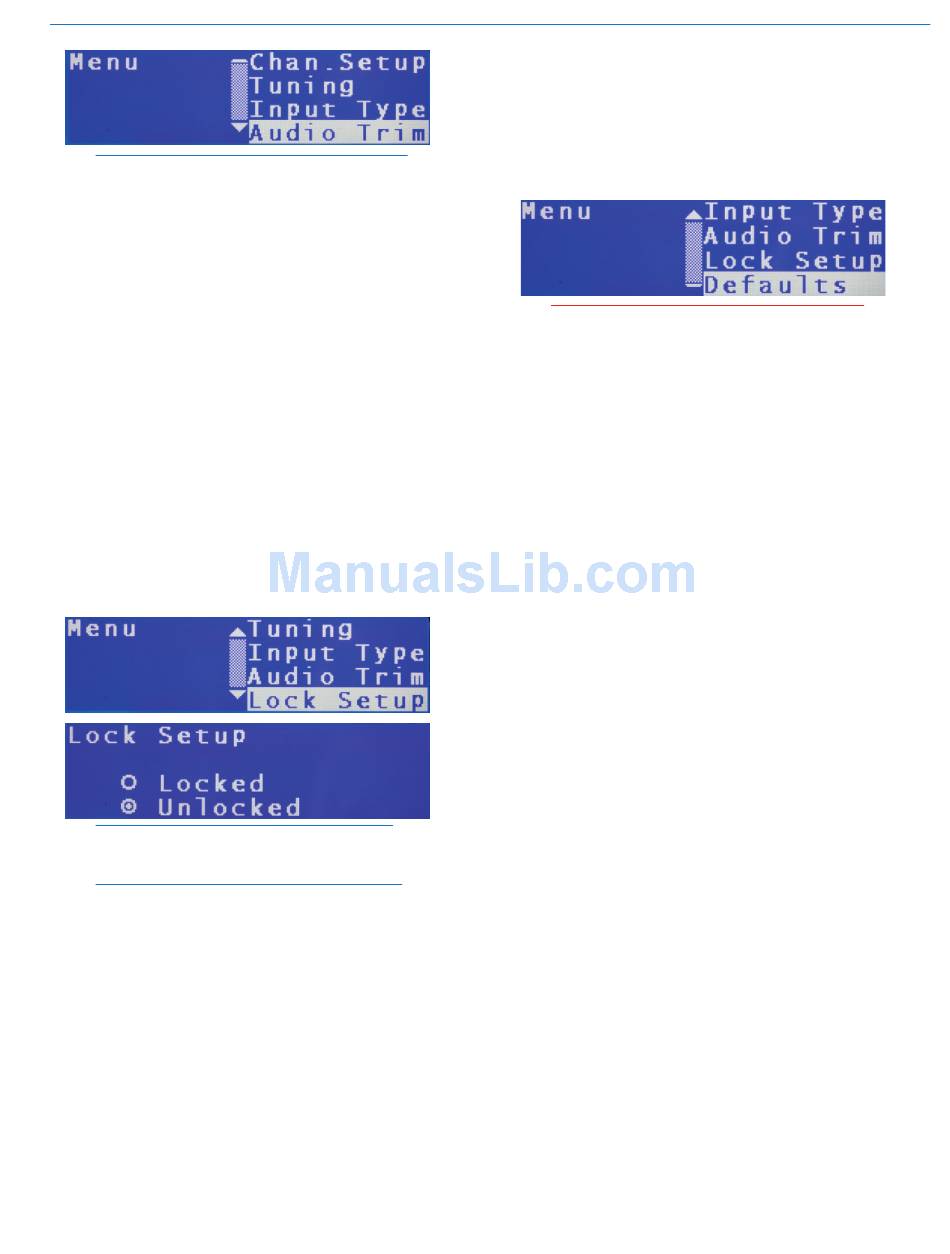

Lock Setup

The front panel buttons can be locked to prevent fur-
ther changes. Use the UP/DOWN arrows to highlight
Lock Setup and press the MENU/SEL button to enter
that screen. Use the UP/DOWN arrows to select either
Locked or Unlocked. Once Locked is selected, no
further changes can be made to the transmitter set-
tings until this same screen is entered and Unlocked
is selected. Note that the lock status is retained during
a power cycle.
NOTE: Features not affected by Lock Setup
include channel monitoring selection and
headphone volume.
NOTE: The Lock status is retained even if the
power to the transmitter is cycled.
Rio Rancho, NM

Factory Default Reset

To restore factory default settings, use the UP/DOWN
arrow buttons in the main menu to highlight Defaults,
then press the MENU/SEL button. Use the UP/DOWN
arrows to select Yes, then press the MENU/SEL but-
ton. The screen will show Defaults Restored thus
indicating that the process is complete.
CAUTION: DO NOT restore factory defaults
while someone is listening to the receiver
with headphones or earbuds - the resulting
change in levels or input type may cause a
VERY LOUD signal to be transmitted to the
receiver.
Factory Default Settings:
• 2 Channel Operation
• RF Frequency 1a (906.624 MHz)
• All Analog Inputs
• Audio Trim at -20 dB
• Unlocked
