WARNING: If the information in this manual is
not followed exactly, a fire or explosion may
result causing property damage, personal
injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
∗
Do not try to light any appliance.
∗
Do not touch any electrical switch; do not use
any phone in your building.
∗
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
∗
If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Gas Fired Vented Room
U
SERS'
O
PERATION and
M
AINTENANCE
This appliance may be installed in an
aftermarket permanently located,
manufactured home (USA only) or mobile
home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
*Conversion kit required for Propane use
7116 Beatty Dr
Mission, BC V2V 6B4
Canada

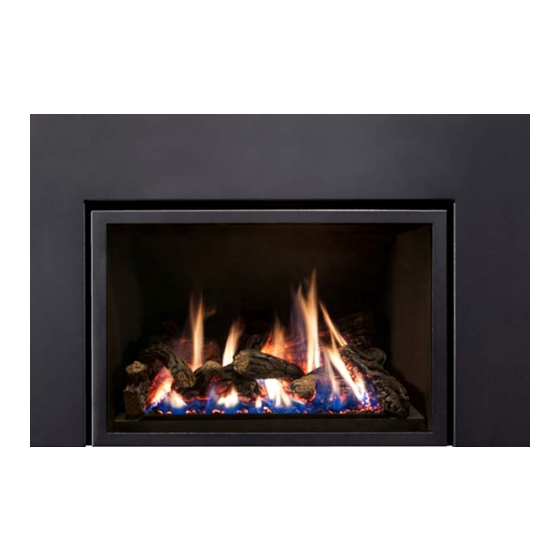

31-DVI33N
Heater (Direct Vent)
I
NSTALLATION
Tested and listed by
LABTEST Certification Inc
Richmond, British Columbia
ANSI Z21.88-2009/CSA 2.33-2009
M
ANUAL
200-0031
July 2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Archgard 31-DVI33N
Summary of Contents for Archgard 31-DVI33N
- Page 1 31-DVI33N Gas Fired Vented Room Heater (Direct Vent) SERS’ NSTALLATION PERATION and AINTENANCE ANUAL WARNING: If the information in this manual is This appliance may be installed in an not followed exactly, a fire or explosion may aftermarket permanently located,...
- Page 3 INTRODUCTION Congratulations on choosing an Archgard Gas Fireplace! The 31-DVI33N is one of the most advanced Direct Vent Insert heaters available today. It is solidly designed using the latest technology and manufactured to the highest quality. It is our aim to provide you with an appliance for many trouble-free years of reliable service.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Caution and Safety Instructions Appliance Certification, Installation Codes and Specifications Rating Plate Control Panel Locations Appliance Dimensions and Minimum Requirements for Fireplace Dimensions Factory Built (metal) Fireplace Requirements Clearance to Combustibles Gas Connections Conversion Kit Instructions 13-14 Appliance Description, Leveling the Appliance and Electrical Requirements Venting Instructions 16-17... -
Page 5: Caution And Safety Instructions
31-DVI33N CAUTION FOR YOUR SAFETY - Do not install or operate your Archgard 31-DVI33N without reading and understanding this manual. Any installation or operational deviation from this instruction manual voids the Archgard Industries Warranty and may prove hazardous. This appliance must be installed by a qualified gas installer and the installation must conform to the installation codes. -
Page 6: Appliance Certification, Installation Codes And Specifications
31-DVI33N APPLIANCE CERTIFICATION This appliance was listed by LABTEST Certification Inc to the following USA and Canadian gas appliance standards. - ANSI Z21.88-2009/CSA 2.33-2009 Vented Gas Fireplace Heaters - CAN/CGA-2.17-M91, Gas-Fired Appliances for Use at High Altitudes -CSA P.4.1-09 testing method for measuring annual fireplace efficiency. -
Page 7: Rating Plate
31-DVI33N RATING PLATE... -
Page 8: Control Panel Locations
31-DVI33N CONTROL PANEL LOCATIONS The control panels can be mounted in the following different ways. They are shipped in the “Controls In” configu- ration. They can be moved to the “Controls Out” configuration by removing the two mounting screw on each side and swinging the panels out and replacing the screws. -
Page 9: Appliance Dimensions And Minimum Requirements For Fireplace Dimensions
31-DVI33N MINIMUM FIREPLACE DIMENSIONS Min flue size required 4” (102) x 7” (178) SIDE TOP VIEW VIEW TOP VIEW CONTROLS OUT DIMENSIONS DIMENSIONS “Controls Out” “Controls In” 20-1/4” (514 mm) 20-1/4” (514 mm) TOP VIEW 14” (356 mm) 15 1/2” (394 mm) CONTROLS IN 19”... -
Page 10: Factory Built (Metal) Fireplace Requirements
31-DVI33N Factory –Built (metal) Wood-Burning Fireplace Requirements Any parts that are removed must be saved and re-installed if the insert is ever removed. The damper (A) and grate (B) must be removed The smoke shelf ©, internal baffles (D), screen ( E), masonry lining or refractory (G and I), and metal or glass doors (F) may be removed. -
Page 11: Clearance To Combustibles
31-DVI33N CLEARANCES TO COMBUSTIBLES WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury or loss of life. CAUTION: This appliance is designed for use in any masonry or factory-built, wood-burning fireplace. -
Page 12: Gas Connections
31-DVI33N GAS CONNECTIONS Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve. -
Page 13: Conversion Kit Instructions
31-DVI33N CONVERSION KIT INSTRUCTIONS IMPORTANT: This fireplace is Natural gas ready. If converting to LP gas, follow instructions below WARNING: This conversion kit shall be installed by a qualified service agency in accordance with the manufacturers instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or productions of carbon mon- oxide may result, causing property damage, personal injury or loss of life. -
Page 14: Conversion Kit Instructions
31-DVI33N CONVERSION KIT INSTRUCTIONS CONT. CONVERT THE GAS CONTROL VALVE, MAIN CONTROL MODULE AND REMOTE GAS CONTROL VALVE: Unscrew the threaded regulator cap on the control valve. Press down on pressure regulator tube and rotate 90 degrees. The tube should only come up half way for LP after released and the line should point to LP. -
Page 15: Appliance Description, Leveling The Appliance And Electrical Requirements
ELECTRICAL CONNECTIONS The 31-DVI33N comes complete with a temperature-activated fan and rheostat installed and wired to a three-prong (grounding) plug for your protection against shock hazard and should be plugged in directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug. -
Page 16: Venting Instructions
“open” position. Temporarily disabling the damper with braces, The 31-DVI33N showing the Fresh Air Intake and Exhaust locations. These connections are labeled for you. -
Page 17: Venting Instructions
31-DVI33N VENTING INSTRUCTIONS 999-INS-TK Instructions for use with Archgard vertical termination cap. Part # 999-INS-TK Install the termination cap being sure to provide sufficient space (around and on top) so as not to impede the flow of air, both into and out of the cap. This cap is only to be used for non combusti- ble installations. -
Page 18: Surround Installation And Rocker Switch Wiring
31-DVI33N SURROUND INSTALLATION Surround options available are dependent upon the control panel configuration. (See Control Panel Locations regarding configuration.) Shallow surround options are not available on a unit with ‘Controls Out’ configuration. Make sure the gas and electrical lines are properly connected to the appliance. Slide the unit into the fireplace and slide the excess flue liner material back onto the chimney. -
Page 19: Log Placement
31-DVI33N LOG PLACEMENT The Archgard pan burner bed and fiber logs are designed to give a realistic fire package, and cre- ated to look the same as the day they were originally installed. Care must be given when first in- stalling the logs, and if removed for servicing, as they can be damaged or broken if not handled properly. - Page 20 31-DVI33N Logs LOG 1 LOG 7 LOG 4 LOG 5 LOG 3 LOG 6 LOG 2...
-
Page 21: Log Placement
31-DVI33N LOG PLACEMENT... Continued Step 1. Locate Log 1 and align the holes in the bottom line up with the two locater pins. Push the top of the log up so it is against the back shelf. Push down firmly onto locater pins. - Page 22 31-DVI33N LOG PLACEMENT... Continued Step 3. Locate Log 3 and align the two holes in the log with the two locater pins on the left of the burner. Push down onto locator pins as shown. LOG 3 Step 4. Locate Log 2 and align the two holes in the log with the two locater pins on the right side of the burner.
- Page 23 31-DVI33N LOG PLACEMENT... Continued Step 5. Locate Log 5 and align the hole in the bottom with the pin in log 3. Place the other end of the log in the saddle of log 1. LOG 5 Step 6. Locate Log 6 and align the hole in the bottom with the locater pin in log 4. Place the other end of the log on the burner and pulled forward against log 2.
- Page 24 31-DVI33N Step 7. Locate Log 4 and align the hole in the bottom with the pin on the burner surround tray. Place the other end onto log 2 as shown. LOG 4 Step 8. Place black embers around logs as shown , do not block the holes in the burner.
-
Page 25: Final Installation Check And Initial Operation
31-DVI33N FINAL INSTALLATION CHECK Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. Archgard recommends that before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and that the electrical system is in working order. -
Page 26: First Fire And Lighting Instructions (Caution)
31-DVI33N FIRST FIRE When operated for the first few times, the appliance will emit some odor and fumes. This is due to the heat from the appliance evaporating the oils and solvents used in fabricating the appliance. Close off the room to the rest of the house and open all windows. Keep the room well ventilated, as smoke alarm may sound. -
Page 27: Lighting Instructions On Rating Plate
31-DVI33N LIGHTING INSTRUCTIONS ON RATING PLATE... -
Page 28: Remote Control Setup And Operation
31-DVI33N REMOTE CONTROL SETUP AND OPERATION... - Page 29 31-DVI33N REMOTE CONTROL SETUP AND OPERATION CONT.
- Page 30 31-DVI33N REMOTE CONTROL SETUP AND OPERATION CONT.
- Page 31 31-DVI33N REMOTE CONTROL SETUP AND OPERATION CONT.
- Page 32 31-DVI33N REMOTE CONTROL SETUP AND OPERATION CONT.
-
Page 33: Glass Door Removal / If Your Glass Should Break
Push the finger rings back in. FIGURE 2 FIGURE 1 IF YOUR GLASS BREAKS In the event your glass cracks or breaks, Archgard recommends that a new door assembly be ordered to replace the original door. • Remove door as per the instructions above. -
Page 34: Maintenance And Cleaning The Appliance
Regularly: • Frequent cleaning of the ceramic glass is required. Archgard recommends using a good quality “gas fireplace” glass cleaner that is available at any hearth retail location. DO NOT CLEAN WHILE HOT. -
Page 35: Servicing Under Warranty And Adjusting Primary Air
31-DVI33N SERVICING UNDER WARRANTY Before servicing, read the terms and conditions of the Archgard warranty at the back of the manual. Contact the authorized Archgard dealer where you purchased the appliance from and provide them with details of the problem, along with the initial installation information (from the front of this manual). -
Page 36: Checking Inlet/Outlet Gas Pressures, Adjusting Pilot And Convertible Pilot Orifice
31-DVI33N CHECKING INLET AND OUTLET GAS PRESSURE 1. Remove the surround. 2. The pressure test taps are located on the valve. The taps are located in the gas valve front face. The inlet is marked ‘IN’ and the outlet is marked ‘OUT’. See Fig.1. -
Page 37: Replacing Convection Blower
31-DVI33N REPLACING CONVECTION BLOWER CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical code, CSA C22.1. -
Page 38: Wiring Schematic
31-DVI33N WIRING SCHEMATICS... -
Page 39: Fiber Logs
31-DVI33N LOG 1 LOG 7 LOG 4 LOG 5 LOG 2 LOG 3 LOG 6 Item # Item Description Unit 310-634720-1 Log 1 (Left Rear) 310-634720-2 Log 2 (Right Mid) 310-634720-3 Log 3 (Left Mid) 310-634720-4 Log 4 (Right) 310-634720-5 Log 5 (Left Top) -
Page 40: Warranty
Problem Description ❖ NOTE: Warranty may be void if work is carried out by an unqualified person (s). Only original Archgard parts may be used. Please consult your Archgard dealer or representative if in doubt about a replacement part (s). -
Page 41: Frequently Asked Questions
Q. My fan/blower makes a “whirring” or “humming” noise. A. Your Archgard gas appliance uses a powerful fan to push heated air into your room. It is not unusual to hear a “humming” noise when your fan is running. Note: the sound will change depending on the set- ting that your fan speed control is set at. -
Page 42: Replacement Parts List
31-DVI33N REPLACEMENT PARTS LIST - ARCHGARD 31-DVI33N Item # Item Description Unit 200-0031 Owner’s Manual 305-1600 Replacement Fan, twin blower 308-6001 Igniter, Skytech Electronic Control Module 308-6002 Adaptor, Skytech orifice plug in 308-6003 Battery, Back-up Skytech 308-6004 Transmitter, Skytech hand held remote... -
Page 43: Notes
31-DVI33N NOTES... -
Page 44: Notes
31-DVI33N NOTES... -
Page 45: Warranty Registration Card
POSTAGE WARRANTY REGISTRATION RCHGARD NDUSTRIES 7116 BEATTY DRIVE MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE FOLD DOWN AT LINE & TAPE CLOSED 31-DVI33N Model # : Serial #: Date Installed: yyyy Name: Address: City: State/Prov: ZIP: Phone: ( _____ ) Dealer's Name &... - Page 46 Archgard Industries Ltd. 7116 Beatty Drive Mission, B.C. V2V 6B4 Canada Website: www.archgard.com...
