Archgard 31-DVIM33C Users Installation Operation & Maintenance Manual

Gas fired vented room heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
f i r e - p a r t s . c o m
W A R N I N G
If the information in these instructions are not followed
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use
any phone in your building.
Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
If you cannot reach your gas supplier, call the
fire department.
Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
Gas Fired Vented Room
Heater (Direct Vent)
USERS' INSTALLATION,
MAINTENANCE MANUAL
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA only)
or mobile home, where not prohibited by local codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This appliance is
not convertible for use with other gases, unless a
certified kit is used.
*Conversion kit required for Propane use
LABTEST Certification Inc
7116 Beatty Dr
Richmond, British Columbia
Mission, BC V2V 6B4
ANSI Z21.88-2009/CSA 2.33-2009
Canada
31-DVIM33C
S/N 200001 And up
OPERATION and
Tested and
listed by
200-1231
MAY 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 31-DVIM33C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Archgard 31-DVIM33C

Summary of Contents for Archgard 31-DVIM33C

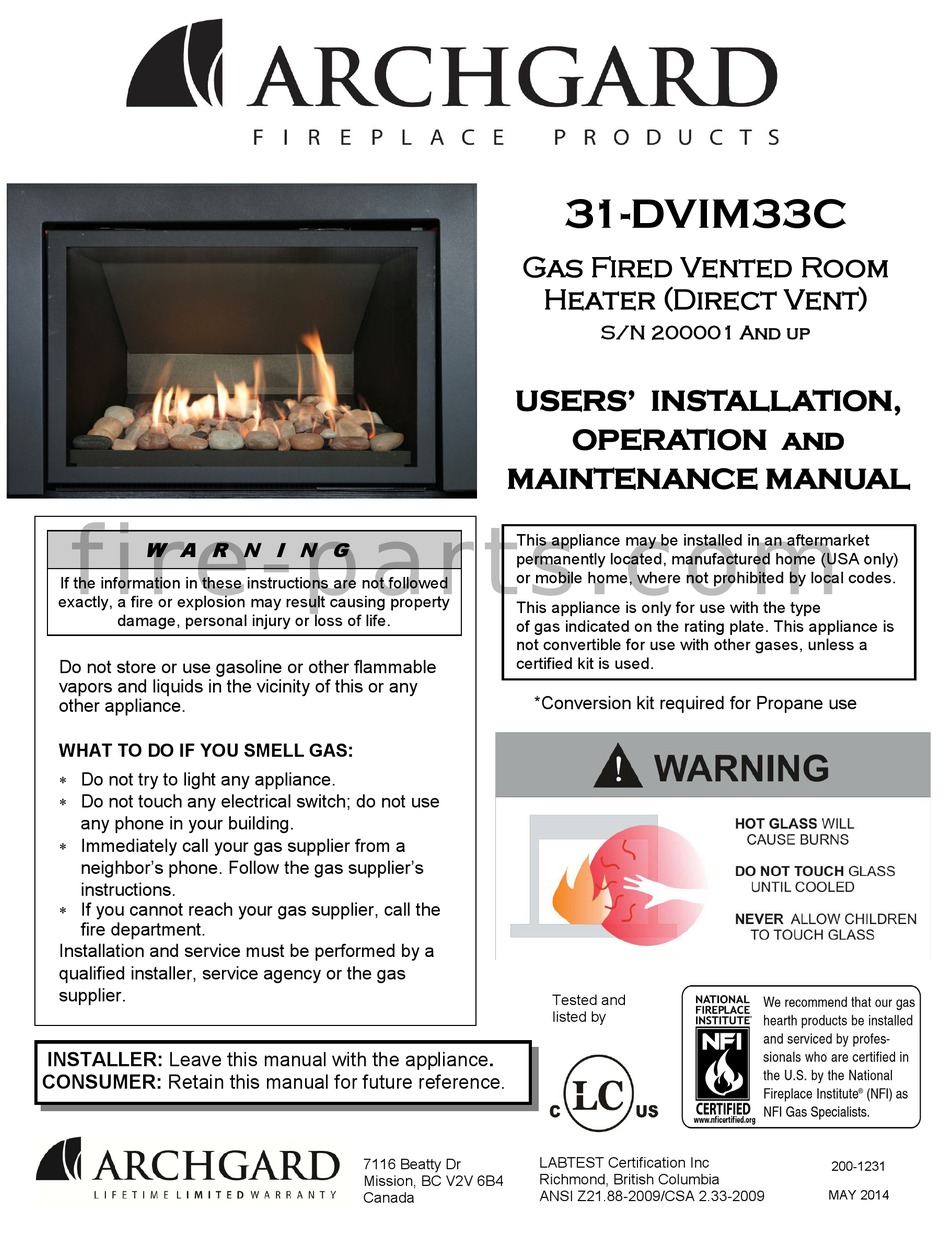

  • Page 1 31-DVIM33C Gas Fired Vented Room Heater (Direct Vent) S/N 200001 And up USERS’ INSTALLATION, OPERATION and MAINTENANCE MANUAL f i r e - p a r t s . c o m This appliance may be installed in an aftermarket...
  • Page 2 STATE OF MASSACHUSETTS REQUIREMENTS 5.08: Modifications to NFPA-54, Chapter 10 (2) Revise 10.8.3 by adding the following additional requirements: (a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Caution and Safety Instructions Appliance Certification, Installation Codes and Specifications Rating Plate Configure the fireplace - Control Panel Locations, Appliance Dimensions Minimum Fireplace Opening Dimensions, Sealing the Vent Factory Built (metal) Fireplace Requirements 10-11 Mantle & Sidewall Clearances Gas Connections 14-15 Conversion Kit Instructions...
  • Page 4  Electronic Control System The 31-DVIM33C uses a gas control valve that is operated by Multifunction Remote Control. It can be used as either an Intermittent or Standing Pilot system.

  • Page 5: Caution And Safety Instructions

    Y O U R S A F E T Y Do not install or operate your Archgard 31-DVIM33C without reading and understanding this manual. Any installation or operational deviation from this instruction manual voids the Archgard Industries Warranty and may prove hazardous.

  • Page 6: Appliance Certification, Installation Codes And Specifications

    The listing label is attached to the appliance on the bottom right side of the appliance. A copy is shown on page ?? Please contact Archgard Industries Ltd., if you have any questions regarding the certification of this appliance. INSTALLATION CODES This appliance must be installed by a qualified gas appliance installer.

  • Page 7: Rating Plate

    CAN/CSA C22.1 actuel au Canada et ANSI/NFPA 70 aux É.-U. Cet appareil est certifié pour l’installation dans une chambre à coucher ou une pièce qui sert de chambre. Made in Canada by / Fabrique au Canada par: Archgard Industries Ltd. 7116 Beatty Dr., Mission, B.C. Aug 2013 303-6031-2 We recommend that our gas hearth products be installed and serviced by professionals who are certified in the U.S.

  • Page 8: Configure The Fireplace - Control Panel Locations, Appliance Dimensions

    31-DVIM33C CONFIGURE THE FIREPLACE - CONTROL PANEL LOCATIONS The control panels can be mounted in the following different ways. They are shipped in the “Controls In” configuration. They can be moved to the “Controls Out” configuration by removing the two mounting screw on each side and swinging the panels out and replacing the screws.

  • Page 9: Minimum Fireplace Opening Dimensions, Sealing The Vent

    31-DVIM33C MINIMUM FIREPLACE OPENING DIMENSIONS Masonry Fireplace Min flue size required TOP VIEW SIDE VIEW 4” (102) x 7” (178) Fig. 9-B Fig. 9-A f i r e - p a r t s . c o m DIMENSIONS 20-1/4”...

  • Page 10: Factory Built (Metal) Fireplace Requirements

    31-DVIM33C Factory –Built (metal) Wood-Burning Fireplace Opening Requirements Fig. 10-A I N S T A L L E R N O T E S The installer must mechanically attach a marking to the inside of the firebox of the fireplace into which the gas f i r e - p a r t s .
  • Page 11 31-DVIM33C W A R N I N G Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. W A R N I N G Any hearth extending out in front of the insert must not have any portion above 7”...

  • Page 12: Mantle & Sidewall Clearances

    31-DVIM33C MANTLE CLEARANCES W A R N I N G Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury. Fig. 12-A...

  • Page 13: Gas Connections

    31-DVIM33C GAS CONNECTIONS Before connecting the appliance to the gas supply line, double check that the appliance you have purchased is designed for the gas type you are using. The gas type markings are located on the certification label and also on the appliance’s gas valve.

  • Page 14: Conversion Kit Instructions

    31-DVIM33C CONVERSION KIT INSTRUCTIONS W A R N I N G This conversion kit shall be installed by a qualified service agency in accordance with the manufacturers instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a fire, explo- sion or productions of carbon monoxide may result, causing property damage, personal injury or loss of life.
  • Page 15 Install the LP identification label to the valve (found in kit). View from top of pilot head Affix Archgard Manufacturer’s label (part # 303-0128) in a conspicuous location. We suggest a location close to the gas control NG gas position NO 1/16”...

  • Page 16: Appliance Description, Leveling The Appliance And Electrical Requirements

    Fig. 16-A LEVELING THE 31-DVIM33C f i r e - p a r t s . c o m Front Level Located slightly in from the front edge of the fireplace is the new level- ing feature. Leveling bolts can be installed to enable you to raise the front of the firebox if necessary.

  • Page 17: Venting Instructions

    DO NOT REVERSE THESE CONNECTIONS Fig. 17-A C A U T I O N The 31-DVIM33C requires (2) flexible flue liners To ensure that the venting is not accidentally obstructed or punctured, the damper of the host fireplace must be permanently disabled.
  • Page 18 31-DVIM33C VENTING INSTRUCTIONS 999-INS-TK Instructions for use with Archgard vertical termination cap. Part # 999-INS-TK Install the termination cap being sure to provide sufficient space (around and on top) so as not to impede the flow of air, both into and out of the cap. This cap is only to be used for non combustible installations. Do not recess into the top of the chim- ney.

  • Page 19: Optional Wall Switch / Wiring Schematic, Fan Wiring Diagram

    If a wall mounted switch or a wall mounted thermostat is desired, Archgard recommends that the device be wired as shown in the diagram below. NOTE: Archgard Industries does not manufacture or sell any type of wall switch or wall thermostat and will not extend warranty to them...

  • Page 20: Restrictor Plate, Surround Installation And Rocker Switch Wiring

    31-DVIM33C VENT RESTRICTOR INSTALLATION When the vent is over 18’(5.5m) a vent restrictor may be required. The installation of the restrictor will equalize the vent stack action that can cause problems with a proper fire set-up. The vent restrictor is supplied loose in the manual bag. When required, it installs onto the upper baffle in the center portion.

  • Page 21: Fire Bead Installation

    31-DVIM33C Fire Bead Installation f i r e - p a r t s . c o m Fig. 21-A W A R N I N G Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.

  • Page 22: River Rock Installation

    31-DVIM33C River Rock Installation Shown with 31-SKHSBS Surround Fig. 22-A f i r e - p a r t s . c o m Fig. 22-B Fig. 22-C Distribute the rocks evenly around the burner to personal preference. Care must be taken that you DO NOT cover burner ports with any of the “large”...

  • Page 23: Glass Door Removal / If Your Glass Should Break

    Do not operate appliance with the glass front cracked or broken. Replacement of the glass should be done by a licensed or qualified service person. IF YOUR GLASS BREAKS In the event your glass cracks or breaks, Archgard recommends that a new door assembly be ordered to re- place the original door. ...

  • Page 24: Final Installation Check And Initial Operation

    31-DVIM33C FINAL INSTALLATION CHECK Each Archgard Gas Fireplace is checked and tested at the factory prior to being packaged and shipped to our dealers and finally installed in your home. Archgard recommends that before leaving this unit with the customer, the installer must ensure that the appliance is firing correctly and that the electrical system is in working order.

  • Page 25: First Fire And Lighting Instructions (Caution)

    31-DVIM33C FIRST FIRE A T T E N T I O N When operated for the first few times, the appliance will emit some odor and fumes. This is due to the heat evaporating the oils and solvents used in the production of the fireplace.

  • Page 26: Lighting Instructions On Rating Plate

    31-DVIM33C LIGHTING INSTRUCTIONS ON RATING PLATE FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire of explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by a spark ignitor.

  • Page 27: Maintenance And Cleaning The Appliance

    Regularly:  Frequent cleaning of the ceramic glass is required. Archgard recommends using a good quality “gas fireplace” glass cleaner that is available at any hearth retail location. DO NOT CLEAN WHILE HOT.

  • Page 28: Servicing Under Warranty And Adjusting Primary Air

    31-DVIM33C SERVICING UNDER WARRANTY Before servicing, read the terms and conditions of the Archgard warranty at the back of the manual. Contact the authorized Archgard dealer where you purchased the appliance from and provide them with details of the problem, along with the initial installation information (from the front of this manual).

  • Page 29: Checking Inlet/Outlet Gas Pressures, Adjusting Pilot And Convertible Pilot Orifice

    7/16” (11 mm) wrench turn a 1/4 open then push the small metal tab across to the other side of the body and retighten. Call your local Authorized Archgard Dealer to pur- 7/16” (11 mm) chase the correct fuel conversion kit for...

  • Page 30: Replacing Comfort Blower

    31-DVIM33C REPLACING COMFORT BLOWER C A U T I O N Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Verify proper operation after servicing This appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical code, CSA C22.1.

  • Page 31: Troubleshooting

    31-DVIM33C TROUBLESHOOTING Please check to make sure the instructions are followed exactly before attempting troubleshooting of the appliance. W A R N I N G Troubleshooting and servicing of gas and electrical devices of the appliance should only be conducted by a qualified service technician.
  • Page 32 31-DVIM33C TROUBLESHOOTING Cont... SYMPTOM ACTION The main burner does not turn 3. Check to make sure the thermostat is set high enough to turn on the on with the pilot lit. Cont... appliance. 4. Check that the remote switch or the thermostat is turned on.

  • Page 33: Warranty

    This Limited Warranty is made by ARCHGARD INDUSTRIES LTD., hereinafter referred to as “Archgard”. Archgard warrants to the original purchaser of an Archgard gas burning fireplace (s) that the product will be free of defects in materials and workmanship under normal use and service, for a “lifetime”.

  • Page 34: Frequently Asked Questions

    Q. My fan/blower makes a “whirring” or “humming” noise. A. Your Archgard gas appliance uses a powerful fan to push heated air into your room. It is not un- usual to hear a “humming” noise when your fan is running. Note: the sound will change depending on the setting that your fan speed control is set at.

  • Page 35: Replacement Parts List

    31-DVIM33C REPLACEMENT PARTS LIST - 31-DVIM33C Item # Item Description Unit 308-0013 Valve, SIT 820 Nova, Hi/Low Natural Gas 308-0008 Piezo Igniter (Sparker) 301-0068 Orifice (Main Burner Orifice) Drill to # 33 DMS for Natural Gas Orifice (Main Burner Orifice) Drill to # 51 for LP (Propane) Gas...

  • Page 36: Notes

    31-DVIM33C NOTES f i r e - p a r t s . c o m...

  • Page 37: Notes

    31-DVIM33C NOTES f i r e - p a r t s . c o m...

  • Page 38: Warranty Registration Card

    MISSION, B.C. CANADA V2V 6B4 FOLD DOWN AT LINE f i r e - p a r t s . c o m FOLD DOWN AT LINE & TAPE CLOSED 31-DVIM33C Model # : Serial #: Date Installed: yyyy Name:...
  • Page 39 f i r e - p a r t s . c o m...
  • Page 40 Archgard Industries Ltd. 7116 Beatty Drive f i r e - p a r t s . c o m Mission, B.C. V2V 6B4 Canada Website: www.archgard.com...
