AKPM 759
User and maintenance manual

Advertisement

Table of Contents
loading

Related Manuals for Whirlpool AKPM 759

Summary of Contents for Whirlpool AKPM 759

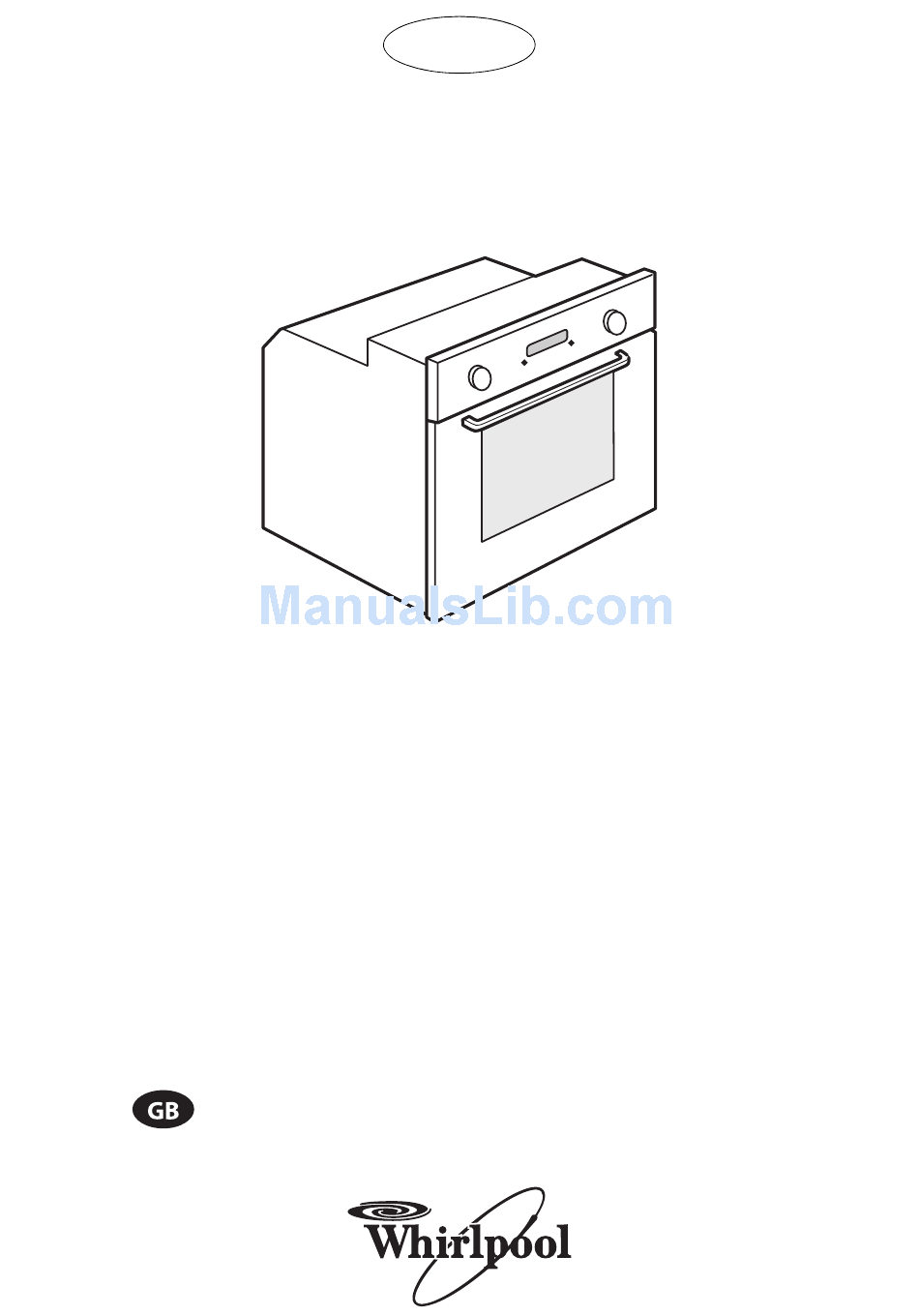

  • Page 1 AKPM 759 User and maintenance manual...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS YOUR SAFETY AND THAT OF OTHERS IS PARAMOUNT This manual and the appliance itself provide important safety warnings, to be read and observed at all times. This is the danger symbol, pertaining to safety, which alerts users to potential risks to themselves and others. All safety warnings are preceded by the danger symbol and the following terms: Indicates a hazardous situation which, if not avoided, will cause serious injury.

  • Page 4: Installation

    INSTALLATION After unpacking the oven, make sure that it has not been damaged during transport and that the oven door closes properly. In the event of problems, contact the dealer or your nearest After-sales Service. To prevent any damage, only remove the oven from its polystyrene foam base at the time of installation.

  • Page 5: Cleaning

    TROUBLESHOOTING GUIDE The oven does not work: • Check for the presence of mains electrical power and if the oven is connected to the electrical supply. • Turn off the oven and restart it to see if the fault persists. AFTER-SALES SERVICE Before calling the After-Sales Service: See if you can solve the problem yourself with the help of the suggestions given in the “Troubleshooting guide“.

  • Page 6: Moving Top Heating Element

    MAINTENANCE Use safety gloves. WARNING Ensure the oven is cold before carrying out the following operations. Disconnect the oven from the power supply. REMOVING THE DOOR To remove the door: Open the door fully. Lift the catches and push them forwards as far as they will go (Fig. 1). Close the door as far as it will go (A), lift it up (B) and turn it (C) until it is released (D) (Fig.

  • Page 7: Replacing The Oven Lamp

    REPLACING THE OVEN LAMP To replace the rear lamp (if present): Disconnect the oven from the power supply. Unscrew the lamp cover (Fig. 6), replace the lamp (see note for lamp type) and screw the lamp cover back on. Reconnect the oven to the power supply. To replace the side lamp (if present): Disconnect the oven from the power supply.

  • Page 8: Instructions For Oven Use

    INSTRUCTIONS FOR OVEN USE FOR ELECTRICAL CONNECTION, SEE THE PARAGRAPH ON INSTALLATION Control panel Upper heating element/grill Cooling fan (not visible) Dataplate (not to be removed) Light Turnspit (if present) Lower heating element (hidden) Door 10. Position of shelves (the number of shelves is indicated on the front of the oven) 11.

  • Page 9: Control Panel Description

    INSERTING WIRE SHELVES AND OTHER ACCESSORIES IN THE OVEN The wire shelf and other accessories are provided with a locking mechanism to prevent their accidental removal. Fig. 1 Insert the wire shelf horizontally, with the raised part “A” upwards (fig. 1). Angle the wire shelf when it reaches the locking position “B”...

  • Page 10: Function Description Table

    FUNCTION DESCRIPTION TABLE MANOPOLA FUNZIONI To stop cooking and switch off the oven. LAMP To switch the oven light on/off. To cook any kind of dish on one shelf only. Use the 3rd shelf. Preheat the oven to the required CONVENTIONAL temperature.

  • Page 11: Cooking Tables

    COOKING TABLES Recipe Function Preheating Shelf Temperature Time Accessories (from bottom) (°C) (min) 150-175 35-90 Cake tin on wire shelf Leavened cakes Shelf 4: cake tin on wire shelf (switch levels halfway through cooking) 150-170 30-90 Shelf 1: cake tin on wire shelf Drip tray/ baking tray or cake tin on 150-190 30-85...
  • Page 12 Recipe Function Preheating Shelf Temperature Time Accessories (from bottom) (°C) (min) Lasagna / Baked pasta / Cannelloni / 45-55 Oven tray on wire shelf Flans Lamb / Veal / Beef / 80-110 Drip tray or oven tray on wire shelf Pork 1 Kg Chicken / Rabbit / 50-100 Drip tray or oven tray on wire shelf...

  • Page 13: Recommended Use And Tips

    RECOMMENDED USE AND TIPS How to read the cooking table The table indicates the best function to use for any given food, to be cooked on one or more shelves at the same time. Cooking times start from the moment food is placed in the oven, excluding pre-heating (where required). Cooking temperatures and times are purely for guidance and will depend on the amount of food and type of accessory used.
  • Page 14 GB12...
  • Page 16 Printed in Italy 06/2010 5019 310 01134...
