Product Datasheet

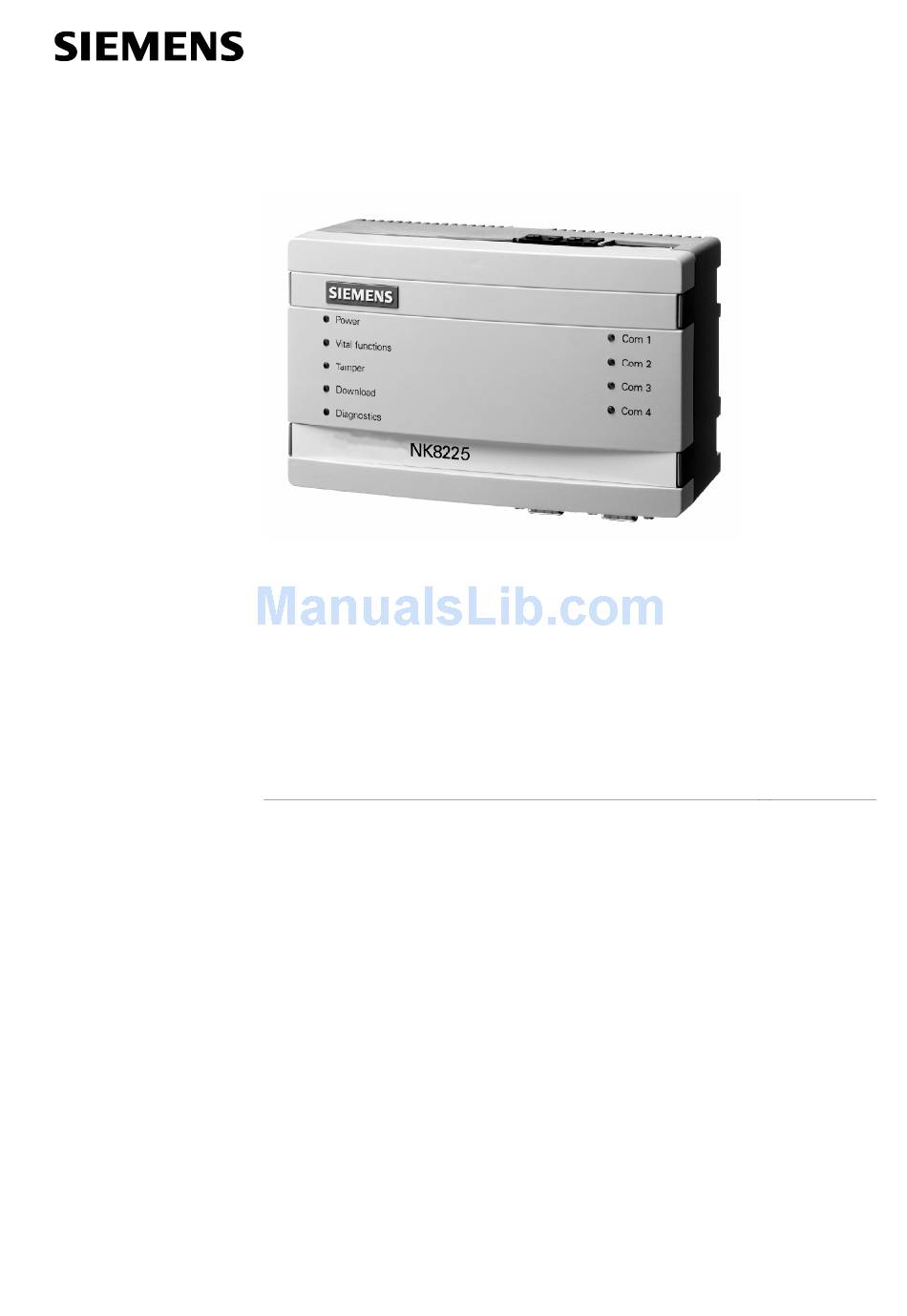

NK8225 Ethernet Port with
BACnet Gateway
The NK8225 Ethernet Port with BACnet Gateway is used to connect local
and distributed safety and security devices to DMS8000 Management
TM
Stations, and DESIGO
building automation and control systems. It pro-
vides a first level of centralisation, and converts the native protocols of the
safety and security devices to BACnet.
Allows to build Total Building Solutions with DMS8000 and DESIGO INSIGHT
Management Stations, and DESIGO PX automation units
Provides BACnet connectivity for AlgoRex CS114x fire detection systems,
Guarto CS6 and Sintony SI410 intrusion detection systems to the DESIGO
building automation and control system
Integrated interaction machine supporting logical combinations between lo-
cally connected subsystems
Based on the standards BACnet/IP and Ethernet
NK8225 is based on a flexible, high performance hardware platform, that has
been specifically designed for safety and security applications
Supplied in a plastic box, easy to install on DIN-rails
Optional housing solutions with autonomous power supply
Building Technologies
Fire Safety & Security Products
NK8000
MP3.20

Advertisement

   Related Manuals for Siemens NK8225

   Summary of Contents for Siemens NK8225

  • Page 1 NK8000 MP3.20 NK8225 Ethernet Port with BACnet Gateway The NK8225 Ethernet Port with BACnet Gateway is used to connect local and distributed safety and security devices to DMS8000 Management Stations, and DESIGO building automation and control systems. It pro- vides a first level of centralisation, and converts the native protocols of the safety and security devices to BACnet.
  • Page 2 Connectivity Connectivity example Upstream connectivity:  BACnet/IP on Ethernet connectivity for connection to local and remote management stations (DMS8000 and / or DESIGO INSIGHT);  Conversion of native protocols (CS114x AlgoRex, CS6 MP3, SI410 Sintony) to BACnet for DESIGO;  Simultaneous multiple host connectivity (up to four);...
  • Page 3 2 x DF8040 units, Simatrix, Philips-Burle CCTV 1 x DF8020 crossbar, CF9000 I/O system, … The NK8225 employs industry standard x86 CPUs and PC104 extension boards, and is composed of:  Base board with power supply, CPU, and basic configuration of interfaces;...
  • Page 4 NE8002 Wall-mountable, metallic cabinet with DIN-rail. Parameterisation The NK8225 configuration is part of the Composer tool environment. To perform the SW-configuration for NK8225, a WW8000 Composer license is required. The configuration tool includes connection parameters, as well as interaction parame- ters (with AND, OR, XOR, and NOT logic combinations).
  • Page 5 I C bus. The following figure shows the various subsystem connections of NK8225’s in a Total Building Solution (TBS) with DMS8000 and DESIGO INSIGHT. Example of a Total Building Solution with DMS8000 / DESIGO INSIGHT...
  • Page 6 The following figure shows that information from the fire safety- and security systems can be used in DESIGO PX automation stations for the programming of controls. A typical application is the control of ventilation in case of a fire. BACnet/IP Ethernet DF80xx modules NK8225 (Guarto) (Guarto) PXC64-U PXC12-C SI410...
  • Page 7 Interactions Interactions are possible between the subsystems connected directly to NK8225 and the locally connected I/O modules. Incoming messages can trigger one or more com- mand messages to other subsystems. Note: Incoming messages can be combined with the logical operators AND, OR, XOR, and NOT.
  • Page 8 DF8090 is an optional, external module, which can be installed on the I C bus for moni- toring the NK8225 power supply. It detects the following conditions, shown on the DF8090 local panel (LEDs), and reported to NK8225 via I –...
  • Page 9 Technical data NK8225 Ethernet Port with BACnet Gateway Lines to local host 1 RS232 line Up to 9600 baud – Transport protocol: CMSDL – Host (single host only): – MM8000 or MK8000 equipped with NS8012 CDI-Net Driver – MT8001 Lines to remote host(s) 1 Ethernet IEEE 802.3, 10Base-T...
  • Page 10 Detailed specifications for LON network: http://www.echelon.com/support/documentation/Manuals/078-0156-01G.pdf Section: System Performance and Cable Selection – Power supply requirements Input voltage (DC power supply to NK8225 board) 10-33 Vdc – Power (NK8225 processor board) 6,34 W – Power (fully equipped NK8225) 8,34 W –...
  • Page 11 NE8001 Wall-mountable, metallic cabinet with DIN-rail support The unit includes the following pre-wired units:  and power supply for NK8225 units Power supply: Input: 100 – 240 Vac / 50-60 Hz 2A / fuse – F3.15AL / 250V / 3-pole screw connector –...
  • Page 12 Details for ordering NK8225 BACnet Gateways MP3.18 – A6E600303 NK8225.2 Base module 1 Ethernet line for remote host – 2 serial lines for subsystems – A6E600304 NK8225.4 Base module 1 Ethernet line for remote host – 4 serial lines for subsystems –...
  • Page 13 Type Doc. no Designation Product Datasheet (Sales) – NK8222 007780 Ethernet Port for a single subsystem – NK8223 007777 Ethernet Port – NK8225 009417 PICS – MM8000 006882 Management Station – MK8000 004968 OPC Server – MT8001 006952 Management Terminal –...
  • Page 14 Siemens Switzerland Ltd Building Technologies Group International Headquarters Fire Safety & Security Products Gubelstrasse 22 © 2006 Copyright by CH-6301 Zug Siemens Switzerland Ltd Tel +41 41 724 24 24 Data and design subject to change without notice. Fax +41 41 724 35 22 Supply subject to availability.
