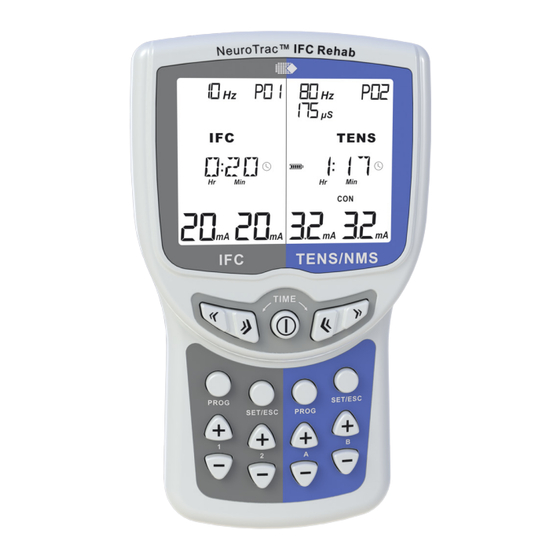

Verity Medical NeuroTrac IFC Rehab Operation Manual

Ifc stimulator/dual channel tens&nms stimulator
Hide thumbs
Table of Contents

Advertisement

Quick Links

NeuroTrac
IFC Rehab
TM
IFC Stimulator / Dual channel TENS&NMS Stimulator
Three product in one!
OPERATION MANUAL
ENG

Advertisement

Table of Contents
loading

Related Manuals for Verity Medical NeuroTrac IFC Rehab

Summary of Contents for Verity Medical NeuroTrac IFC Rehab

  • Page 1 NeuroTrac IFC Rehab IFC Stimulator / Dual channel TENS&NMS Stimulator Three product in one! OPERATION MANUAL...

  • Page 2: Table Of Contents

    NeuroTrac™ IFC Rehab Operation Manual Table of Contents 1. Contra Indications Precautions and Warnings______________ _ 3 2. Introduction to the product______________________________6 2.1. What is Pain _____________________________________ 6 2.2. What is TENS_____________________________________ 6 2.3. What is NMS_____________________________________ 7 2.4. What is Interferential stimulation(IFC)________________ 7 3.

  • Page 3: Contra Indications Precautions And Warnings

    NeuroTrac™ IFC Rehab Operation Manual 1. Contra indications Precautions and Warnings Please read the following prescription information carefully before using your NeuroTrac™ IFC Rehab. If you have any questions regarding this information, consult with your physician or therapist before proceeding. Contra indications: Do not use NeuroTrac™...
  • Page 4 NeuroTrac™ IFC Rehab Operation Manual y Stimulation should not be applied over the carotid sinus nerves, particu� larly in patients with a known sensitivity to the carotid sinus reflex. y Application of electrodes near the thorax may increase the risk of cardiac fibrillation.

  • Page 5: Adverse Reactions

    NeuroTrac™ IFC Rehab Operation Manual Precautions: Isolated cases of skin irritation may occur at the site of the electrode place� ƒ ment following long�term application. Consult your physician if skin irrita� tion develops. The effectiveness of NeuroTrac™ IFC Rehab in TENS mode is highly de�...

  • Page 6: Introduction To The Product

    NeuroTrac™ IFC Rehab Operation Manual 2. Introduction to the product NeuroTrac™ IFC Rehab is a pain control and muscle stimulator device. It combines Interferential stimulator (IFC), Transcutaneous Electrical Nerve Stimulator (TENS) and Neuromuscular Electrical stimulator (NMS) in one unit. The device consists of two independent circuits, one for IFC, another for TENS/NMS stimulation.

  • Page 7: What Is Nms

    NeuroTrac™ IFC Rehab Operation Manual These larger nerve fibres transmit less unpleasant sensations such as touch or warmth, assisting us to form an impression of our environment. Stimulating the larger nerve fibres using TENS may have the effect of inhibiting the transmission of pain along the smaller nerve fibres to the spinal cord (this effect is known as the ‘Pain Gate Theory’).

  • Page 8: Description Of Display

    NeuroTrac™ IFC Rehab Operation Manual 3. Description of display IFC side TENS/NMS side 1. Programme number 8. Programme number 2. Frequency 9. Lock status indication 3. Lock status indication 10. Programme Hz, uS 4. Mode indiction 11. Mode indication 5. Programme timer 12.
  • Page 9 NeuroTrac™ IFC Rehab Operation Manual 3. IFC SET/ESC Button: a). SET function (home screen of custom programme). Pressed and hold for 3 seconds enables to enter custom programme set up menu . b). ESC function: while programme is running pressed one time pauses the programme, reduces mA level to 0 and freezes the clock, pressed second time returns to home screen;...

  • Page 10: Operating Neurotrac™Ifc Rehab

    NeuroTrac™ IFC Rehab Operation Manual 5. Operating NeuroTrac™ IFC Rehab 5.1 Getting started 1. Insert four AA batteries into the battery compartment (the battery images engraved in the base of the compartment indicates correct battery position. 2. Connect the lead cables to the electrodes. The lead pins must be fully inserted into the electrode connector.
  • Page 11 NeuroTrac™ IFC Rehab Operation Manual 7. When the programme is done amplitude automatically returns to 0 8. If required adjust the time of the programme by using timer button. Time of predefined IFC , TENS and NMS P13�P15 programmes can be adjusted in the range: 1min�...

  • Page 12: Setting Up Ifc Custom Programme

    NeuroTrac™ IFC Rehab Operation Manual 5.2. Setting up IFC Custom programme. Continuous mode custom IFC programme (PC1) 1. Select PC1 by pressing IFC PROG. button 2. Press and hold IFC SET/ESC button for 3 seconds to enter custom pro� gramme parameter adjustment menu 3.

  • Page 13: Setting Up Tens/Nms Custom Programme

    NeuroTrac™ IFC Rehab Operation Manual 5.3. Setting up TENS/NMS Custom programme. Custom TENS programme (PC1) 1. Select PC1 by pressing TENS/NMS PROG. button 2. Press and hold TENS/NMS SET/ESC button for 3 seconds to enter custom programme parameter adjustment menu 3.
  • Page 14 NeuroTrac™ IFC Rehab Operation Manual 5. Press “CHA+” button again to change to work time adjustment screen. Flashing WORK segment indicates that work period can be adjusted. Use “CHB +” or “CHB - “ button to adjust the time in range from 1 � 99 seconds (1 sec.

  • Page 15: Ifc Programme Table And Modes

    NeuroTrac™ IFC Rehab Operation Manual 5.4. IFC programme table and modes Interferential Dwell , modulation Prog No. MODE Prog. Frequency or W/R time 1min �12h WORK/REST WORK/REST WORK/REST WORK/REST � WORK/REST...
  • Page 16 NeuroTrac™ IFC Rehab Operation Manual Description of IFC modes: 1. Abrupt (ABT) Output with low frequency for a set dwell time and then abrupt change to high frequency for the same dwell time. Cycle is repeated over programme duration 2. Ramp (SWP) Stimulation frequency ramps smoothly from low frequency to high fre�...

  • Page 17: Tens/Nmsprogramme Table And Modes

    NeuroTrac™ IFC Rehab Operation Manual 5.5. TENS/NMS programme tables and modes Prog. Prog No. Mode Frequency (Hz) Pulse Width (µS) Time 1min �12h 1min�1.5h 50min 40min 37min 35min 35min 25min 50min 30min 35min 50min 15min 55min PC1 Custom 1min �12h PC2 Custom 1min�1.5h PC3 Custom...
  • Page 18 NeuroTrac™ IFC Rehab Operation Manual Description of TENS/NMS modes 1. Continuous /Conventional TENS (CON) Continuous train of constant value pulses (fixed frequency and pulse dura� tion) on both channels delivered with no interruption for entire treatment period. 2. Burst Modulated TENS (BST) Regular burst of pulses ( nine pulses of 200µS or 175 µS at 150Hz) repeated 2 times per second .This mode is comparable to the low rate TENS technique except that each low rate pulse is substituted for by a short BURST of pulses.
  • Page 19 NeuroTrac™ IFC Rehab Operation Manual Programme : P13 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase time Mode Frequency work Frequency rest Pulse duration Ramp up time secs Ramp down time secs Work time secs Rest time secs Alternating Synchronous...
  • Page 20 NeuroTrac™ IFC Rehab Operation Manual Programme: P15 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase time Mode Frequency work Frequency rest Pulse duration Ramp up time Ramp down time Work time Rest time Alternating Synchronous √ Overall time 50 min Programme: P16 Phase 1...
  • Page 21 NeuroTrac™ IFC Rehab Operation Manual Programme: P17 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase time Mode Frequency work Frequency rest Pulse duration Modulation Time Ramp up time Ramp down time Work time Rest time Alternating Synchronous √...
  • Page 22 NeuroTrac™ IFC Rehab Operation Manual Programme: P19 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase time Mode Frequency work Frequency rest Pulse duration Ramp up time Ramp down time Work time Rest time Alternating Synchronous √ √ √...
  • Page 23 NeuroTrac™ IFC Rehab Operation Manual Programme: P21 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase time Mode Frequency work Frequency rest Pulse duration Modulation time Ramp up time Ramp down time Work time Rest time Alternating Synchronous √...
  • Page 24 NeuroTrac™ IFC Rehab Operation Manual Programme: P23 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase time Mode Frequency work Frequency rest Pulse duration Ramp up time Ramp down time Work time Rest time Alternating Synchronous √ √ √...
  • Page 25 NeuroTrac™ IFC Rehab Operation Manual Programme: P25 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase time Mode Frequency work Frequency rest Pulse duration Ramp up time Ramp down time Work time Rest time Alternating Synchronous √ √ √...
  • Page 26 NeuroTrac™ IFC Rehab Operation Manual Programme: P27 Phase 1 Phase 2 Phase 3 Phase 4 Phase 5 Phase time Mode Frequency work Frequency rest Pulse duration Modulation time Ramp up time Ramp down time Work time Rest time Alternating Synchronous √...

  • Page 27: Lock Mode Function

    NeuroTrac™ IFC Rehab Operation Manual 5.6. Lock Mode function A “concealed” Lock buttons are included in the NeuroTrac™ IFC Rehab, which allows the Physician to accurately monitor the “Home Compliance” of the patient between appointments. The lock function allows the device to be locked in two ways (Note: IFC side and TENS/NMS side have lock button therefore can be locked independently).

  • Page 28: Skin Electrodes Placement And Maintenance

    NeuroTrac™ IFC Rehab Operation Manual 6. Skin Electrodes ( Self� adhesive electrodes) Electrode placement The placement of electrodes is one of the most important parameters in achiev� ing effective pain relief using TENS. This is best left to your Physiotherapist or Physician to advise as to which location is most appropriate.
  • Page 29 NeuroTrac™ IFC Rehab Operation Manual Avaliable types of electordes Shape Code Description 40 x 40 mm, square (* max VS.4040 53mA) 50 x 50 mm, square VS.5050 (recommended for general use) VS.9040 90 x 40 mm, rectangular VS.9050 90 x 50 mm, rectangular VS.10050 100 x 50 mm, rectangular 30 mm diameter, round...

  • Page 30: Care & Maintenance

    NeuroTrac™ IFC Rehab Operation Manual Practical tips If you find the electrodes will not stick due to oily skin, cleanse the skin with soap and water, then rinse and dry the area around the electrode site. If this does not work, try cleansing the skin with a swab impregnated with alcohol. Clip away hairy skin using scissors;...

  • Page 31: Information Regarding Electromagnetic Compatibility And Interference (Emc)

    Store the lead wires carefully after each use (lead wires are best preserved if left attached to stimulator between sessions). Caution: Static electricity may damage this product Note: Only Verity Medical Ltd. or appointed distributors/importers are approved to undertake servicing. 8. Information regarding Electromagnetic com�...
  • Page 32 NeuroTrac™ IFC Rehab Operation Manual Table 201: Guidance and manufacturer’s declaration � electromagnetic emission The NeuroTrac™ product is intended for use in the electromagnetic environ� ment specified below. The customer or the user of the The NeuroTrac™ product should ensure that it is used in such environment Emission test Compliance Electromagnetic environment guid-...
  • Page 33 NeuroTrac™ IFC Rehab Operation Manual Table 204: Guidance and manufacturer’s declaration – electromagnetic immunity The NeuroTrac™ product is intended for use in the electromagnetic environment specified below. The customer or the user of the NeuroTrac™ product should assure that it is used in such an environment. Immunity IEC 60601 Compliance...
  • Page 34 NeuroTrac™ IFC Rehab Operation Manual Table 206: Recommended separation distances between portable and mobile RF communications equipment and NeuroTrac™ product The NeuroTrac™ product is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the NeuroTrac™...

  • Page 35: Technical Specification

    NeuroTrac™ IFC Rehab Operation Manual 9. Technical Specification General Number of channels: 2 for TENS/NMS and 2 for IFC Channel isolation: Depends upon use of 4 independent transformers. Output Regulation: Constant Current Waveform: IFC � Symmetrical square biphasic with zero net DC. TENS/NMS �...
  • Page 36 NeuroTrac™ IFC Rehab Operation Manual Interferential Stimulation (IFC) Carrier Frequency: 4000Hz nominal , fixed Adjustable Frequency: 4001�4150Hz nominal, adjustable Interference Frequency: 1�150 Hz , equal to the difference frequency between Carrier and Adjustable frequency. Determined by frequency setting Output Configuration: Quadra polar (4 �electrodes) �...
  • Page 37 NeuroTrac™ IFC Rehab Operation Manual TENS Amplitude: 0 � 80 mA Indication only; actual mA will tend to be less than indicated due to electrode impedance. Pulse width: 50 � 300 µS � selectable in PC1 (2% accuracy) Frequency: 2 � 200 Hz � selectable in PC1 (2% accuracy). Modes: Continuous Modulated �...
  • Page 38 NeuroTrac™ IFC Rehab Operation Manual Key to symbols used on the Device labeling. Caution, consult accompanying documents BF applied part equipment (Body Floating) This product is manufactured in compliance with the Medical Device Directive MDD93/42/EEC under the supervision of SGS, Notified Body number 0120 Follow instructions for use Disposal of the devices At the end of the product life cycle, do not throw this prod�...

  • Page 39: Troubleshooting

    NeuroTrac™ IFC Rehab Operation Manual 10. Troubleshooting Problem Possible cause Remedy The display does not Batteries discharged Replace batteries come on and there is Batteries were incor� Remove battery and replace no signal from the unit rectly positioned correctly The unit turns on , but Lead wires not fully in�...

  • Page 40: Warranty

    If the distributor from whom the product was purchased by the user is satisfied that the product is defective, the user may return the unit directly to this Distributor who will forward it to Verity Medical Ltd. All such returns from the Distributor to Verity Medical must be authorised by Verity Medical Ltd., in advance.
  • Page 41 NeuroTrac™ IFC Rehab Operation Manual...
  • Page 42 NeuroTrac™ IFC Rehab Operation Manual...
  • Page 43 NeuroTrac™ IFC Rehab Operation Manual...
  • Page 44 NeuroTrac™ IFC Rehab Operation Manual The Device is not for sale in the USA Distributor: Doc. Revised Issue Date: 28/09/2011 Document Number: VM�IFC184�OM001�2...
