Page 1: Before Use

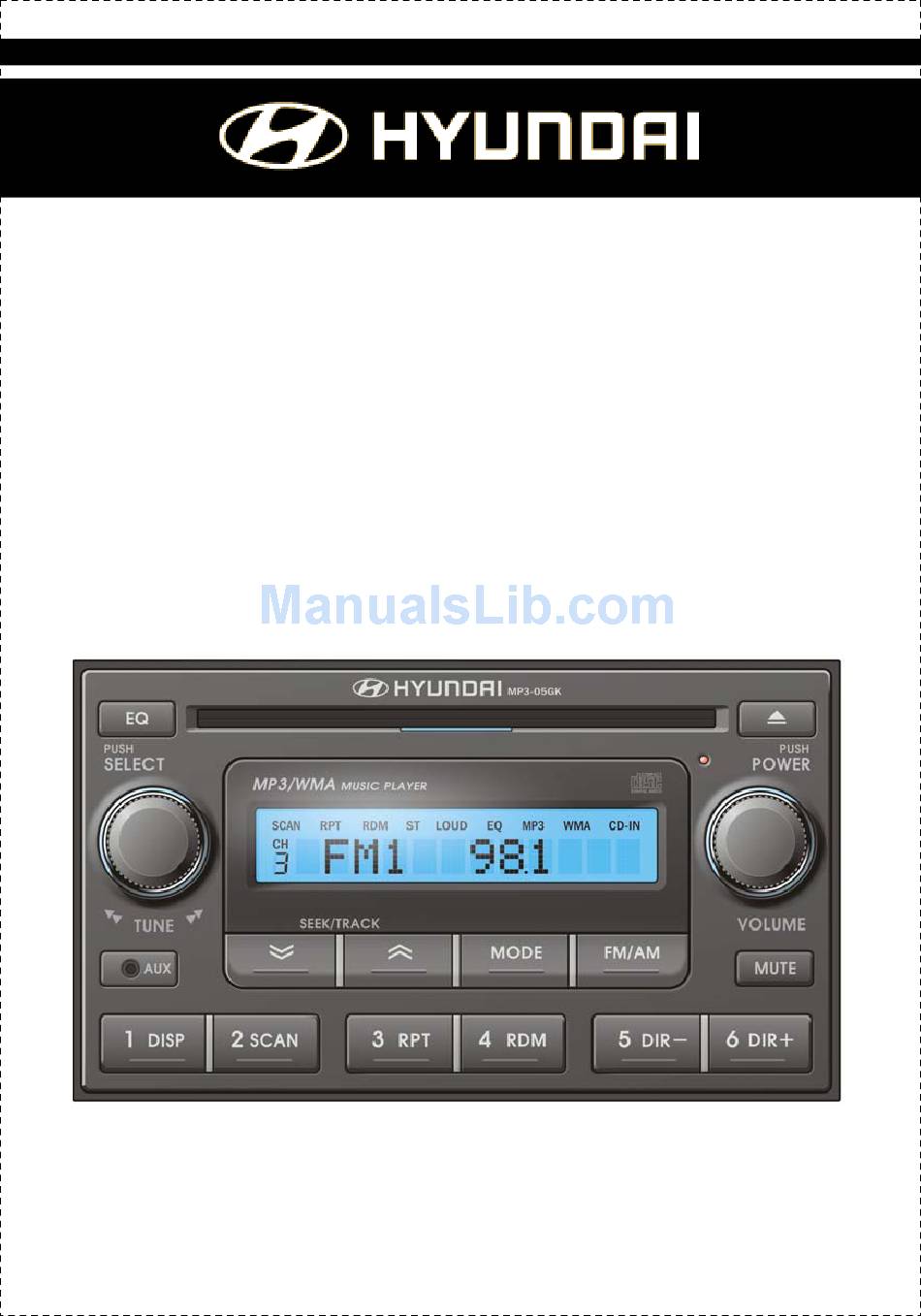

BEFORE USE INSTRUCTION MANUAL MP3-05GK MP3/WMA CD PLAYER WITH AM/FM RADIO... -
Page 2: Table Of Contents
BEFORE USE Before operating the unit, please read this manual thoroughly and retain it for future reference. 1. OPERATING INSTRUCTIONS ------------------------------------- Page 03 2. GENERAL ---------------------------------------------------------------- Page 04 3. ANTI-THEFT SECURITY CODE ----------------------------------- Page 07 4. RADIO --------------------------------------------------------------------- Page 08 5. -
Page 3: Operating Instructions
OPERATING INSTRUCTIONS ② ⑰ ⑱ ③ ⑯ ① ⑨ ⑩ ⑪ ⑦ ⑧ ⑫ ⑬ ⑥ ⑤ ⑭ ⑮ ④ ① POWER (ON / OFF / Volume) ⑩ PRESET 1 MEMORY (DISP – Display Mode) ② AUDIO SETTING SELECT / TUNING ⑪... -
Page 4: General
GENERAL ② ① ① POWER ON/OFF BUTTON Press button ① momentarily to turn the set on or off. When the set is next switched on, the previous mode and disc play position will be restored. ① VOLUME UP/DOWN CONTROL Turn button ① right to increase the volume level. The level will be shown as “VOLUME xx” on the display panel. - Page 5 GENERAL ② MIDDLE CONTROL (2 setting) To adjust the mid tone level, first select the middle mode by pressing button ② until “MIDDLE” appears on the display panel. Within 5 seconds of selecting the middle mode, turn button ② right or left to adjust the mid level as desired.
- Page 6 GENERAL ⑰ ⑥ ③ ④ ③ WARNING LED This LED lamp blinks every 1 second when the ignition is turned OFF. ④ AUDIO MUTE BUTTON (MUTE) Press Mute button ④ momentarily to mute volume and “MUTE” mark will blink on the LCD panel. Press the button again to return to the mode in use before the Mute mode was activated.
-
Page 7: Anti-Theft Security Code
2. If the stereo screen indicates “1 CDE”, this is a message that you need enter your anti-theft security pin code. 3. Your security pin code number can be found on the card supplied with your new Hyundai vehicle. 4. Every Hyundai stereo has its own individual anti-theft security pin code. Entering an incorrect pin code or using incorrect procedures will not activate your stereo to an operational status. -
Page 8: Radio
RADIO ② ⑩ ⑪ ⑦ ⑧ ⑫ ⑬ ⑤ ⑭ ⑮ ⑤ FM/AM BAND SELECTOR (FM/AM) Each time this button is pressed, the radio band is changed. Each time this button is pressed, LCD displays each band as follows: FM1 → FM2 → FM3 → AM ②... -
Page 9: Cd Player
CD PLAYER ⑩ ⑦ ⑧ ⑦ TRACK DOWN & REVIEW BUTTON This button ⑦ is used to select track down. Each time the Backward Track select ( ) is pressed, track number is decreased. Press and hold this button ( ) to advance rapidly in the backward direction. - Page 10 CD PLAYER ② ② MP3 DIRECTORY/FILE SEARCHING Button ② is used to select a particular directory and file on an MP3 disc. Press and hold button ② for more than 3 seconds. Then, turn button ② right or left to display the available directories. Press button ②...
- Page 11 CD PLAYER ⑪ ⑦ ⑧ ⑫ ⑬ ⑪ TRACK SCAN (SCAN) During disc play, press button ⑪ to play the first 10 seconds of each track on the disc. “SCN” will appear on the display panel. When the desired track is reached, press button ⑪ again to cancel the function.
-
Page 12: Disc Slot
CD PLAYER ⑰ ⑭ ⑮ ⑯ ⑭ DIRECTORY DOWN (D-) During MP3 playback, selection of the previous directory (if available on the MP3 disc) is possible by pressing button ⑭ briefly. The previous directory is located each time button ⑭ is pressed. ⑮... -
Page 13: Aux Player
AUX PLAYER Your Portable Media Player It is possible to connect your portable media player to the car audio system for playback of the audio tracks via the car speakers. To get the best results when connecting the portable media to the car audio system, follow these steps: a. -
Page 14: Handling Compact Discs
HANDLING COMPACT DISCS 1) Dirt, dust, scratches, and disc warpage can cause skipping in the play back and deterioration of sound quality. Please observe these guidelines to take care of your compact discs : ＊Fingerprints, dust and dirt should be carefully wiped off the disc's playing surface (shiny side) with a soft cloth. -
Page 15: Lcd Display For Cd Player Error
LCD DISPLAY FOR CD PLAYER ERROR If a problem should develop while operating the CD player, the following error codes may be displayed on the LCD. LCD SYMBOL ERROR DESCRIPTION ERROR 1 LOAD Loading is not available. ERROR 2 MECHANISM Mechanism problem. -
Page 16: Product And Warranty Service
MP3/WMA CD Player supports for MP3 CD of Joliet, ISO9660 and UDF File Format. In the event your MP3/WMA CD Player is faulty, please take your Hyundai vehicle to your nearest Hyundai dealer for their diagnostic inspection of your MP3/WMA CD Player. -
Page 17: Mp3/Wma Information And Notice
Computer using special software. Additional text information such as track TITLE, ARTIST and ALBUM included in the audio track can be displayed on the car audio set. Sound quality of MP3 files varies depending on the settings used when the file was created. Your Hyundai car audio set plays most MP3 files. -
Page 18: Warning And Precautions
WARNING AND PRECAUTIONS 1) WARNING This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 19: Specifications
SPECIFICATIONS Output Power -------------------------------------------------------------- 180 watts (4 x 45 Watts) Tuning Range -------------------------------------------------------------- AM : 522 ~ 1,620 KHz. 9 KHz. Steps FM : 87.5 ~ 108.0 MHz. 100 KHz. steps Sensitivity ------------------------------------------------------------------ AM : 15 ㎶ FM : 1.5 ㎶ FM Stereo Separation --------------------------------------------------- 30 dB CD Frequency Response ---------------------------------------------- 20 ~ 20,000 Hz CD S/N Ratio -------------------------------------------------------------- 60 dB... - Page 20 P/N: 6350300001...
