Getting Started

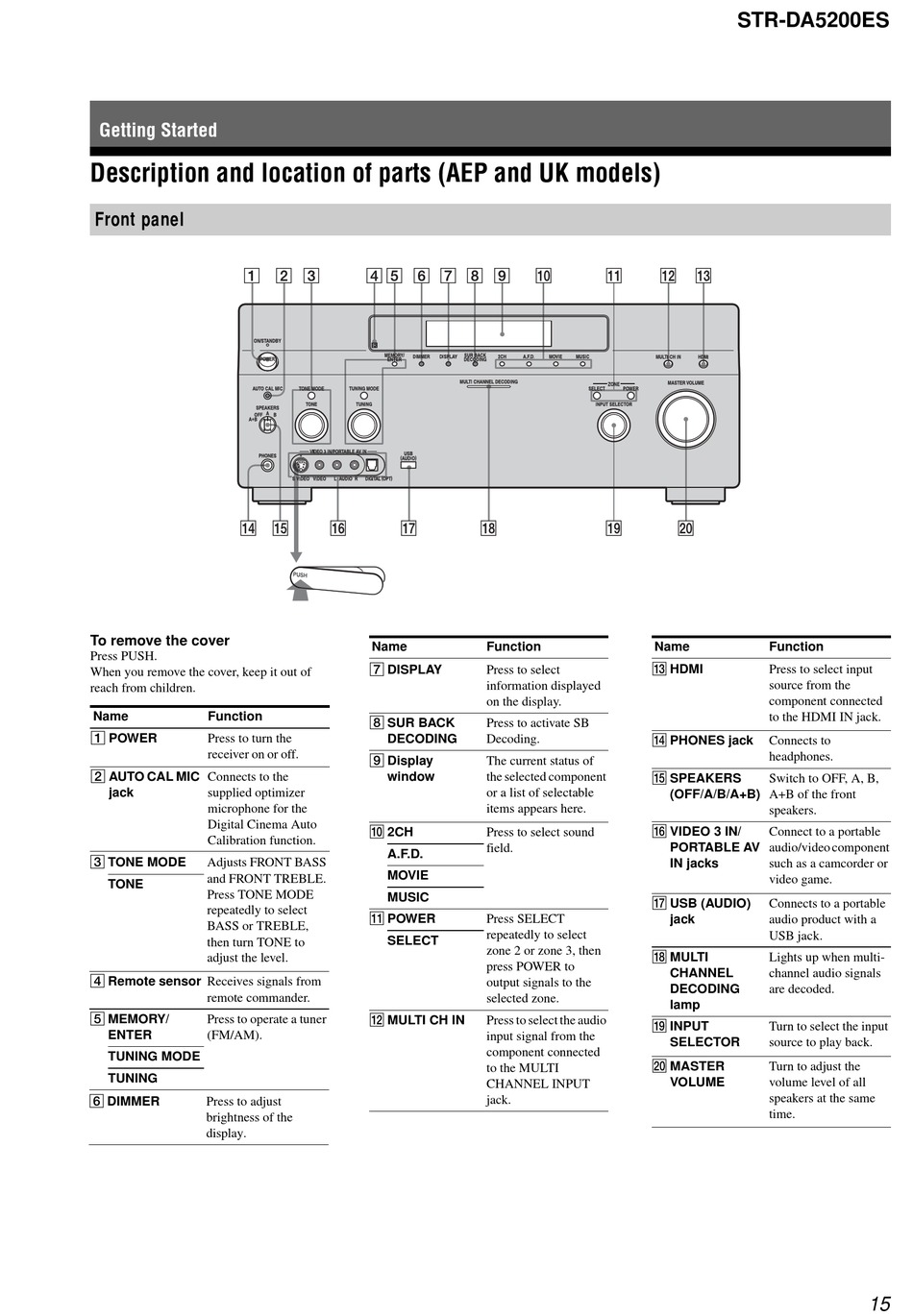

Description and location of parts (AEP and UK models)

Front panel

To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
Name Function
A POWER
Press to turn the
receiver on or off.
B AUTO CAL MIC
Connects to the
jack supplied optimizer
microphone for the
Digital Cinema Auto
Calibration function.
C TONE MODE
Adjusts FRONT BASS
and FRONT TREBLE.
TONE
Press TONE MODE
repeatedly to select
BASS or TREBLE,
then turn TONE to
adjust the level.
D Remote sensor Receives signals from
remote commander.
E MEMORY/
Press to operate a tuner
ENTER (FM/AM).
TUNING MODE
TUNING
F DIMMER
Press to adjust
brightness of the
display.
Name Function
G DISPLAY
Press to select
information displayed
on the display.
H SUR BACK
Press to activate SB
DECODING
Decoding.
I Display
The current status of
window the selected component
or a list of selectable
items appears here.
J 2CH
Press to select sound
field.
A.F.D.
MOVIE
MUSIC
K POWER
Press SELECT
repeatedly to select
SELECT
zone 2 or zone 3, then
press POWER to
output signals to the
selected zone.
L MULTI CH IN
Press to select the audio
input signal from the
component connected
to the MULTI
CHANNEL INPUT
jack.
STR-DA5200ES
Name Function
M HDMI
Press to select input
source from the
component connected
to the HDMI IN jack.
N PHONES jack
Connects to
headphones.
O SPEAKERS
Switch to OFF, A, B,
(OFF/A/B/A+B)
A+B of the front
speakers.
P VIDEO 3 IN/
Connect to a portable
PORTABLE AV audio/video component
IN jacks
such as a camcorder or
video game.
Q USB (AUDIO)
Connects to a portable
jack
audio product with a
USB jack.
R MULTI
Lights up when multi-
CHANNEL
channel audio signals
DECODING are decoded.
lamp
S INPUT
Turn to select the input
SELECTOR
source to play back.
T MASTER
Turn to adjust the
VOLUME volume level of all
speakers at the same
time.
15
