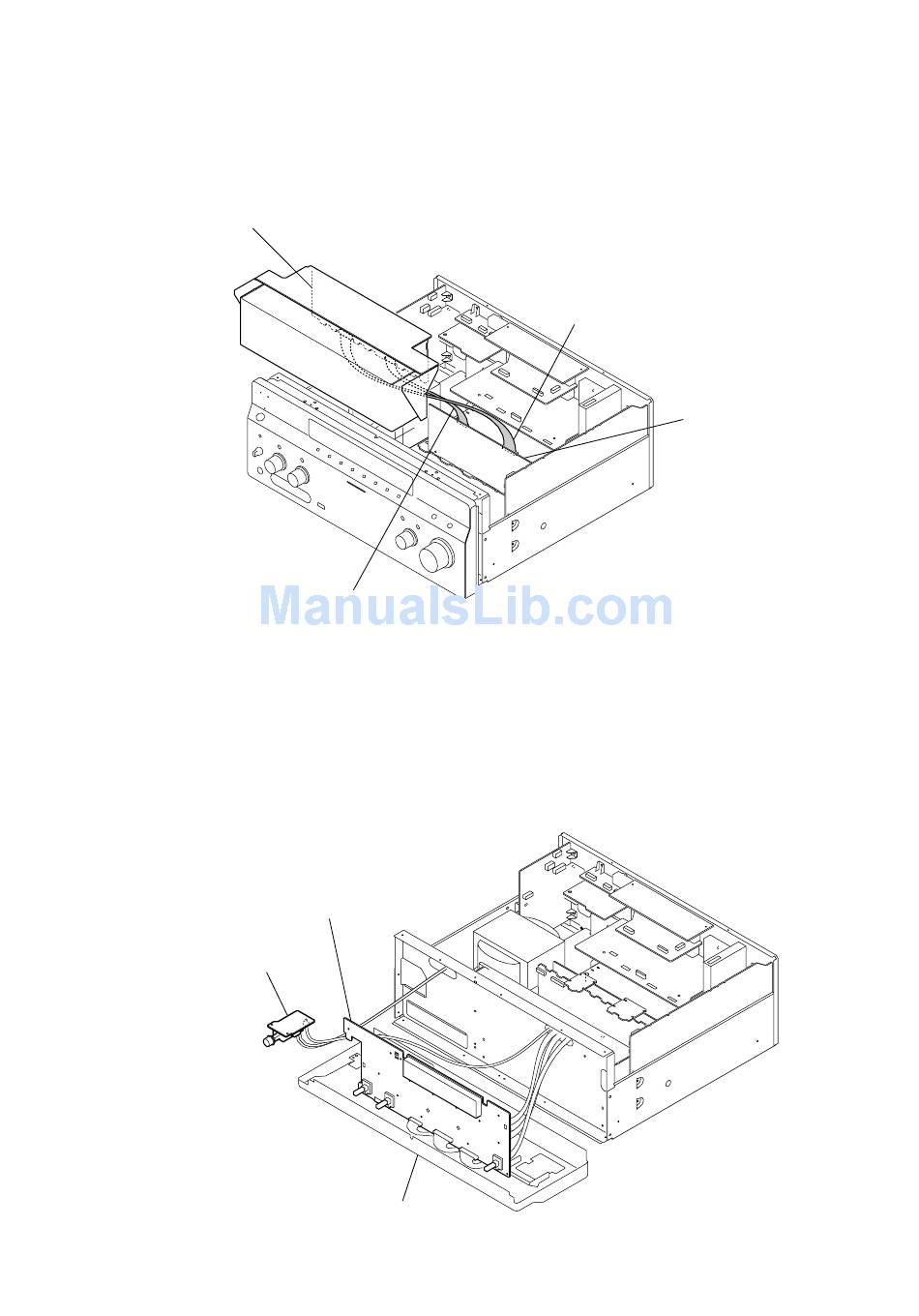

AMP BLOCK SERVICE POSITON
In checking the AMP block, prepare jig (extension cable J-2501-290-A: 500 mm 9 core/J-2501-291-A: 500 mm 12 core).
A CLASS AMP board
Connect jig (extension cable J-2501-290-A)
to the E-VOLUME board (CNS1202) and A CLASS AMP board (CNS1502).
DISPLAY BOARD SERVICE POSITON
POWER SW board
DISPLAY board
front panel block
Connect jig (extension cable
J-2501-291-A) to the E-VOLUME board
(CNS1201) and A CLASS AMP board
(CNS1501).
E-VOLUME board
STR-DA5200ES
7
