Internal Settings

Removing Top Cover

The DAC1 PRE cover must be removed to
gain access to the jumpers. Do not attempt
to remove the faceplate or rear panel.
CAUTION: The DAC1 PRE contains static
sensitive components and should only be
opened by qualified technicians. Static
discharge may cause component failures,
may affect the long-term reliability, or
may degrade the audio performance. Use
a static control wrist strap when
changing jumper settings.
CAUTION:
 Disconnect AC power by unplugging
the power cord at the back of the
DAC1 PRE.
 Remove only the 8 screws holding the
cover (4 on each side).
 Do not remove any screws on front or
rear panels.
 Never remove the power entry safety
cover in the rear corner of the DAC1
PRE.
 Always connect a static-control wrist
strap to the chassis before touching
any internal component.

Jumpers

The following functions are jumper
configured:
 Headphone Gain Range Adjustment
 Headphone Switch Disable
 XLR Output Pads
DAC1 PRE Instruction Manual Rev J
XLR Output Pad Selection (P5, P6,
P7, and P8):
Four 8-pin headers (P5, P6, P7, and P8) allow
selection of the output level at the XLR jacks.
One pair of 8-pin headers controls the output
level at each XLR jack as follows:
 0 dB - (Attenuator disabled) – (Jumper
plug between pins 1 and 2 of each
header)
 -10 dB – (Jumper plug between pins 3 and
4 of each header)
 -20 dB – ***(Jumper plug between pins 5
and 6 of each header)
 -30 dB – (Jumper plug between pins 7 and
8 of each header)
*** = Factory Default

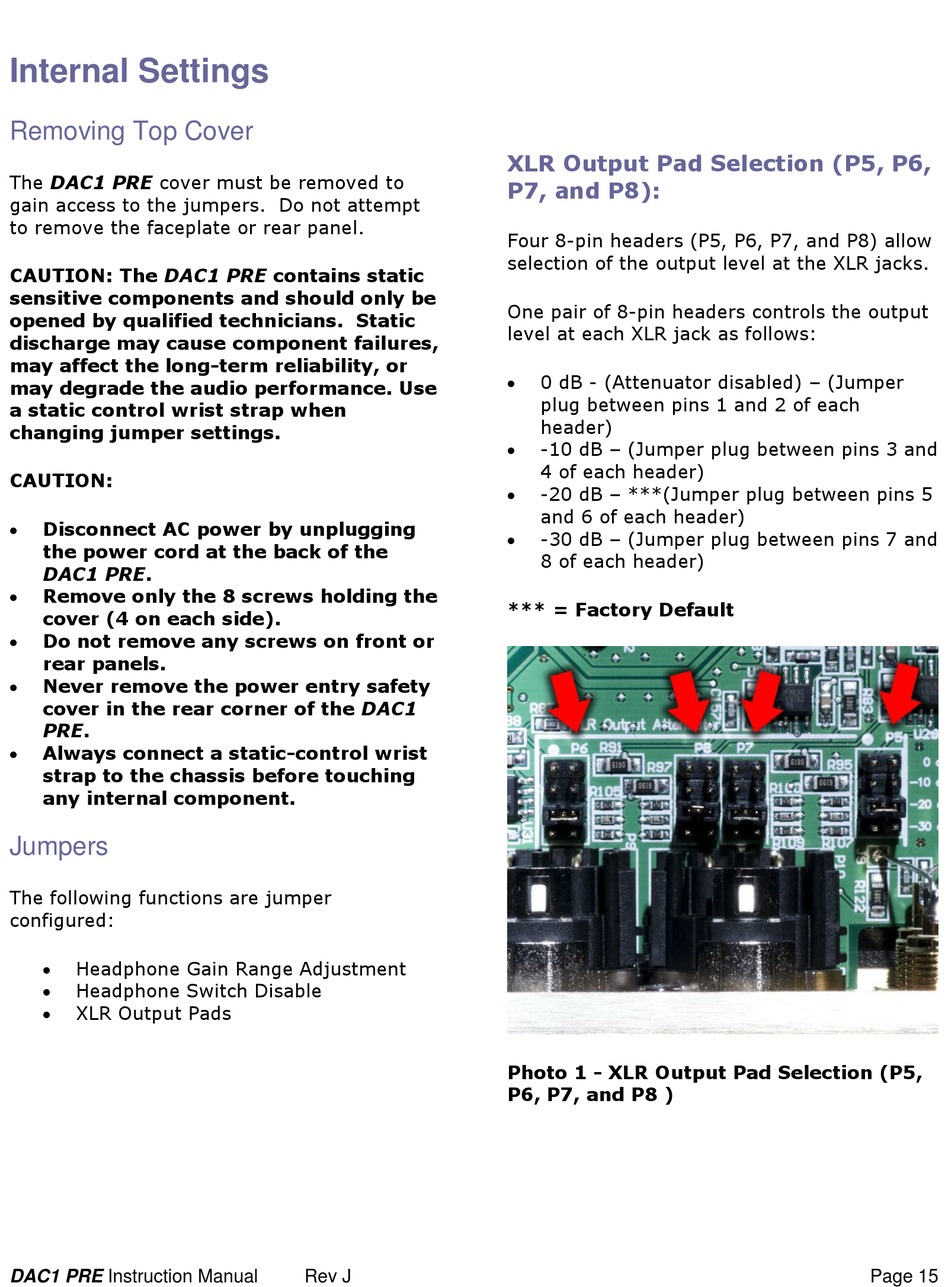

Photo 1 - XLR Output Pad Selection (P5,
P6, P7, and P8 )
