JBL Performance Specialist SS88IWSBB Owner's Manual

THANK YOU FOR
CHOOSING JBL
For more than 60 years, JBL has
been involved in every aspect of
music and film recording and
reproduction, from live perform-
ances to monitoring the recordings
you play in your home, car or
office.
We're confident that the JBL
speaker and back box you have
chosen will provide every note of
enjoyment that you expect – and
that when you think about pur-
chasing additional audio equip-
ment for your home, car or office,
you will once again choose JBL.
Please take a moment to register
your product on our Web site at
www.jbl.com. It enables us to keep
you posted on our latest advance-
ments, and helps us to better
understand our customers and
build products that meet their
needs and expectations.
JBL Consumer Products
INCLUDED
SS88IWSBB

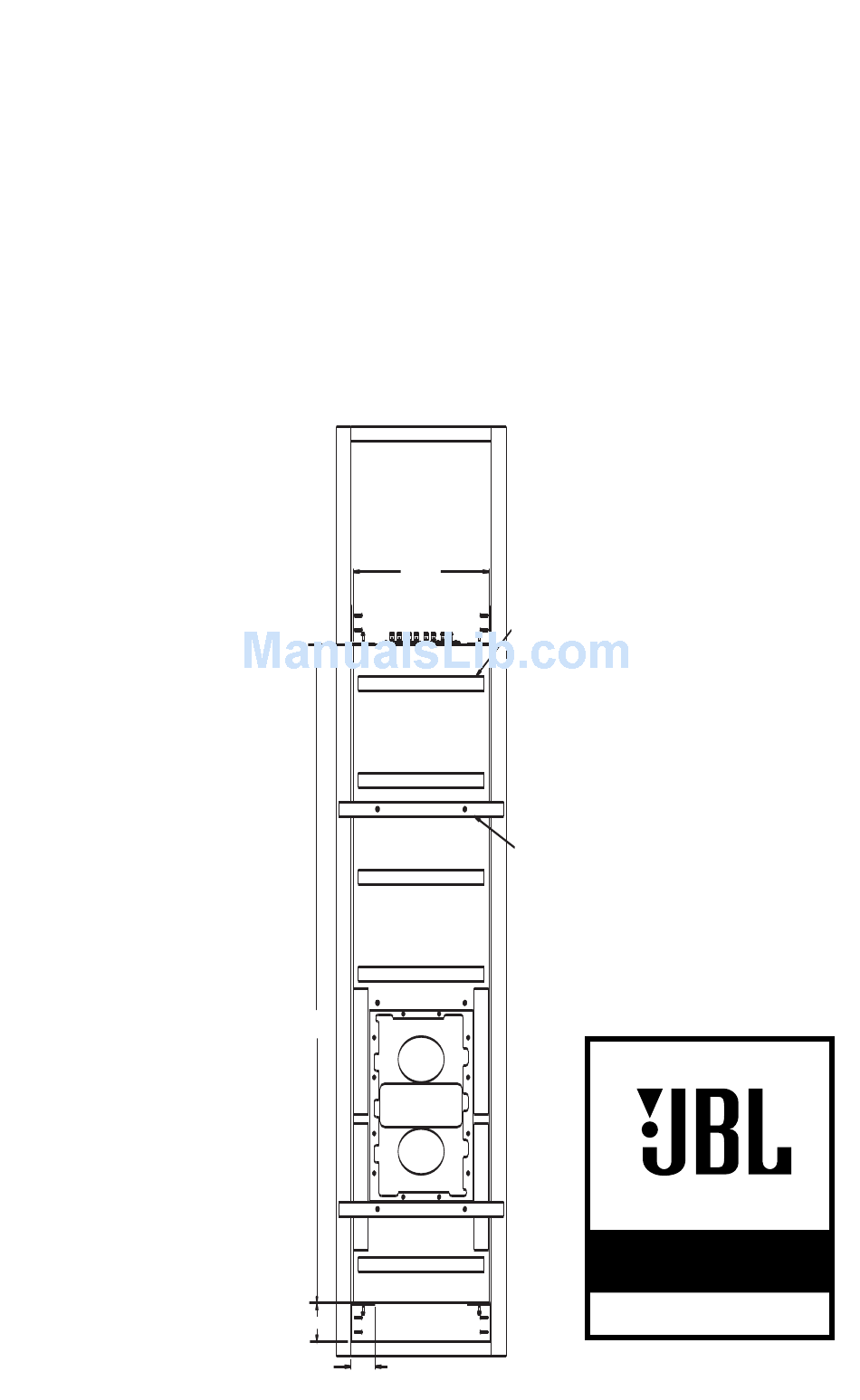

(1) SS88IWSBB back box
(shown installed between
16" on-center wall studs)
(4) L-brackets
(8) #10 32 x 1" screws
(L-brackets to back box)
(8) #10 split washers
(L-brackets to back box)
(8) #10 flat washers
(L-brackets to back box)
(8) #8 x 3/4" wood screws
(L-brackets to wall studs)
(2) wood centering bars
(4) #10 32 x 1-1/2" flat-head screws
(centering bars to back box)
NOTE: The back box is shipped with the
two centering bars attached to it using
the four flat-head screws.
SPEAKER
PLACEMENT
It is best to establish the locations
for the speakers in advance, to
avoid having to correct errors
after installation has already
begun. Refer to these guidelines,
and also see the owner's guide for
the SS88IWS subwoofer for more
information.
It is generally recommended that
you install your SS88IWS in-wall
subwoofer along the same wall
as the front loudspeakers. The
SS88IWS subwoofer is not video-
shielded and should not be placed
14.00
CABINET
68.00
CABINET
4.00
2.49
near a video display. Installing the
SS88IWS near a corner will tend
to maximize low-frequency output.
Be cautious when installing in a
corner, to avoid a "boomy" sound.
Also take into consideration any
unusual features of the room, such
as an alcove, which may tend to
create a localized node that may
affect bass response in that area
of the room.
It is generally recommended that
the speaker be installed so that the
bottom of the speaker is approxi-
mately 12" from the floor. Note that
installing the speaker within the
SS88IWSBB back box as shown in
the illustration to the left will
achieve the recommended height.
This is to help with the low-fre-
quency loading (bass reinforce-
ment). This also helps hide the
speaker in a less visible place.
Remember that these are just
guidelines. Since every listening
room is different, JBL strongly rec-
ommends experimenting with the
positioning of your subwoofer prior
DAMPING
to cutting the wall to obtain the
PADS
most pleasing results in your room.
One technique that can help you
find the ideal subwoofer location
is to temporarily borrow a stand-
alone subwoofer and place it near
the main listening location. Then
move around the room and deter-
mine where you hear the most
pleasing bass performance. This
would then be the ideal location
CENTERING
BARS
for the subwoofer.
PERFORMANCE
SPECIALIST
SS88IWSBB
OWNER'S GUIDE
®
™
