Summary of Contents for Clarke Start-N-Charge BC130

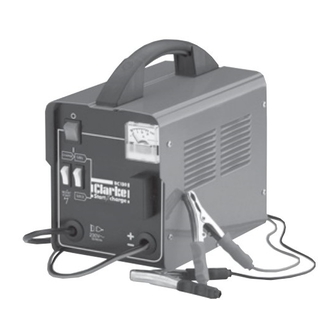

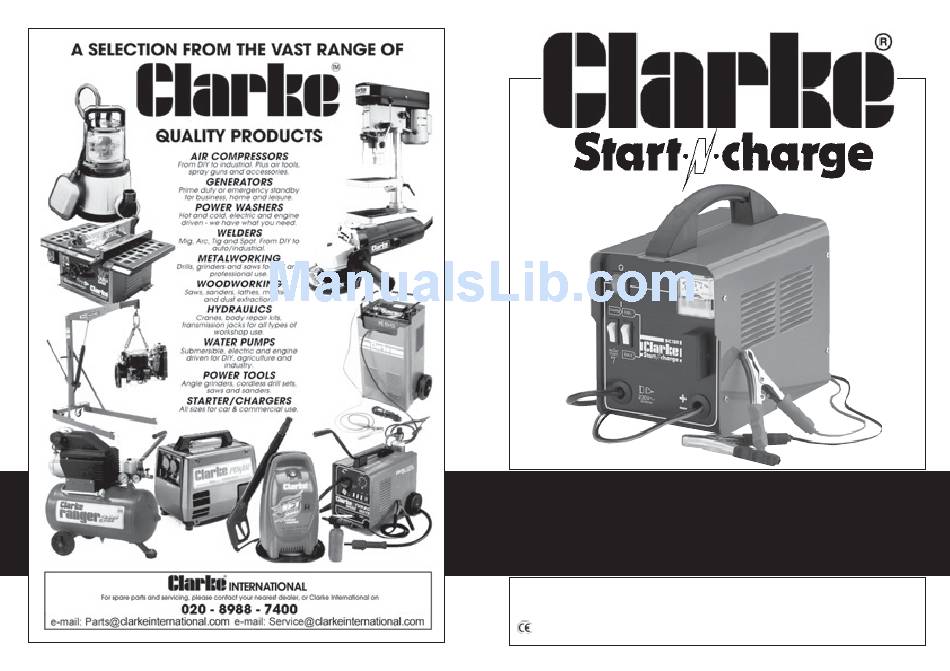

- Page 1 12V BATTERY 12V BATTERY BOOSTER / CHARGER BOOSTER / CHARGER MODEL Nos. BC130 OPERATING INSTRUCTIONS 0502...
- Page 2 PARTS & SERVICE CONTACTS For Spare Parts and Service, please contact your nearest dealer, or CLARKE International, on one of the following numbers. For Spare Parts and Service, please contact your nearest dealer, or CLARKE International on one of the following numbers.
- Page 3 Thank you for purchasing this CLARKE Battery Charger. These units are designed for charging 12 Volt, lead acid batteries and for providing a boost start in the event of a flat battery Before attempting to operate the charger, please read this instruction manual thoroughly, and follow all directions carefully.
- Page 4 IMPORTANT: SAFETY PRECAUTIONS PARTS LIST PLEASE READ BEFORE USING THIS UNIT Description Part No. WARNING : Some electronic equipment can be damaged by boost Welding Current Switch EN22200006 charging or use of start facility. Check your vehicle handbook before using your Start ’N’...
- Page 5 PARTS LIST AND DIAGRAM ELECTRICAL CONNECTIONS WARNING! THIS APPLIANCE MUST BE EARTHED. Connect the mains lead to a 230 volt (50Hz) domestic electrical supply via a standard 13 amp BS 1363 plug fitted with a 13 amp fuse, or a suitably fused isolator switch. IMPORTANT: The wires in the mains lead are coloured in accordance with the following code: Green &...
- Page 6 PARTS IDENTIFICATION Important: If the fixed positive lead and the fixed negative lead are connected to the wrong terminals, then a flash will occur when the 2nd clamp is attached. Damage to the FIG. 1 charging unit and the battery will be avoided as your start ‘n charge is fitted with a polarity protection device.
Need help?
Do you have a question about the Start-N-Charge BC130 and is the answer not in the manual?
Questions and answers
Will is start a 3.8.ltte car
Yes, the Clarke Start-N-Charge BC130 can start a 3.8 liter car, provided the battery is first charged for 10–15 minutes if it is completely flat. The unit delivers a maximum boost of 120 amps, which is generally sufficient for starting larger engines.
This answer is automatically generated
