8
Installation
1.
Carefully insert the drive into the carrier. Slide the drive towards the Drive Carrier
Board, so that the I/O, DC power, and ID select connectors on the drive mate with their
respective connectors on the drive carrier board (Figure 6).
2.
Fasten the drive into place with four (4) #6-32 Phillips Flat Hd. screws (Figure 6).
Drive
(Not Included)
Drive
Carrier
StorCase Technology, Inc.

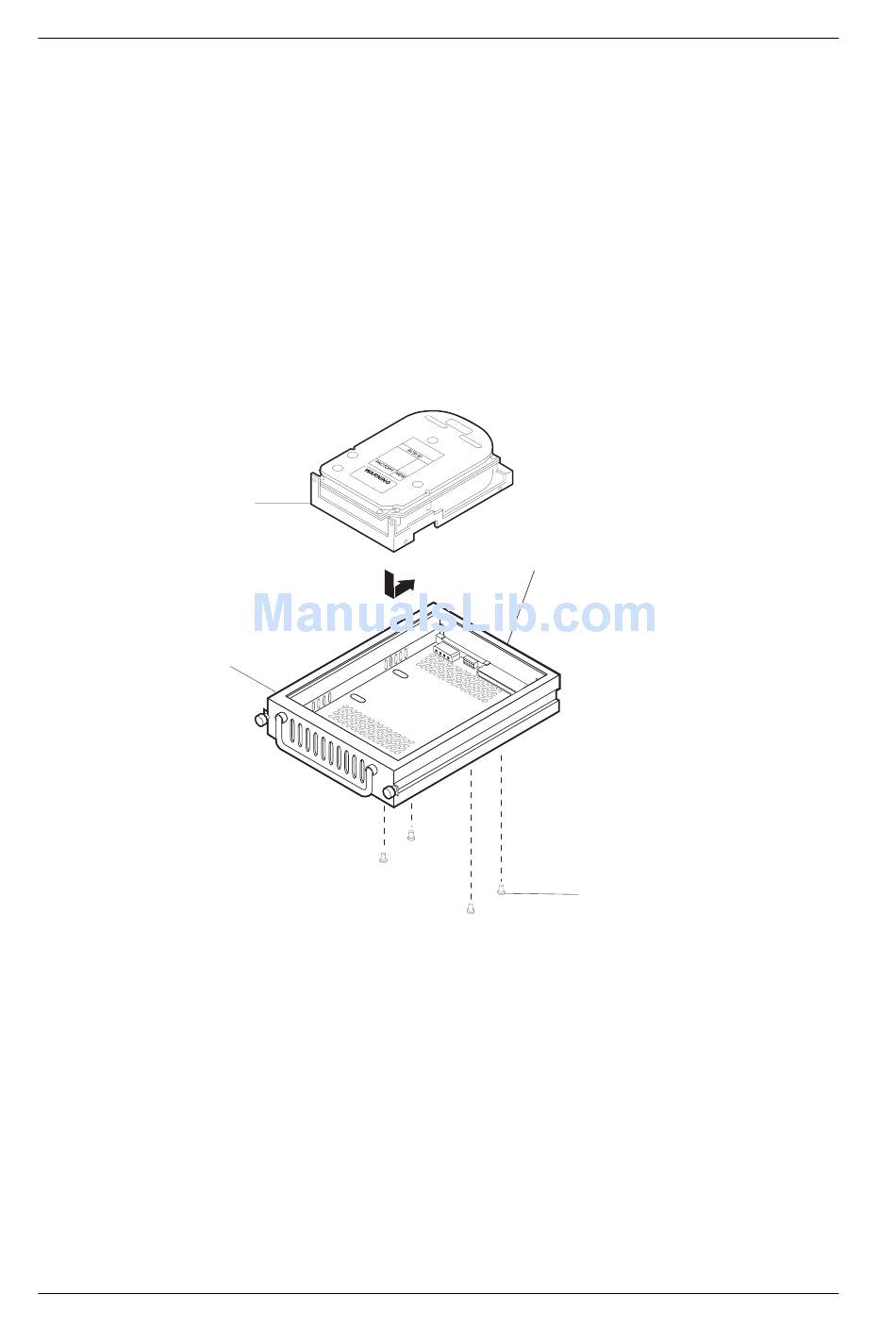

Figure 6:
Drive Installation Assembly
Drive Carrier
Board
0151g
#6-32 x 1/4 Phillips
Flat Head Screw
(4 each)
Ultra320 DE200 User's Guide - Rev. A01
Installation
