Introduction

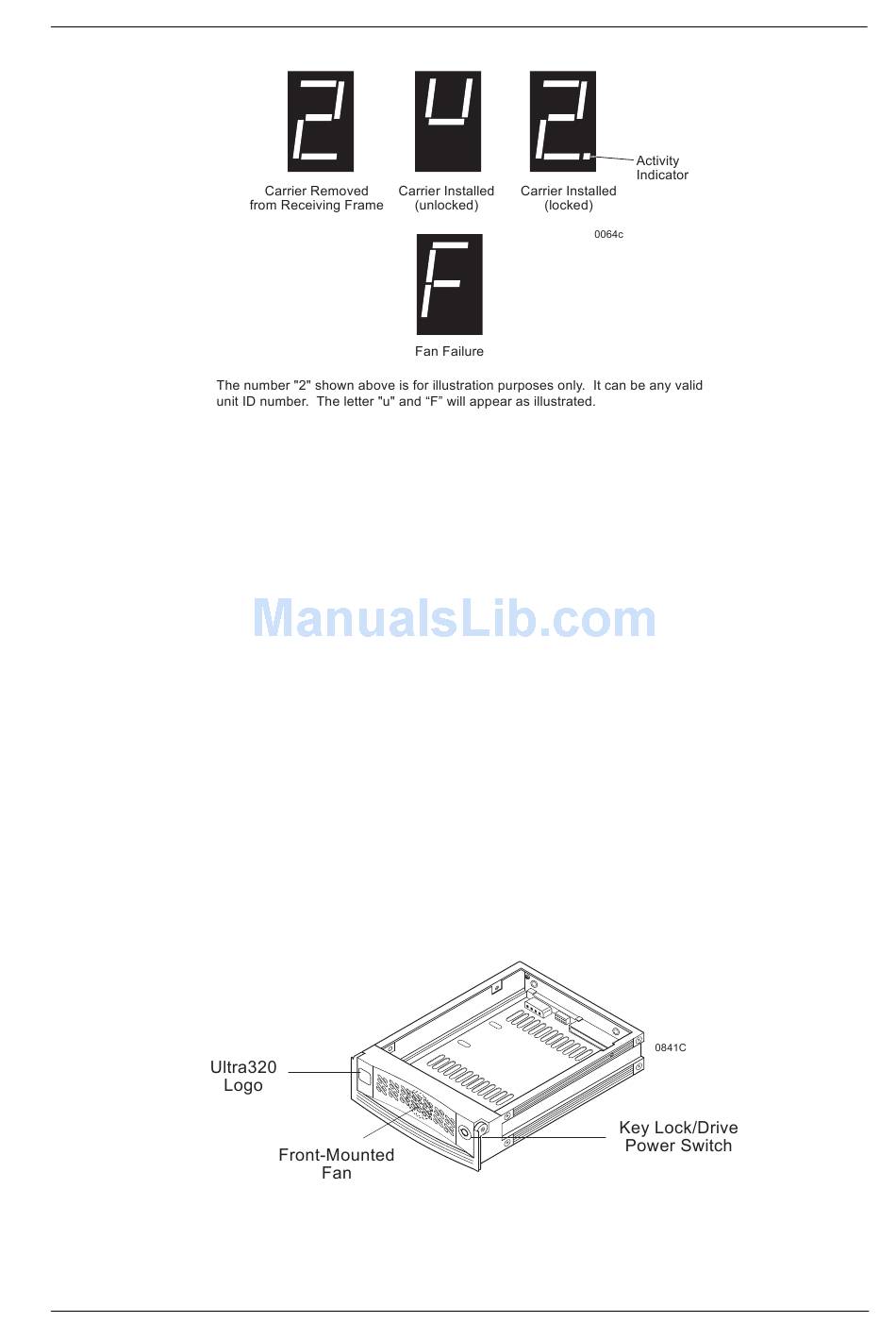

Drive Carrier

(Figure 4)

•

Key Lock/Drive Power Switch - Performs three functions. The key switch assures

proper seating of the drive carrier within the receiving frame, turns power to the drive

carrier ON and OFF, and prevents unauthorized removal or installation of the carrier.

For the computer to access data on the disk drive, the key must be turned counterclock-

wise to the locked position.

•

Front-Mounted Fan - Provides enhanced heat dissipation (3.5 CFM).

Ultra320 DE110 User's Guide - Rev. A03

StorCase Technology, Inc.
