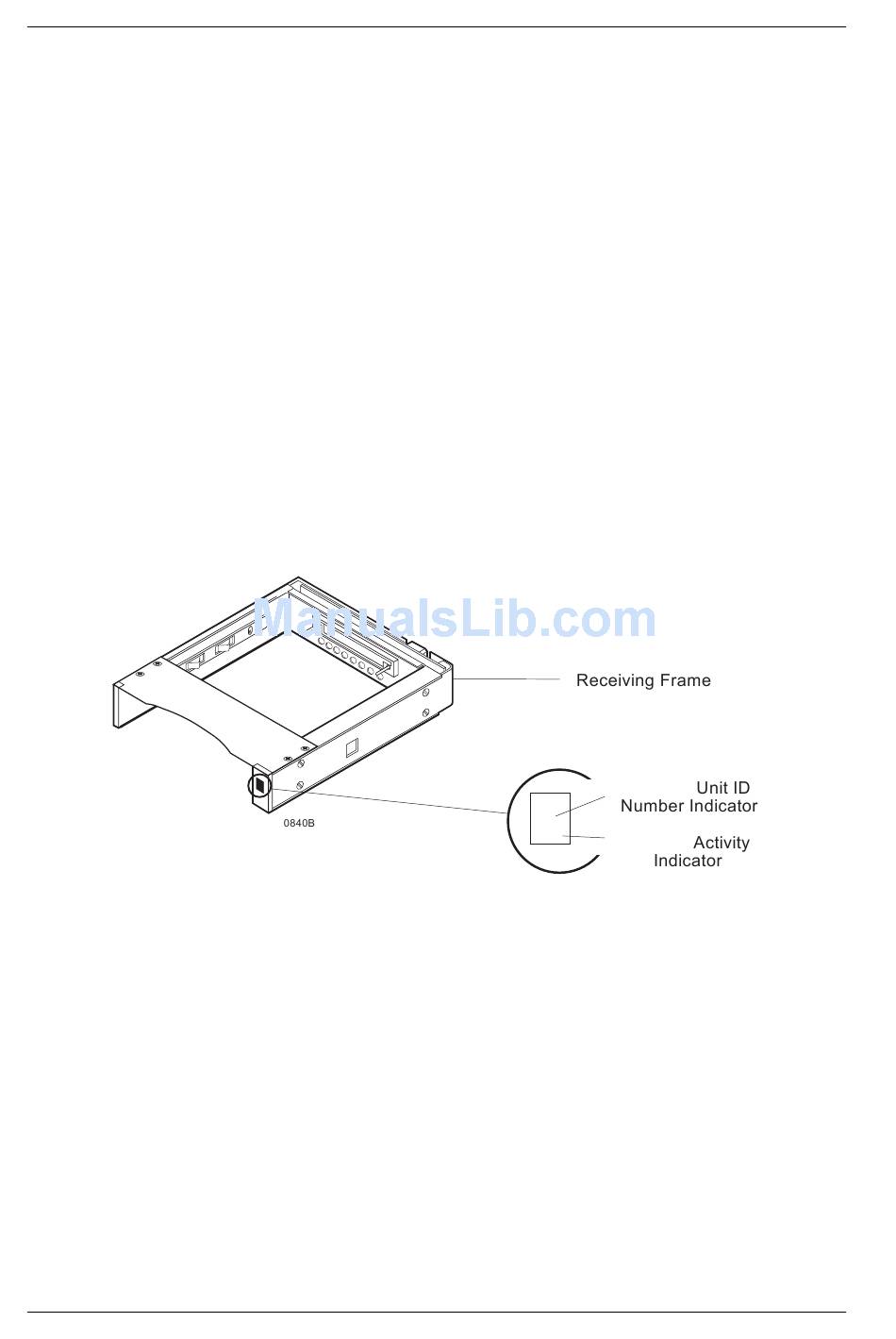

Receiving Frame Front Panel

(Figures 3A & 3B)

•

Unit ID Number Indicator - This AMBER LED displays the status of the Ultra320 DE110

device carrier if the carrier is Installed and Locked in the receiving frame or if the carrier

is removed from the receiving frame. If the carrier is Installed but not Locked in the

receiving frame, a "u" will be displayed to indicate an unlocked condition. The unit ID

number is selected by means of the unit ID select switch inside the receiving frame using

a special alignment tool supplied with the Ultra320 DE110 (Figure 9).

•

The Activity Indicator - A small AMBER dot next to the unit ID number illuminates to

indicate when the host computer is accessing the data on the Ultra320 DE110 carrier.

This dot will flash during communication with the host computer.

Fan Failure LED - The unit ID number indicator will display a flashing "F" and an

audible alarm will sound to indicate a fan failure.

StorCase Technology, Inc.

AMBER

Ultra320 DE110 User's Guide - Rev. A03
