Summary of Contents for Char-Broil 463241704

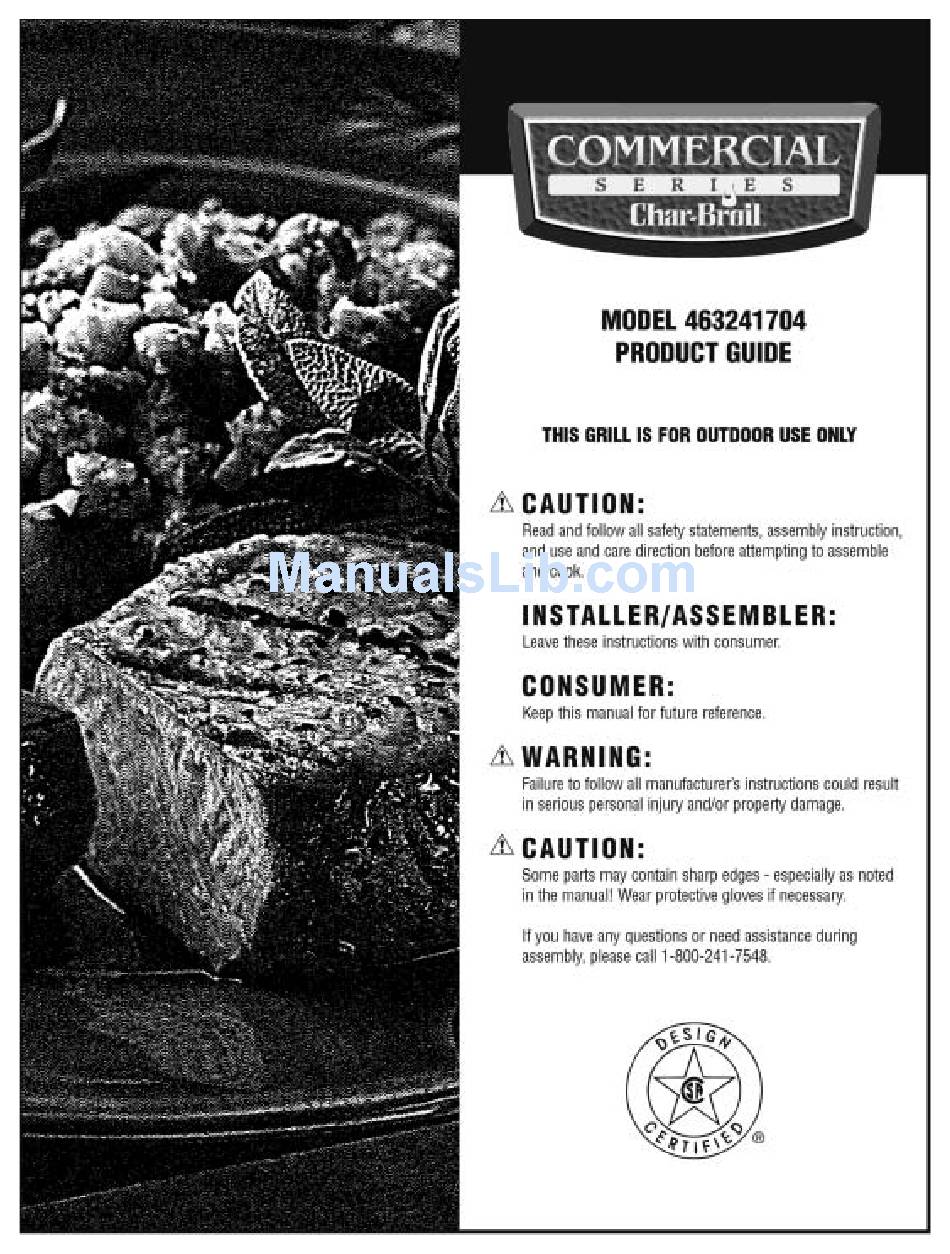

- Page 1 To insure your satisfaction and for follow-up service, register your grill online at www.grillregistration.com 463241704 • 80001016 • 06-03-04...
-
Page 2: For Your Safety
For residential use only. Do not use for commercial cooking. WARNING CALIFORNIA PROPOSITION 65 Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm. 2 • 463241704... -
Page 3: Table Of Contents
(Please note that the Consumer Warranty / P.O. Box 1240 integrity of the steel is not affected by the flame, only the Columbus, GA 31902-1240 appearance.) 463241704 • 3... -
Page 4: Parts List
Design®, Sierra®, and TruFlame® are registered Trademarks of the W.C. Bradley Company. Thermos® is a registered trademark of the Thermos Company and its affiliates. Artisan Collection by Char-Broil ™, C3 and Design™, Char-Broil and Design™, Flame Design™, FlavorTents™, Grill 2 Go™, Grillin’ Stick™, Keeper of the Flame™, Keepers of the Flame™, Natural Grip™, Outdoor Cooking Collection and Design™, Patio Bistro™, PrecisionFlame™, Pro-Check™, QuickSet Grills and Design™, SmokerTents™, The Big Easy™, The Minute Grill™, The Edge™, The Tuscan... -
Page 5: Parts Diagram
PARTS DIAGRAM – Model No. 463241704 Tools required for assembly: Caster wrench - Provided Phillips screwdriver - Not provided Adjustable wrench - Not provided Estimated assembly time - 30-45 minutes 463241704 • 5... - Page 6 ASSEMBLY – Model No. 463241704 Place door brace onto front legs as shown. Tabs on brace fit inside legs. Secure brace to back of front legs using one 4.2X10mm self-tap screw (ZZ) each side. Rear view Rear view Left front leg...
-
Page 7: Assembly
Secure grill head to leg braces using four 1/4-20x3/4” screws (AAA) 7mm lock washers (BBB) , and flat washers (CCC) Screws must be attached from inside of grill head into brace. Do not fully tighten screws until side shelf and sideburner shelf are assembled. 463241704 • 7... -
Page 8: Side Shelf Assembly
(AAA) 7mm lock washer (BBB) , and flat washer (CCC) on each bracket. Fully tighten screws inside grill bottom at this time. CAUTION SHARP EDGES! Wear gloves if necessary. Repeat on front bracket Sideburner shelf assembly 80000315 8 • 463241704... - Page 9 Place ignitor wire through burner tube cutout in cup. burner-to-valve Secure with 5mm flat washers (EEE) 5mm lock washers (FFF) engagement #10-24 hex nuts (GGG) Short threads Sideburner Long 80001698 threads Sideburner Ignitor Wire Valve should be in center hole in burner tube. 463241704 • 9...
- Page 10 Sideburner grate 80000282 Valve clip Place cooking grates into grill bottom. Grate wires running front to back should be facing upward . . . side to side wires downward. Side-to-side wires on bottom. Cooking grate 80000293 10 • 463241704...
- Page 11 Press the top door pin down, align with hole in door brace, release door pin. Press pin on door top CAUTION Door assembly - right 80000323 Door assembly - left SHARP EDGES! Wear gloves if necessary. 80000320 463241704 • 11...
- Page 12 Slide condiment baskets into brackets on back of both doors. Condiment basket 80000267 Hang the match-lighting sticks and chains from the small hooks on the right and left side panels. Match-lighting stick 12 • 463241704...
- Page 13 CAUTION • Failure to install can in clip will cause hot grease to drip from bottom of grill with risk of fire or property damage. Grease clip 80000271 Grease cup 80000270 463241704 • 13...
-
Page 14: Using Grill
NOTE: Sideburner control gas hose panel not shown for clarity. 80001030 See Use & Care section for important safety instructions. Please read “Connecting Your Grill to the Natural Gas Source”, “Leak Test”, and “Burner Flame Check” before using grill. 14 • 463241704... -
Page 15: Use And Care
The socket should be left attached to the gas source (house plumber with a copy of these instructions. Incorrect piping). Figure C , on the following page, shows properly connection can result in a gas leak with possibility of fire. connected hose and socket. 463241704 • 15... - Page 16 Only ANSI Z21.54 approved Order new parts by giving the serial, model number and name hoses should be used with this grill. of items needed to the Grill Service Center at 1-800-241-7548. Always close gas source after performing leak test. 16 • 463241704...
- Page 17 Do not use on or under balconies. • NEVER attempt to light burner with lid closed. A buildup Lighting instructions continued on next page. of non-ignited gas inside a closed grill is hazardous. 463241704 • 17...
- Page 18 To maintain your grill’s high quality appearance, wash with mild detergent and warm soapy water and wipe dry with a soft cloth after each use. Baked-on grease deposits may require the use of an abrasive plastic cleaning pad. 18 • 463241704...
- Page 19 • Cover grill if stored outdoors. Choose from a variety of grill covers offered by manufacturer. • Store grill indoors ONLY if gas source is disconnected. • When removing grill from storage, follow “ Cleaning the Burner Assembly ” instructions before starting grill. 463241704 • 19...
- Page 20 When reheating takeout foods or fully cooked meats like hot dogs, grill to 165° F, or until steaming hot. 2 Burner Cooking Great indirect cooking on low. Produces slow, even heating. Ideal for slow roasting and baking. 20 • 463241704...
-
Page 21: Troubleshooting
After grill cools, remove and clean all parts. Flashback... • Burner and/or burner tubes are blocked. • Turn knobs to OFF. Clean burner and/or burner tubes. (fire in burner tube(s)). 463241704 • 21... - Page 22 • Electrodes are wet. • Has moisture accumulated • Use paper towel to remove moisture. on electrode and/or in burner ports? • Electrodes cracked or • Inspect electrodes for • Replace cracked or broken electrodes. broken “sparks at cracks. crack”. 22 • 463241704...
-
Page 23: Register Your Grill
PLEASE FILL OUT THIS CARD AND RETURN IT WITHIN 10 DAYS OF PURCHASE. FAILURE TO RETURN MAY AFFECT YOUR WARRANTY COVERAGE. Upon completion, remove this page from your manual and mail to: PRODUCT REGISTRATION DEPT. PO BOX 1240 COLUMBUS, GA 31902-1240 463241704 • 23... - Page 24 24 • 463241704...
- Page 25 463241704 • 25...
- Page 26 26 • 463241704...
- Page 27 463241704 • 27...
- Page 28 A Division of W.C. Bradley Co. • Columbus, GA 31902 • Printed in China...
