Skytech TS/R-AF1 Installation And Operating Instructions Manual

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS DO NOT

INTRODUCTION

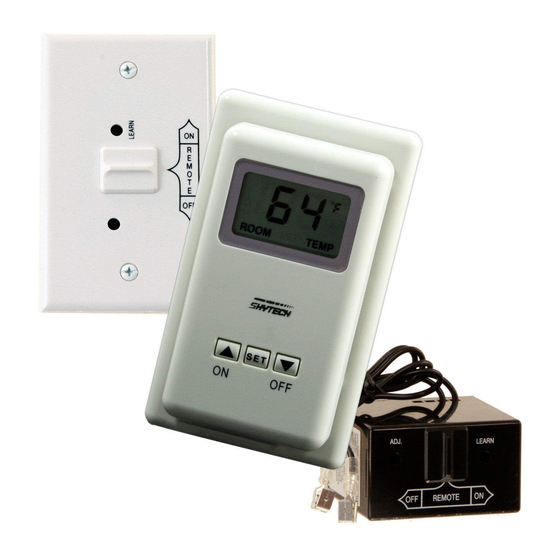

This remote control system was developed to provide a safe, reliable, and user-friendly remote control system for gas heating
appliances. The system can be operated thermostatically or manually from the transmitter. The system operates on radio frequencies
(RF) within a 20''range using non-directional signals. The system operates one of 1,048,576 security codes that are programmed into
the transmitter at the factory; the remote receiver's code must be matched to that of the transmitter prior to initial use.
Review COMMUNICATION SAFETY SECTION under TRANSMITTER section and THERMO SAFETY SECTION under REMOTE
RECEIVER section. These signal/temperature safety features shut down the fireplace system when a potentially unsafe condition exists.

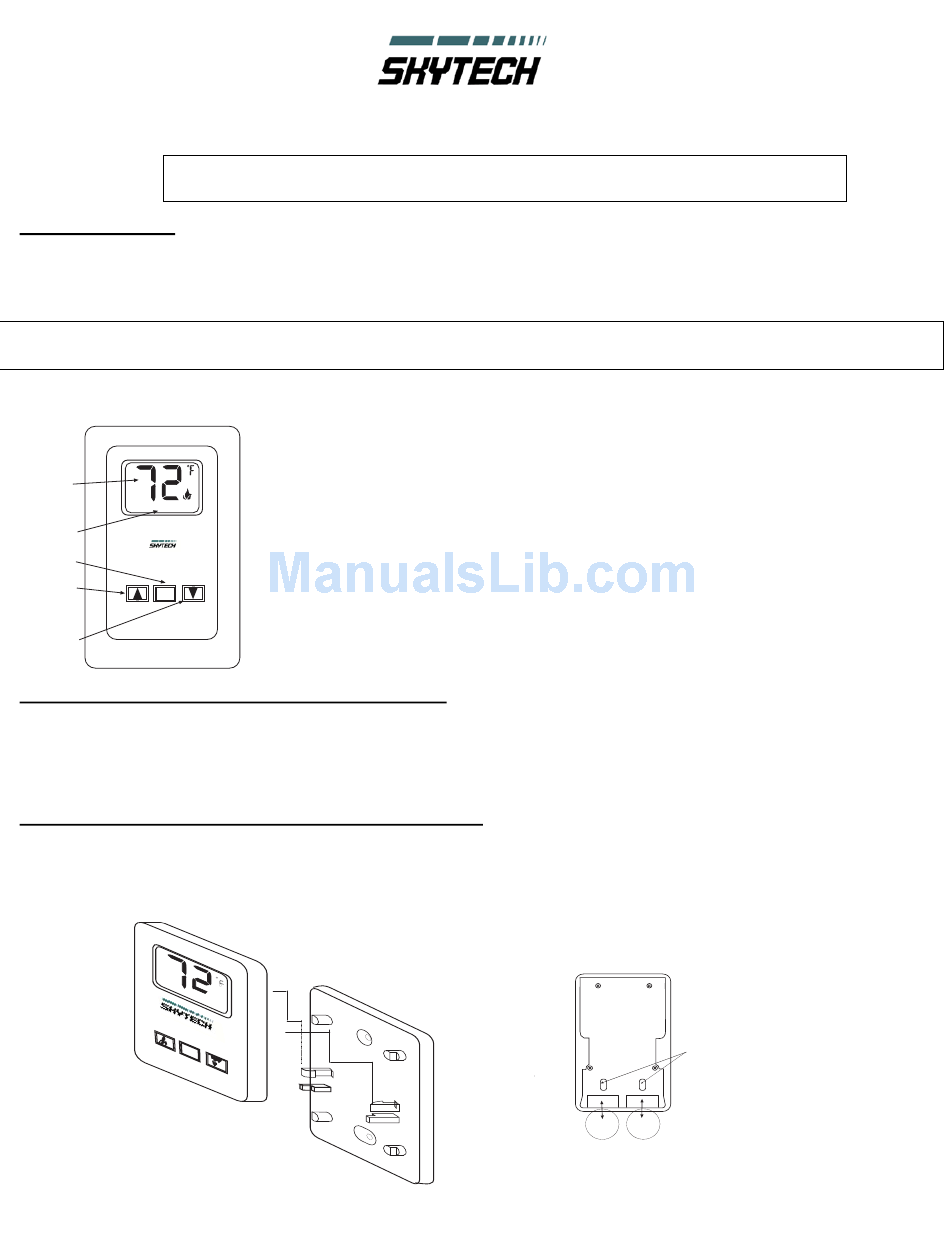

WALL MOUNT THERMOSTAT

LCD
DISPLAY
TEMP
ROOM "SET"
THERMO
MODE
SET
BUTTON
ON/UP
SET
BUTTON
ON OFF
OFF/DOWN
BUTTON

TO INSTALL BATTERIES IN THE WIRELESS THERMOSTAT

1. Remove face from backing plate this is done by sliding the face up about 1/2" then pull the face off the base plate. As shown in
Figure #1
2. Locate the (2) holders for the 3V button cell batteries.
3. Slide the button cell batteries into the battery holders. (Make sure that the batteries are installed with the (+) plus side facing
you or up.

TO REMOVE THE BATTERIES IN THE WIRELESS THERMOSTAT

1. Remove face from backing plate this is done by sliding the face up about 1/2" then pull the face off the base plate. As shown in
Figure #1
2. Locate the (2) holders for the 3V button cell batteries.
3. Insert a small screwdriver into the slot above the button cell battery and push the battery out. AS shown in Figure #2
R O
O M
S E
O N
INSTALLATION AND OPERATING INSTRUCTIONS
ATTEMPT TO INSTALL OR OPERATE
The wall/transmitter operates on (2) 3V Button Cell (Included) which powers the LCD screen and
powers the RF signal. These batteries are made specifically for remote controls and electronic
lighters. Before using the transmitter the 3V batteries must be installed into the battery
compartments.
It is recommended that CR2032 lithium batteries always be used for longer battery life and
maximum operational performance.
Upon initial use, there may be a delay of five seconds before the remote receiver will respond to
the transmitter. This is part of the system's design. If the LCD screen will not come on, check the
3V Button Cell battery.
Figure #1
T E
M P
T
O F
F
TS/R-AF1
Figure #2
BACK OF UNIT
Battery Removal
Slots
+
+
Plus
Plus
Side
Side
(2) 3 Volt Button
Cell Batteries
REV. 7/31/06 Page 1 of 6
