Skytech TS-3 Installation And Operating Instructions Manual

IF YOU CANNOT READ OR UNDERSTAND THESE INSTALLATION INSTRUCTIONS
INTRODUCTION
This TS-3 wired wall thermostat was developed to provide a safe, reliable control system for gas heating appliances. The
system can be operated thermostatically or manually from the wall unit.

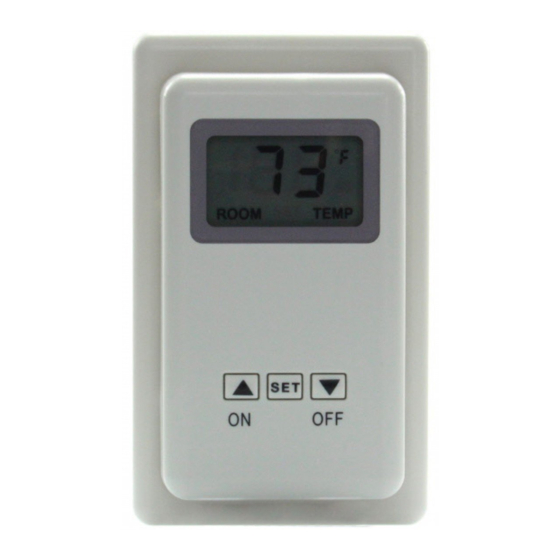

WALL MOUNT THERMOSTAT
LCD
DISPLAY
ROOM
THERMO
MODE
SET
BUTTON
ON/UP
BUTTON
ON
OFF/DOWN
BUTTON
R O
O M
T E
M P
S E
O N T
Skytech: TS-3 Wired Thermostat
INSTALLATION AND OPERATING INSTRUCTIONS
DO NOT ATTEMPT TO INSTALL OR OPERATE
The TS-3 wired thermostat operates on (2) 3V Button Cell (Included) which
powers the LCD screen and circuit board. Before using the TS-3 wall
thermostat the 3V batteries must be installed into the battery
compartments.
It is recommended that CR2032 lithium batteries always be used for
"SET" TEMP
longer battery life and maximum operational performance. If the LCD screen
will not come on, check the 3V Button Cell battery.

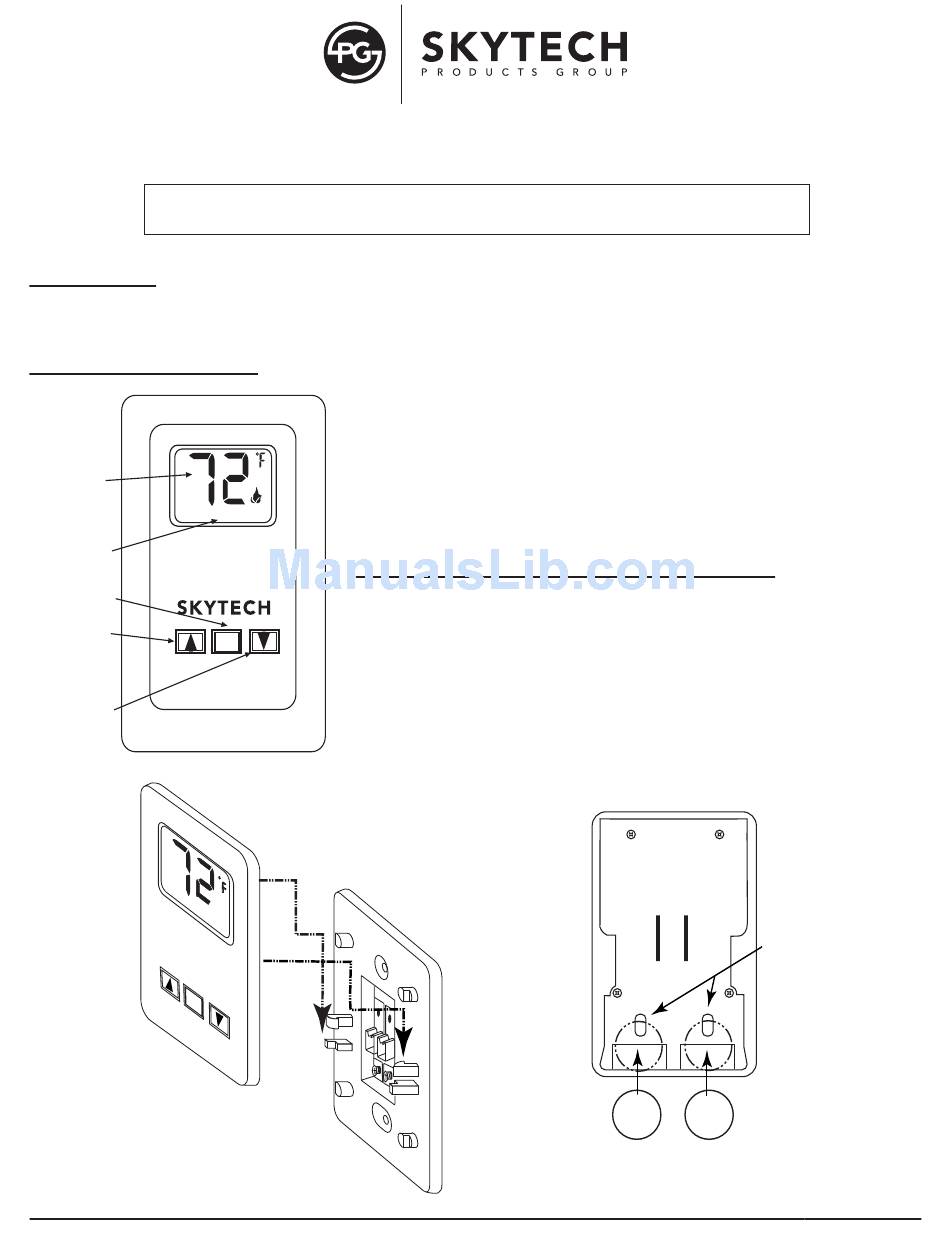

TO INSTALL BATTERIES IN THE THERMOSTAT (TS-3)
1. Remove face from backing wall plate this is done by sliding the face up
about 1/2" then pull the face off the base plate. As shown in Figure 1.
2. Locate the (2) holders for the 3V button cell batteries (See Figure 2).
SET
3. Slide the button cell batteries into the battery holders. (Make sure that
OFF the batteries are installed with the (+) plus side facing you or up.
4. Reinstall the face to the backing plate this is done by sliding the
face in and down about 1/2" then check that the (2) male terminal
connectors on the face are engaged in the female terminal connectors
on the backing plate. As show in Figure 1.
O F
F
Figure 1
Model: TS-3
Battery
Removal
Slots
+ +
Plus Plus
Figure 2
Side Side
(2) 3 Volt Button
Cell Batteries
REV. 8-30-17 Page 1
