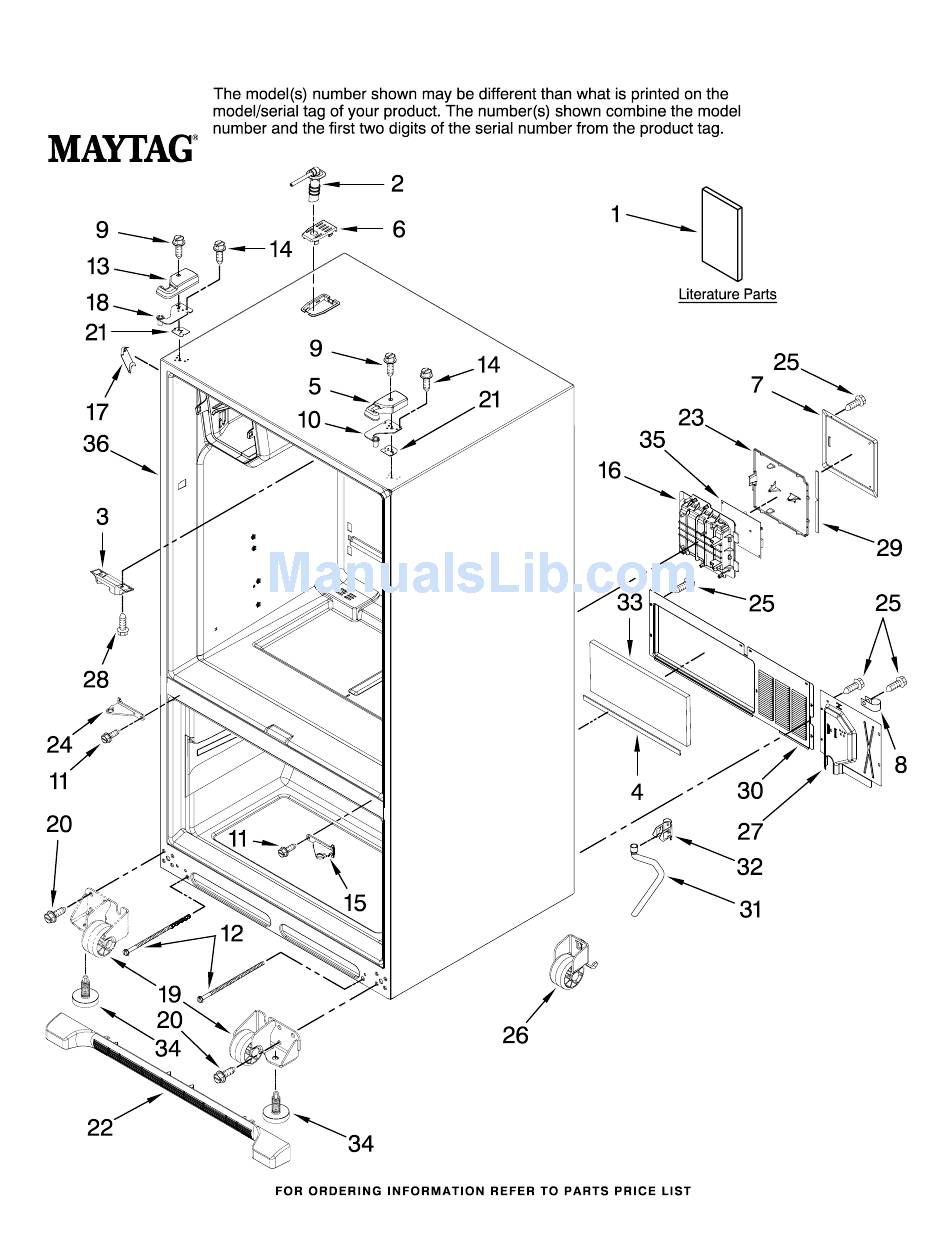

- Page 1 CABINET PARTS REFRIGERATOR For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) 1−08 Litho In U.S.A. (pl) Part No. W10183316 Rev. A...
-
Page 2: Cabinet Parts
CABINET PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006697 Screw, Adjusting Grille, Toe Literature Parts (Rear Roller) W10131133 White W10164064 Tech Sheet Cover, Top Hinge W10131135 Bisque W10164010 Use &... -
Page 3: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) W10183316... - Page 4 REFRIGERATOR LINER PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 67006328 Module, Light 67006326 Foil, Light 67006327 Cover, Light 67006316 Grille, Air 12466103 Switch, Light (2) 67006318 Cover, Light...
-
Page 5: Shelf Parts
SHELF PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) W10183316... - Page 6 SHELF PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) Illus. Part DESCRIPTION 67002332 Glass, Pantry 67005923 Front, Crisper Pan (2) 67006977 Shelf, Mini (Stationary) 67006010 Extr, Glass Support (2) 67002330 Brace, Pantry (2) 67001719 Track, Pantry 67006287 Screw...
-
Page 7: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) W10183316... - Page 8 MOTOR AND ICE CONTAINER PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) Illus. Part DESCRIPTION 1 W10149456 Icemaker (Includes Fill Tube Cup, Wire Harness & Sensor Arm 67006334 Impinger Assembly 67006335 Shroud, Ice Box Fan 4 W10162697 Motor, Fan...
-
Page 9: Freezer Liner Parts
FREEZER LINER PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) W10183316... - Page 10 FREEZER LINER PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) Illus. Part DESCRIPTION Liner (Not A Seviceable Part) 12002355 Thermistor Kit 12002497 Gear (Left) (Incl. #7) 67003924 Cover, Thermistor 67004017 Shaft, Rack Y12570701 Socket, Light 12002497 Gear, (Right) (Incl.
-
Page 11: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) W10183316... - Page 12 REFRIGERATOR DOOR PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Door, Left 67006113 Mount, Handle Stop, Door W10174213 White 12962106 Waterline, Door 12968202W White W10173928 Black 67006310 Bin, Shelf...
-
Page 13: Dispenser Front Parts
DISPENSER FRONT PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Housing, Dispenser 67006400 Screw Sump, Dispenser 67006295 Ring, Target (Not Serviced) 67006394 White Facade, Dispenser Dispenser Keyboard 67006399 Black... -
Page 14: Freezer Door Parts
FREEZER DOOR PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Freezer Door 67007119 Bracket/Glide Gasket, Door Assembly W10174214 White W10162897 White 67007118 Glide, Upper W10173929 Black W10162895 Black... -
Page 15: Unit Parts
UNIT PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) W10183316... - Page 16 UNIT PARTS For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 67006131 Condenser 67006433 Screw Following Parts Not Illustrated 10623002 Clip, Evaporator 2 W10162928 Blade, Fan and Optional Parts Not Included...
- Page 17 OPTIONAL PARTS (NOT INCLUDED) For Models: MFI2067AEB12, MFI2067AEQ12, MFI2067AES12, MFI2067AEW12 (Black) (Bisque) (Stainless) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Parts Not Illustrated and Refinishing Material Miscellaneous Optional Parts (Not Included) 799340 Enamel, Black 212643 Sealer, Gum (1 Qt.
