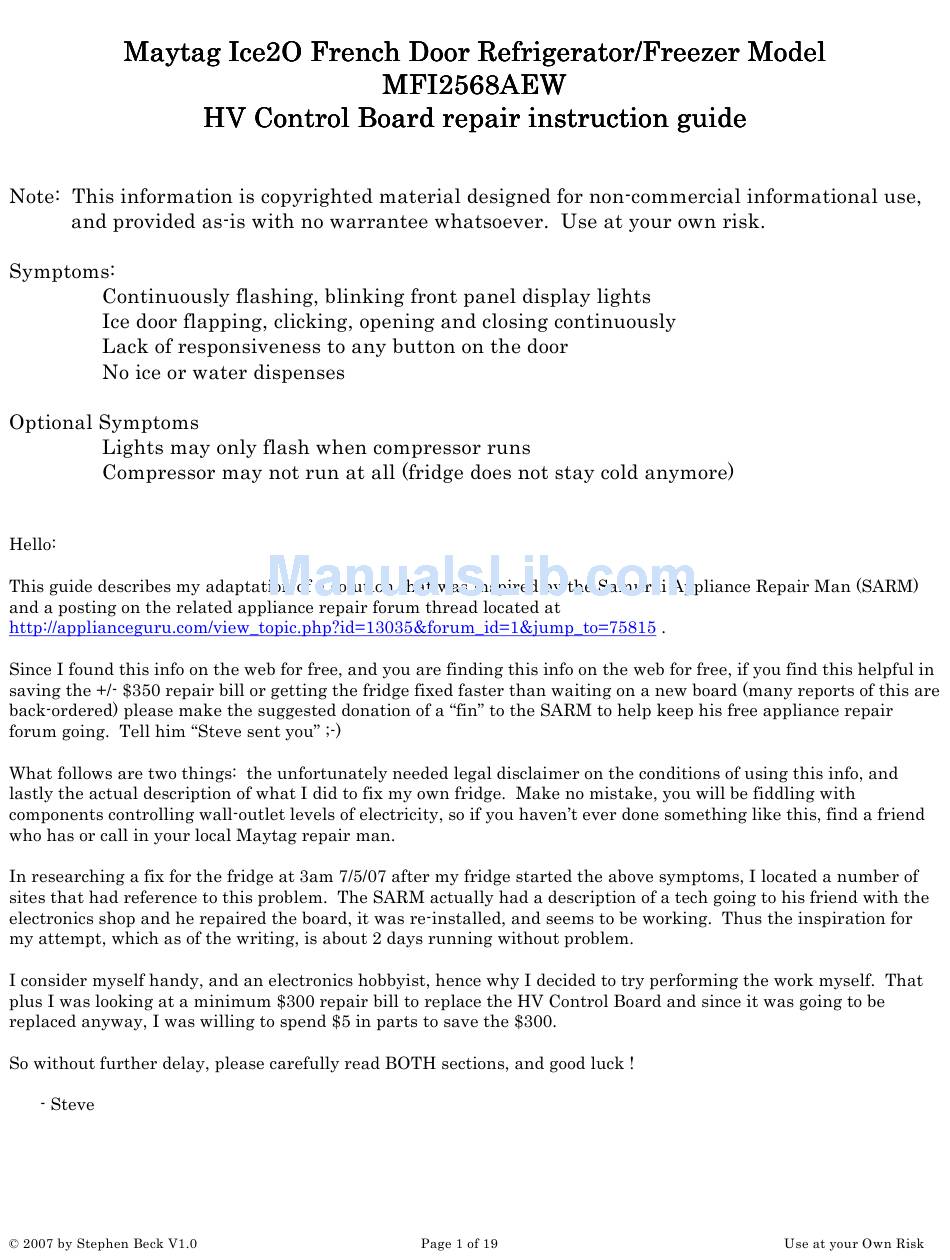

  • Page 1

    • • • • • •...

  • Page 2

    • • • • • • • • • • • • • •...

  • Page 5

    Fig. 1 © 2007 Stephen Beck...

  • Page 6

    View looking down from the top of the ice/water dispenser Power to flapper door and water dispenser © 2007 Stephen Beck Fig. 2...

  • Page 7

    Fig. 3 © 2007 Stephen Beck Fig. 4 © 2007 Stephen Beck...

  • Page 8

    Fig. 5 © 2007 Stephen Beck Two bad caps – to be replaced. One good cap. Possible curved top like a dome Note flat top © 2007 Stephen Beck Fig. 6...

  • Page 9

    Behind label Fig. 7 © 2007 Stephen Beck Release Clip. All 4 connectors similar Fig. 8 © 2007 Stephen Beck PCB hold-down clips Fig. 9 © 2007 Stephen Beck...

  • Page 10

    © 2007 Stephen Beck Fig. 10 Fig. 11 © 2007 Stephen Beck...

  • Page 11

    © 2007 Stephen Beck Failed Caps Domed tops Good Cap Fig. 12 Flat top Positive terminal Negative Failed caps - solder side of PCB terminal Fig. 13 © 2007 Stephen Beck...

  • Page 12

    Negative (-) Negative (-) Minus terminals terminal sign Minus signs Minus signs Fig. 15 Fig. 14 © 2007 Stephen Beck © 2007 Stephen Beck...

  • Page 13

    Minus signs caps Plus signs on PCB Fig. 16 © 2007 Stephen Beck Fig. 17 © 2007 Stephen Beck...

  • Page 14

    © 2007 Stephen Beck Check for, and remove solder bridges across Fig. 18 here Fig. 19 © 2007 Stephen Beck ☺...

  • Page 15

    Fig. 20 © 2007 Stephen Beck Fig. 21 Fig. 22 © 2007 Stephen Beck © 2007 Stephen Beck Fig. 23 © 2007 Stephen Beck...

  • Page 16

    Fig. 24 © 2007 Stephen Beck ☺...

  • Page 17

    ☺...

  • Page 18

    Fig. 25 © 2007 Stephen Beck...

  • Page 19

    View looking down from the top of the ice/water dispenser Power to flapper door and water dispenser © 2007 Stephen Beck Fig. 26...
