Whirlpool YLEQ5000KQ2 Parts List
Whirlpool YLEQ5000KQ2 Parts List

Whirlpool YLEQ5000KQ2 Parts List

Whirlpool 29" electric dryer parts list

Advertisement

Quick Links

CABINET PARTS
29"ELECTRIC DRYER
For Models: YLEQ5000KQ2, YLEQ5000KW2
(Designer White) (White/Grey)
02−04 Litho in U.S.A. (djc)
1
Part No. 8180224

Advertisement

loading
Need help?

Need help?

Do you have a question about the YLEQ5000KQ2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Whirlpool YLEQ5000KQ2

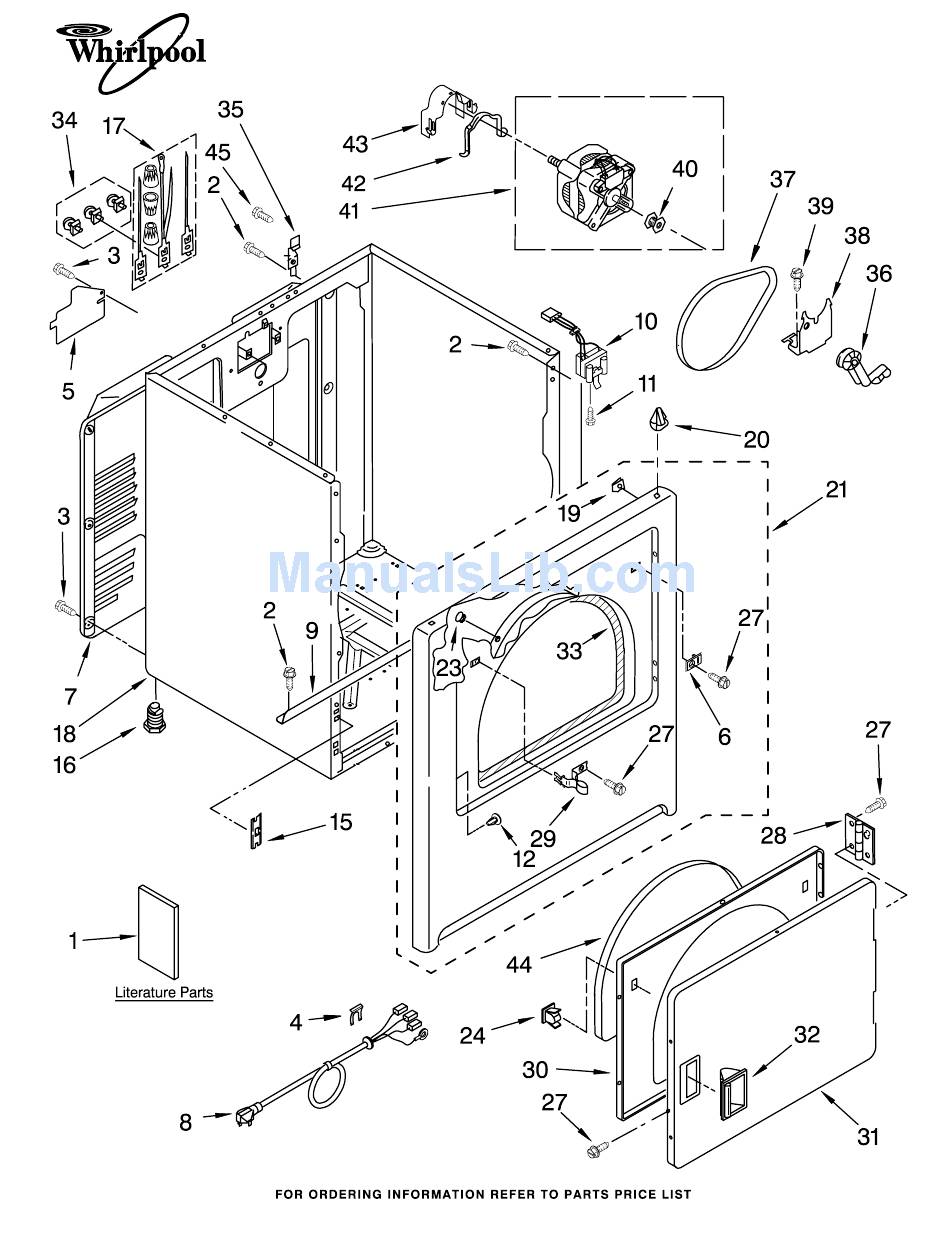

  • Page 1 CABINET PARTS 29"ELECTRIC DRYER For Models: YLEQ5000KQ2, YLEQ5000KW2 (Designer White) (White/Grey) 02−04 Litho in U.S.A. (djc) Part No. 8180224...
  • Page 2 CABINET PARTS For Models: YLEQ5000KQ2, YLEQ5000KW2 (Designer White) (White/Grey) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3403630 Plug, Strike 342055 Screw, 8−18 x 1/2 Literature Parts Hole 3405514 Hinge, Door LIT8535831 Installation 3396805 Panel, Rear 3403431 Strike, Door...
  • Page 3 TOP AND CONSOLE PARTS For Models: YLEQ5000KQ2, YLEQ5000KW2 (Designer White) (White/Grey) 8180224...
  • Page 4 TOP AND CONSOLE PARTS For Models: YLEQ5000KQ2, YLEQ5000KW2 (Designer White) (White/Grey) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 688805 Clip 357213 Nut, Push−In (2) 8274261 Panel, Rear Console 8271390 Top 8299870 Harness, Wiring 297535 Bumper, Lint Lid 3977456 Switch,...
  • Page 5 BULKHEAD PARTS For Models: YLEQ5000KQ2, YLEQ5000KW2 (Designer White) (White/Grey) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 343641 Screw, 10−16 x 1/2 3390647 Screw, 8−18 x 1/2 348368 Lint Chute 690997 Ring, Tri 8541818 Box, Heater Assembly 3399506 Shaft, L.H.
