Whirlpool YLEV4634JQ1 Parts List

29" electric dryer
Hide thumbs

Advertisement

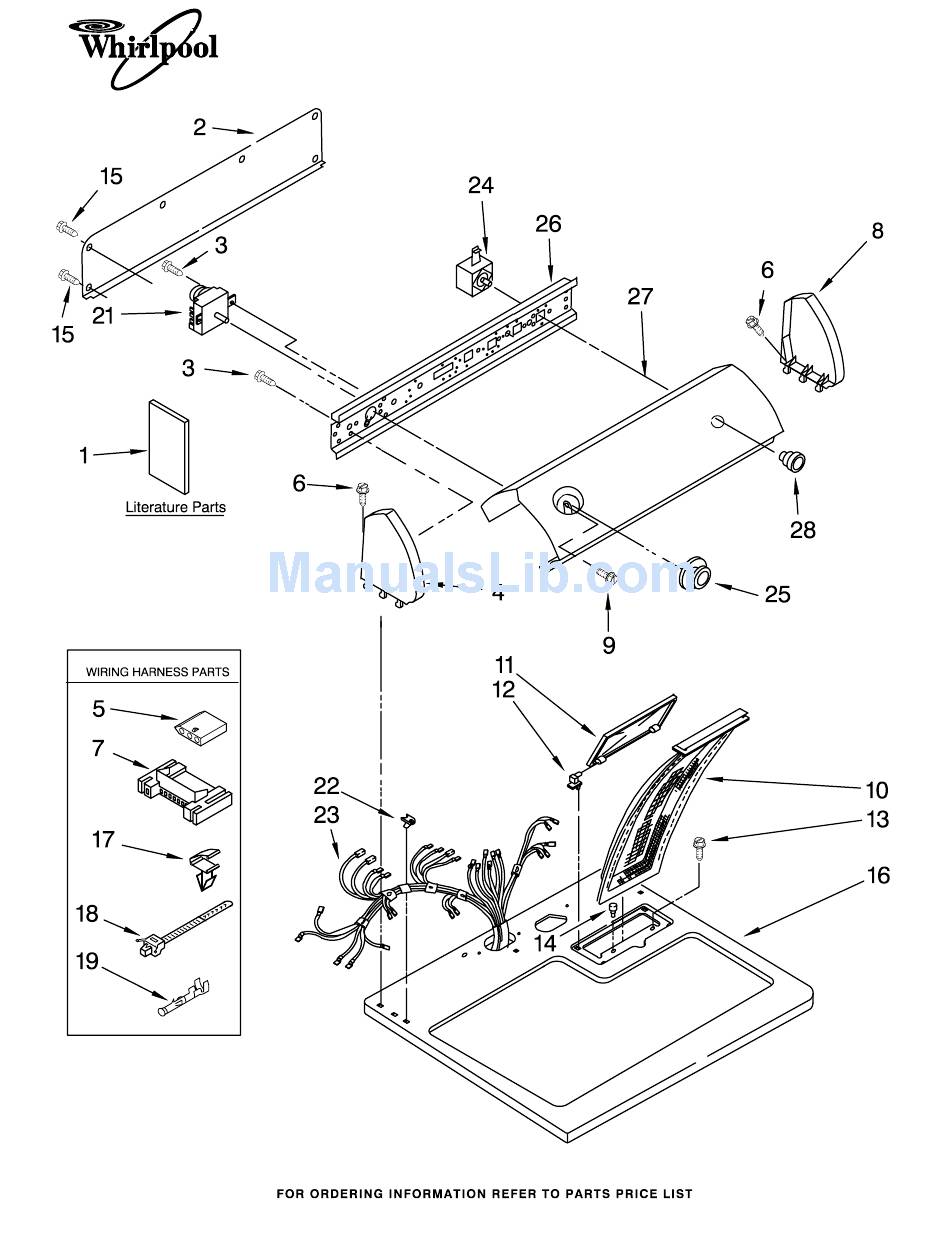

TOP AND CONSOLE PARTS
29" ELECTRIC DRYER
For Model: YLEV4634JQ1
(Designer White)
1
6−02 Litho in U.S.A. (djc)
Part No. 4377985 Rev. B
