DR-850 Dual Channel RF Receiver for Wireless Microphone
One or two dual channel receiver modules can be installed in the Titan Neo.
Each receiver has 96 selectable channels to assure interference-free operation
and is equipped with a diversity antenna for added sensitivity.
1
2
03 04
A
OFF CH.A
SET
4 5
Operation
Dual Channel Receiver
•
Tuning single receiver
Tuning single channel
Turn receiver Ch.A or Ch.B "on", turning volume/power switch clockwise
1.
to 12 o'clock.
The receiver will display the last channel previously selected.
2.
To select a different channel press the "SET" selector until the light blinks.
3.
Using the "UP / DOWN" buttons search for the desired channel. Press the
"SET" selector again until the light stops blinking.
Tune the transmitter frequency to match the displayed channel on the
4.
receiver to begin operation. The receiver will display the signal strength
of the transmitter
•
Tuning two receivers
•
With two receiver turned on, the SET switch operates as a mode switch.
•
The first press controls functions on the "A" receiver.
•
The next press controls functions on the "B" receiver.
•
The next press sets the receivers to normal operate mode.
•
Each consecutive press will repeat the cycle.
Titan Neo COMPONENTS & OPERATION
3
UHF-Duo
B
OFF CH.B
6
.
Owner's Manual

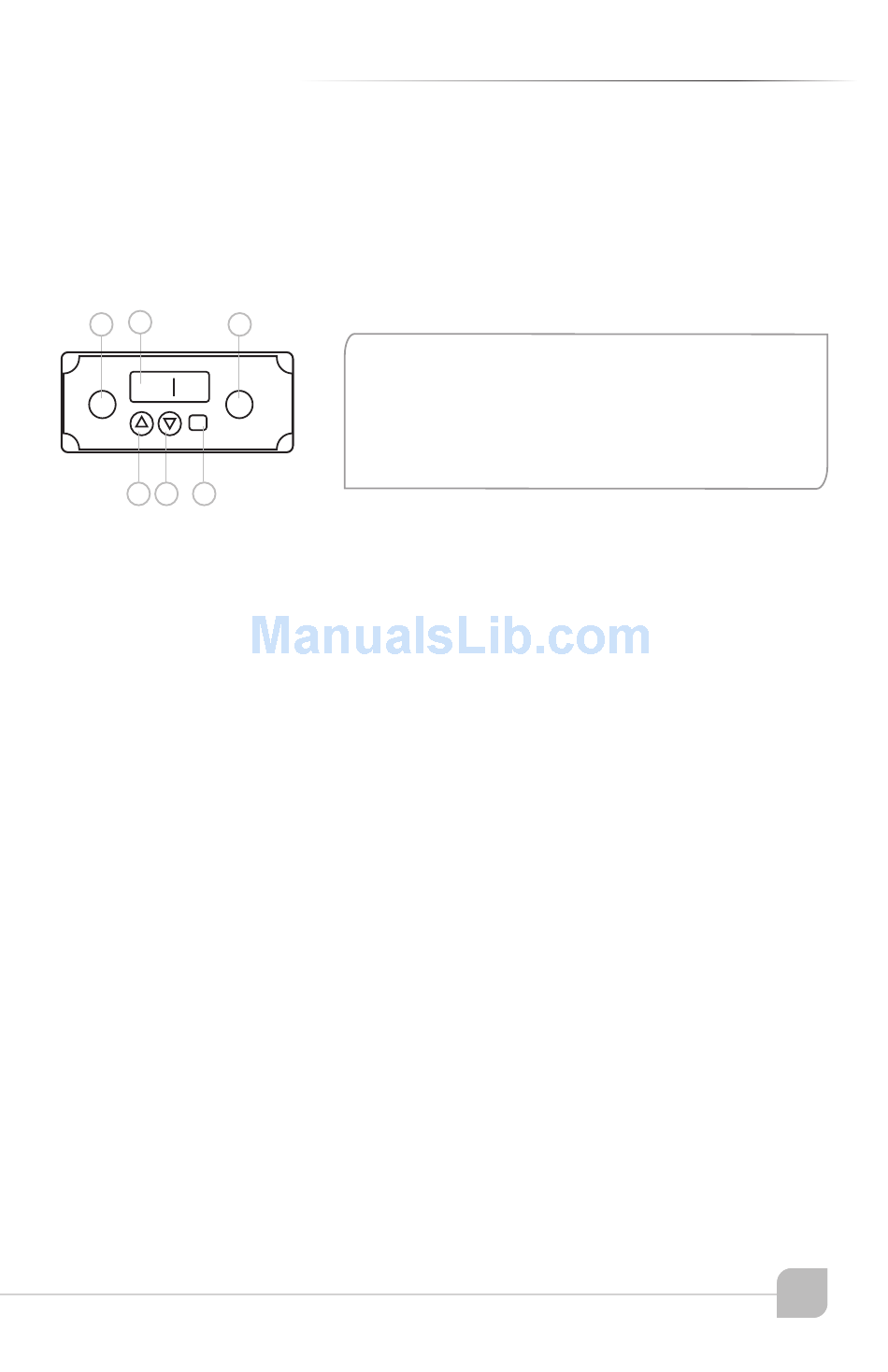

1
LCD Display: Ch. # or Freq. Readout
2
Receiver Ch.A "on/off" and Master Gain
3
Receiver Ch.B "on/off" and Master Gain
4
Channel "Up" Selector
5
Channel "Down" Selector
6
Channel/Set Selector
