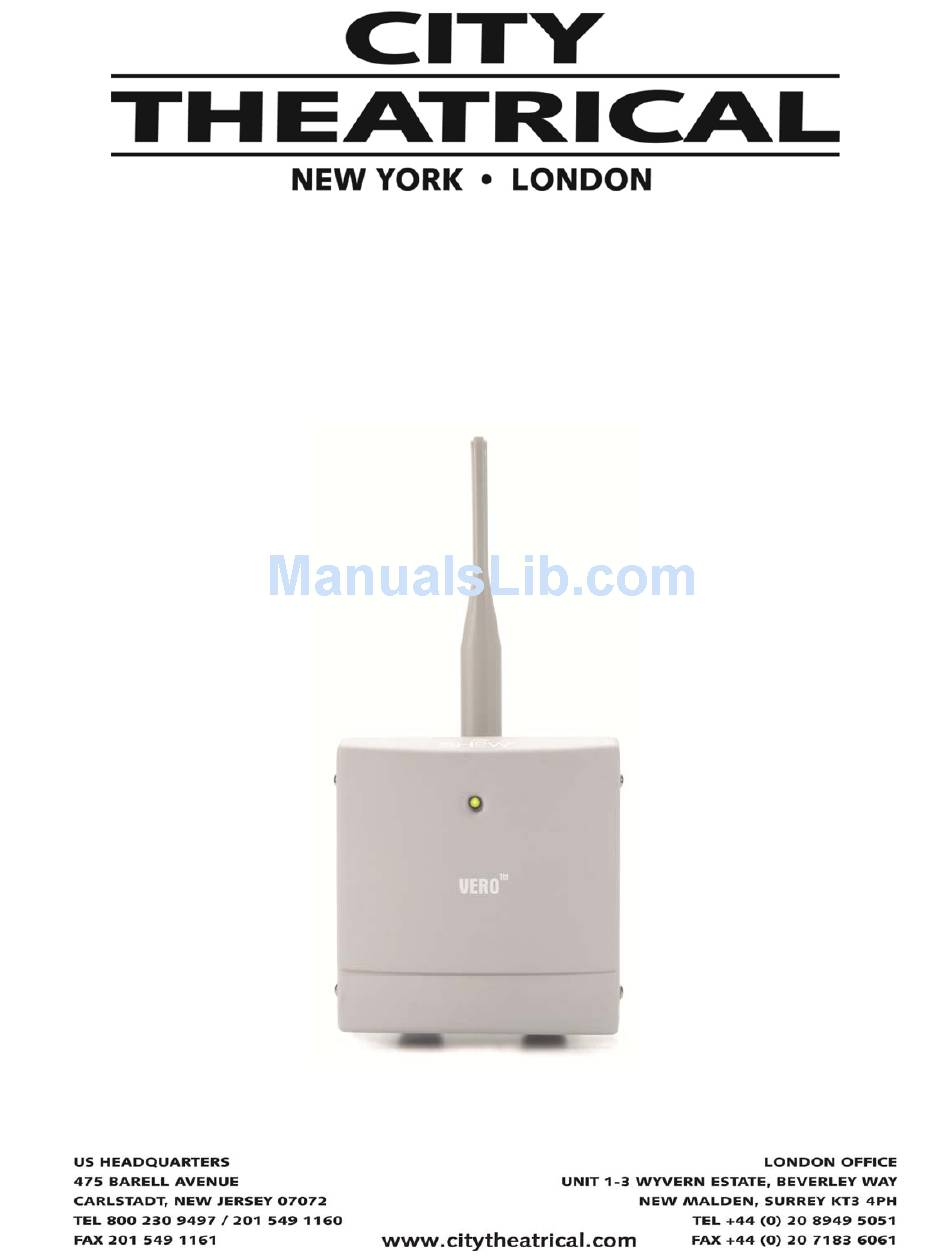

- Page 1 ® 7400-5707 SHoW DMX Vero Transceiver User’s Manual Rev 1 © 2012 City Theatrical, Inc. SHoW DMX Transceivers are covered by U.S. Patent # 7,432,803 and other patents pending...
-
Page 2: Table Of Contents
System Compliance Information .................. 7 Safety Notices, Ratings and Power Requirements ............. 7 Introduction ........................8 Setting up the 7400-5707 SHoW DMX Vero Transceiver ..........9 Installation ........................9 Warning ........................9 Important use notes ....................9 ... -
Page 3: Radio Compliance Information
City Theatrical Inc. vakuuttaa täten että dieses produkt tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien näiden direktiivien muiden ehtojen mukainen. City Theatrical Inc. déclare que le produit est conforme aux conditions essentielles et aux dispositions relatives à la directive 1999/5/EC. -
Page 4: Antennas
Do not use this product near water, for example, in a wet basement or near a swimming pool. Avoid using this product during an electrical storm. There may be a remote risk of electric shock from lightning. Product Installation and Configuration Guide © City Theatrical Inc. 2011 Q52 Regulatory information Radio Frequency Notifications Belgique Dans le cas d'une utilisation privée, à... - Page 5 ETSI power settings for all 5792 SHoW DMX Neo Radio module equipped products, including the SHoW DMX Vero Transceiver, are based on use with the CTI 5630 5 dBi Omni Antenna. ETSI power and range will vary with the antenna used. Contact your dealer or City Theatrical for more information. CE Mark Conformity...
-
Page 6: 5792 Show Dmx Neo Radio Module Ce Declaration Of Conformity
5792 SHoW DMX Neo Radio Module CE Declaration of Conformity... -
Page 7: System Compliance Information
Maximum operating temperature: 0°C - 40°C. Warning: The 7400-5707 SHoW DMX Vero Net Transceiver must be mounted exclusively in an upright mounting position with the cable entries on the bottom and antenna connector on the top as shown in the Installation guide. See the Installation Guide in this document for details. -
Page 8: Introduction
Introduction Thank you for using City Theatrical’s 7400-5707 SHoW DMX Vero Transceiver. The 7400-5707 SHoW DMX Vero Transceiver features include: NEMA 4 /IP 66 rated enclosure Transceiver, fully configurable for Transmit or Receive One model, FCC, IC and CE Certified... -
Page 9: Setting Up The 7400-5707 Show Dmx Vero Transceiver
Setting up the 7400-5707 SHoW DMX Vero Transceiver Installation Install the SHoW DMX Vero Transceiver in a suitable location, following the instructions below. When selecting a mounting location, note that for best results the antennas in your system must be within sight of each other. -
Page 10: Mounting Orientation
Head Security Screw in the hole on the left side of the Bracket assembly. Mounting Orientation The 7400-5707 SHoW DMX Vero Transceiver must be mounted exclusively in an upright mounting position with the cable entries on the bottom and antenna connector on the top as shown in the drawing above. -
Page 11: Cable Or Conduit Entry
Cable or Conduit Entry The unit enclosure is provided with ½” NPT entry holes fitted with liquid-tight cable grips for use with outdoor use cables (by installer) for power and DMX connection. The recommended torque for these cable grips is as follows: Locking Nut ... -
Page 12: Installing The Cover
Installing the Cover The 7400-5707 SHoW DMX Vero Transceiver has a two part cover, with the outer plastic cover connected to the inner metal cover with a hinge. Install the metal inner cover using the eight provided 6- 32 x .375” SS Truss Head Machine Screws. Hand install these screws until the screw threads are fully engaged with the mating PEM Nut, then tighten to 4 inch pounds. -
Page 13: The 7400-5707 Show Dmx Vero Transceiver Settings
The 7400-5707 SHoW DMX Vero Transceiver Settings Internal Markings Configuration You can configure the Vero Transceiver’s basic operating settings using the System Settings (SHoW ID and Configuration) switches shown in the detail above. Configuration switches: P5, DMX Term: DMX512 termination On or Off. Turn On for end-of-line DMX512... -
Page 14: Show Id
P4, Rx/Tx: Receiver (Rx) On, or Transmitter (Tx) Off. Selects Receiver or Transmitter operation P3, Reset: On or Off. Switch On to hold in Reset P2 Bootloader: On or Off. Sets the unit to Bootloader mode to upload and install radio firmware upgrades from a connected SHoW DMX Neo Transceiver or Receiver. - Page 15 Full Full Full Full Full Full Full Full Full Full Full SHoW ID Mode Hopping Pattern Bandwidth Limited Low, Wi-Fi 1-6 Limited Low, Wi-Fi 1-6 Limited Low, Wi-Fi 1-6 Limited Low, Wi-Fi 1-6 Limited Low, Wi-Fi 1-6 Limited Low, Wi-Fi 1-6 Limited Low, Wi-Fi 1-6 Limited Low, Wi-Fi 1-6 Limited Low, Wi-Fi 1-6...
-
Page 16: Neo Adaptive Mode Operation
Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 Limited Mid, Wi-Fi 5-9 SHoW ID Mode Hopping Pattern Bandwidth Limited High, Wi-Fi 7-11 Limited High, Wi-Fi 7-11 Limited High, Wi-Fi 7-11 Limited High, Wi-Fi 7-11 Limited High, Wi-Fi 7-11... -
Page 17: Adjustable Output Power
Adjustable Output Power The broadcast power of the SHoW DMX Vero Transceiver is adjustable to allow the user to calibrate the system’s broadcast power to match the requirements of the application. Limited Bandwidth Hopping In the Limited Bandwidth Hopping mode, the SHoW DMX Vero Transceiver system is assigned to one of three sub-bands of the full 2.4Ghz spectrum. - Page 18 0x0020 SUPPORTED_PARAMETERS 0x0050 PARAMETER_DESCRIPTION 0x0051 DEVICE_INFO 0x0060 Reports Category 0x0801 PRODUCT_DETAIL_ID_LIST 0x0070 Repots ID 0x0604 DEVICE_MODEL_DESCRIPTION 0x0080 MANUFACTURE_LABEL 0x0081 City Theatrical, Inc. DEVICE_LABEL 0x0082 FACTORY_DEFAULTS 0x0090 SOFTWARE_VERSION_LABEL 0x00C0 Reports CE/FCC DMX_PERSONALITY 0x00E0 Sets Limited Burst DMX_PERSONALITY_DESCRIPTIO 0x00E1 DMX_START_ADDRESS 0x00F0 SENSOR_DEFINITION...
-
Page 19: Optional Or Custom Antenna Accessories
Optional or Custom Antenna Accessories You system may have been supplied with optional or custom antenna distribution accessories such as antennas, splitters, attenuators, lighting arrestors, or other devices. Please contact City Theatrical directly for details.
