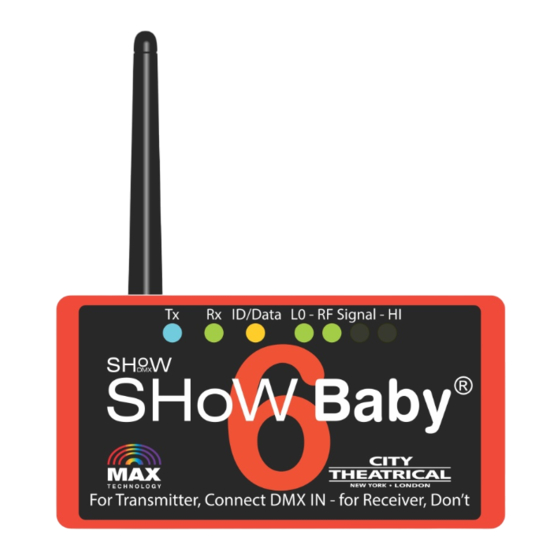

- Page 1 ® SHoW DMX SHoW Baby Wireless DMX Transceiver P/N 5702M User’s Manual Rev 4.0 © 2018 City Theatrical, Inc. SHoW DMX Transceivers are covered by U.S. Patent # 7,432,803 and other patents pending.
-
Page 2: Table Of Contents
Table of Contents Radio Compliance Information ...................... 3 5792M SHoW DMX Radio CE Declaration of Conformity ............6 System Compliance Information ....................7 Safety Notices ..........................7 Introduction ........................... 8 ® SHoW DMX SHoW Baby 6 Neo Settings ................8 ®... -
Page 3: Radio Compliance Information
20 centimeters is maintained between the Product’s antenna and personnel in the vicinity of the device. Modification Warning Caution: changes or modifications to this equipment, not expressly approved by City Theatrical Inc. could void the user’s authority to operate the equipment. Industry Canada Notifications This Class B digital apparatus complies with Canadian ICES-003. - Page 4 2.5dBi CE Mark Conformity City Theatrical Inc. declares that this product conforms to the specifications listed in this manual, following the provisions of the European R&TTE directive 1999/5/EC: City Theatrical Inc. vakuuttaa täten että dieses produkt tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä...
- Page 5 Product Installation and Configuration Guide © City Theatrical Inc. 2011 Q52 Regulatory information Radio Frequency Notifications Belgique Dans le cas d'une utilisation privée, à l'extérieur d'un bâtiment, au-dessus d'un espace public, aucun enregistrement n'est nécessaire pour une distance de moins de 300m. Pour une distance supérieure à...
-
Page 6: 5792M Show Dmx Radio Ce Declaration Of Conformity
5792M SHoW DMX Radio CE Declaration of Conformity... -
Page 7: System Compliance Information
System Compliance Information ® The 5702M SHoW DMX SHoW Baby 6 Transceiver is CE Certified Standards Applied: BS EN 60950-1:2002 incorporating Corrigendum No. 1 and Amendment No. 1 EN 55203-1: 1996 EN 55203-2: 1996 EN 301 489-1 V1.4.1 EN 301 489-3 V1.4.1... -
Page 8: Introduction
Included 2dBi Omni-directional Antenna Neutrik® 5P XLR Connectors for DMX IN and DMX OUT (3 pin in 5702M-3) Every effort has been made to anticipate your questions in this manual, but if you have any questions that are not answered here, or you want to discuss a special application, please feel free to contact us directly at City Theatrical. -
Page 9: Show Dmx Show Baby 6 Antennas
SHoW DMX SHoW Baby 6 Antennas The SHoW DMX SHoW Baby 6 is shipped with a 2dBi omni directional antenna. Any of the ® approved antennas listed above may be used with the SHoW DMX SHoW Baby 6 (please note the special installation requirements for use with the CTI # 5636 14 dBi Yagi Antenna). ETSI power settings for all 5792M SHoW DMX Neo Radio module equipped products, including the SHoW DMX SHoW Baby 6, are based on use with the CTI 5630 5 dBi Omni Antenna. -
Page 10: Receiver Setup
Receiver Setup You will need at least one SHoW DMX SHoW Baby 6 to use as a receiver. 1. Install the SHoW Baby 6 you will use for a receiver in a convenient location where you can reach it with a DMX cable to the device (or devices) it will be providing DMX for. As with the SHoW Baby 6 transmitter, locate the unit higher in the air for best results, and try to place your SHoW Baby 6 receiver where its antenna will be within line of sight with the transmitter. -
Page 11: Installing The Mounting Bracket
In order to use RDM, you will also need an RDM controller or a lighting control console with a built-in RDM controller. ® SHoW DMX SHoW Baby 6 supports the following read-only PIDs: PROXIED_DEVICE_COUNT PROXIED_DEVICES_ENHANCED SUPPORTED_PARAMETERS PARAMETER_DESCRIPTION PRODUCT_DETAIL_ID_LIST DEVICE_MODEL_DESCRIPTION MANUFACTURER_LABEL FACTORY_DEFAULTS SOFTWARE_VERSION_LABEL SENSOR_DEFINITION...
