Summary of Contents for City Theatrical Multiverse Vero

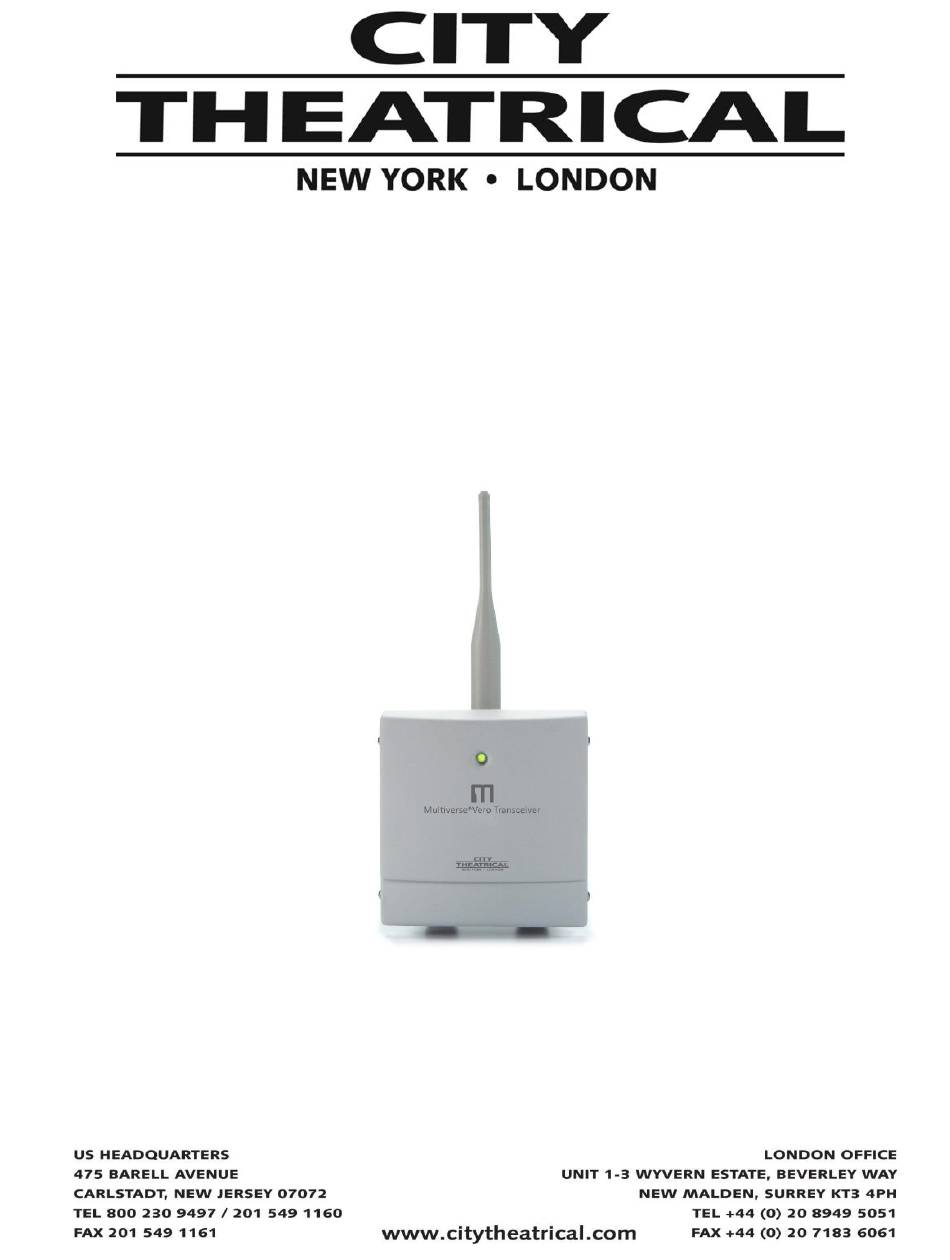

- Page 1 900MHz/2.4GHz P/N 7400-5902 User’s Manual Rev 1.0 © 2021 City Theatrical, Inc. Multiverse Transmitters are covered by U.S. Patents #7,432,803 B2, #10,129,964 B1, and other patents pending. This product is licensed for use in North America only. Made in USA...
-
Page 2: Table Of Contents
Table of Contents Compliance ............................3 Safety Notices ..........................3 Introduction ............................4 ® 7400-5902 Multiverse Vero Transceiver Features ..............4 Installation ............................5 Surface Mounting ........................6 Pipe Mounting .........................6 Face Panel ..........................7 User Interface Screen ......................8 User Interface Icons ......................10 RDM Settings ........................12 Updating Firmware ...................... -
Page 3: Compliance
Compliance FCC Compliance Statement (United States) This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Introduction
Multiverse SHoW ID. The Multiverse Vero Transceiver is housed in a NEMA 4 / IP66 package that provides protection from the outdoor elements. Its internal backlit LCD display simplifies setup and gives feedback on system performance. -
Page 5: Installation
A bracket for surface mounting or mounting from a pipe Installation Install the Multiverse Vero Transceiver in a suitable location, following the instructions below. For best results the antennas in your system must be within sight of each other. Warning... -
Page 6: Surface Mounting
Pipe Mounting The Multiverse Vero Transceiver can also be mounted on a pipe. Attach the Mounting Bracket Base to a pipe using a stainless steel hose clamp (not included) as shown: Page 6 of 15... -
Page 7: Face Panel
Slide the mating Mounting Bracket (attached to the Unit) into the Mounting Bracket Base until the locking clip engages, and install the retaining Screw. Cable or Conduit Entry The unit enclosure is provided with ½” NPT entry holes fitted with liquid-tight cable grips for use with outdoor use cables (by installer) for power and DMX connection. -
Page 8: User Interface Screen
(see illustration above). DMX Input / Output connections are marked on the unit. Installing the Cover The Multiverse Vero Transceiver has a two part cover, with the outer plastic cover connected to the inner metal cover with a hinge. Install the metal inner cover using the eight provided 6-32 x .375”... - Page 9 Using A Spectrum Analyzer To Choose A SHoW ID It is a good practice to utilize a device such as City Theatrical’s PN5988 RadioScan™ Spectrum Analyzer to analyze the spectrum in the area of the broadcast. RadioScan is a 900MHz and 2.4GHz spectrum analyzer, utilizing a hardware dongle and accompanying software, that enables...
-
Page 10: Table 1: Selecting Your Multiverse Show Id
Separate universe numbers must be used for each additional group of transmitters and receivers. Any Multiverse Vero acting as a receiver that is set on a universe that Is not being broadcast by a Multiverse Vero acting as a transmitter will show its universe in a yellow color. -
Page 11: User Interface Icons
User Interface Icons At the top of the main screen are several icons that indicate Multiverse Vero Transceiver 900MHz/2.4GHz status. These include: • “TX” or “RX” The Multiverse Vero Transceiver is designated as either a transmitter or receiver on the Menu Screen (see below for instructions). Each unit will display either “TX”... -
Page 12: Table 2: Show Ids And Show Keys
RDM Traffic The RDM Traffic setting determines whether RDM data is passed downstream of the Multiverse Vero Transceiver. It does not affect whether the Multiverse Vero Transceiver is detectable by devices upstream. It is recommended that RDM be turned off before production situations as many DMX devices do not correctly handle RDM data and may exhibit flickering or other undesired behavior. -
Page 13: Rdm Settings
Only needs to be set at the Transmitter. Default is On. RDM Settings The Multiverse Vero Transceiver can be configured with a compatible RDM controller, such as DMXcat®. All of the settings available through the menu can be set via RDM. Aside from settings, you can also view the Device Model, Manufacturer, Firmware Versions, RDM UID, RF Signal Quality, and quantity of active Tx slots. -
Page 14: Specifications
Specifications Table 4: Physical Characteristics Product Information Product Name Multiverse Vero Transceiver (900MHz/2.4GHz) Part Number 7400-5902 Maximum Concurrent Universes 1 per transmitter 2400 – 2480 MHz Frequency Range: 902 – 928 MHz Physical Specifications Height 165.0mm (6.5 in) Width 152.0mm (6.0 in) Depth 102.0mm (4.0 in) -
Page 15: Troubleshooting
Troubleshooting Table 5: Troubleshooting Guide Symptom Solution(s) Check that power input wiring is properly installed. Unit does not power up. Test power outlet with another device. Check that the Tx and Rx symbols on transmitters and receivers are solid. Fixtures connected to the receiver are not Check that SHoW ID and SHoW Key (and optional SHoW Key) responding.
