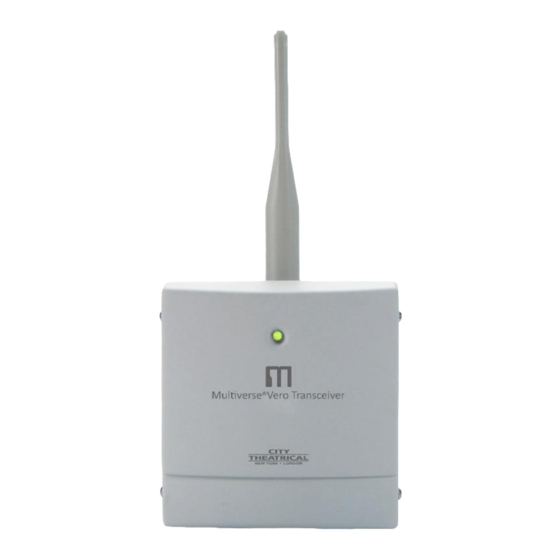

- Page 1 ® Multiverse Vero Transceiver 2.4GHz P/N 7400-5903 User’s Manual Rev 1.1 © 2021 City Theatrical, Inc. Multiverse Transmitters are covered by U.S. Patents #7,432,803 B2, #10,129,964 B1, and other patents pending. Made in USA...
-
Page 2: Table Of Contents
Table of Contents Compliance ............................3 Safety Notices ..........................3 Introduction ............................4 ® 7400-5903 Multiverse Vero Transceiver Features ..............4 Installation ............................5 Surface Mounting ........................6 Pipe Mounting .........................6 Face Panel ..........................7 User Interface Screen ......................8 User Interface Icons ......................10 RDM Settings ........................12 Updating Firmware ...................... -
Page 3: Compliance
Compliance FCC Compliance Statement (United States) This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Introduction
• User Selectable SHoW IDs City Theatrical has always produced wireless DMX products that allowed the user to select the optimum transmission method. Users may select full bandwidth hopping, hopping limited to a section of the spectrum (including areas of the spectrum outside of the Wi-Fi range), or adaptive hopping. -
Page 5: Installation
• Protocols supported: ANSI E1.11 DMX512-A; E1.20 RDM • Built-in Multiverse 2.4GHz Frequency Hopping Spread Spectrum radio • Compatible with all Multiverse and legacy SHoW DMX Neo products • User can select a single universe to receive • Four button user interface screen to set SHoW ID, universe, and other functions •... -
Page 6: Surface Mounting
Surface Mounting Mount the Mounting Bracket Base in the desired location using four #10 / M4 screws (by others, as above). Slide the mating Mounting Bracket (attached to the Unit) into the Mounting Bracket Base until the locking clip engages, and install the provided 8-18 x .500” SS Thread Forming Torx Button Head Security Screw in the hole on the left side of the Bracket assembly. -
Page 7: Face Panel
Slide the mating Mounting Bracket (attached to the Unit) into the Mounting Bracket Base until the locking clip engages, and install the retaining Screw. Cable or Conduit Entry The unit enclosure is provided with ½” NPT entry holes fitted with liquid-tight cable grips for use with outdoor use cables (by installer) for power and DMX connection. -
Page 8: User Interface Screen
Mains Wire Installation and Termination Install the mains cable or conduit in the entry provided as shown in Figure 2 on page 7. A liquid tight cable grip is provided for use with suitable outdoor rated cable with diameter range of .170”/4.3mm - .450”/11.4mm. - Page 9 Using A Spectrum Analyzer To Choose A SHoW ID It is a good practice to utilize a device such as City Theatrical’s P/N 5988 RadioScan™ Spectrum Analyzer to analyze the spectrum in the area of the broadcast. RadioScan is a 900MHz and 2.4GHz spectrum analyzer, utilizing a hardware dongle and accompanying software,...
-
Page 10: Table 1: Selecting Your Multiverse Show Id
If you do not have RadioScan, devices like smartphones often have simple Wi-Fi visualizers which can help guide you to a more open area of the 2.4GHz spectrum. Choosing a SHoW ID In a single universe system with a Multiverse Vero Transceiver used as a transmitter and one or more Multiverse Vero Transceivers used as receivers, simply choose a SHoW ID and enter that SHoW ID into the user interface of the transmitter and all receivers. -
Page 11: User Interface Icons
User Interface Icons At the top of the main screen are several icons that indicate Multiverse Vero Transceiver 2.4GHz status. These include: • “TX” or “RX” The Multiverse Vero Transceiver is designated as either a transmitter or receiver on the Menu Screen (see below for instructions). Each unit will display either “TX” (transmitter) or “RX”... -
Page 12: Table 2: Show Ids And Show Keys
The optional SHoW Key setting allows a user to enter a key to privatize their SHoW ID from another system on the same SHoW ID. SHoW IDs and SHoW Keys need to match in order for receivers and transmitters to talk to each other. Keeping your SHoW Key private will provide a level of security to your Multiverse system from unauthorized use. -
Page 13: Rdm Settings
Device Label to help with identification for configuration and troubleshooting. Updating Firmware Firmware updates and instructions for performing them are available on the product pages of the City Theatrical website. What’s Included Figure 3: What's Included Table 3: Included Item Descriptions and Part Numbers... -
Page 14: Specifications
Specifications Table 4: Physical Characteristics Product Information Product Name Multiverse Vero Transceiver (2.4GHz) Part Number 7400-5903 Maximum Concurrent Universes 1 per transmitter 2400 – 2480 MHz Frequency Range: Physical Specifications Height 165.0mm (6.5 in) Width 152.0mm (6.0 in) Depth 102.0mm (4.0 in) Weight 0.77kg (1.70 lbs) Antenna... -
Page 15: Troubleshooting
Troubleshooting Table 5: Troubleshooting Guide Symptom Solution(s) Check that power input wiring is properly installed. Unit does not power up. Test power outlet with another device. Check that the Tx and Rx symbols on transmitters and receivers are solid. Fixtures connected to the receiver are not Check that SHoW ID and SHoW Key (and optional SHoW Key) responding.
